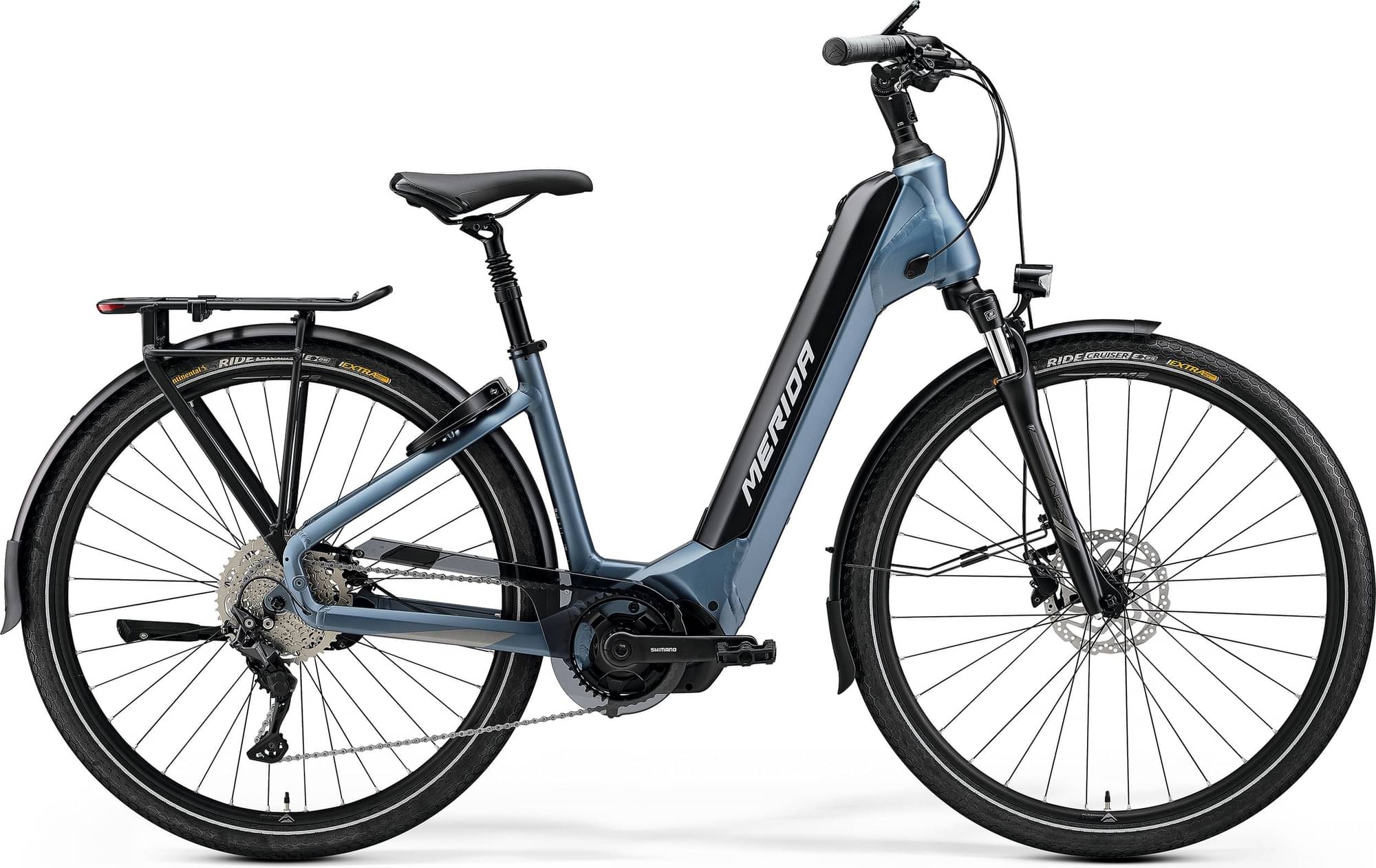

Merida eSPRESSO CITY 500 EQ (EP6) 2024
2024 E-bike
Estimate price |
4,810$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Deore -
Suspension Hardtail -
Motor Shimano 600W 85Nm mid-drive -
Battery Shimano EN806, 630Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eSPRESSO CITY LITE II, material: aluminium, 700x50C (with fender) max. wheelsize, 135x9mm axle standard, internal
Suspension Fork
Suntour NEX E25, Coil, 63mm suspension travel, 700x52C max wheelsize
Drivetrain
Rear Derailleur
Shimano Deore M5120, SGS
Shift Levers
Shimano Deore M4100
Cassette
Shimano M4100, 11-46 teeth, 10 speed
Crank
Shimano CR-ET600, 38 teeth
Bottom Bracket
BSA, threaded
Chain
KMC e10S EPT
Pedals
VP VPE-891
Wheels
Front Hub
Shimano TX505, 100x9mm width front hub, 32 spoke holes, Centerlock, 135x9mm width rear hub, 36 spoke holes, Centerlock
Rear Hub
Shimano TX505, 100x9mm width front hub, 32 spoke holes, Centerlock, 135x9mm width rear hub, 36 spoke holes, Centerlock
Rims
MERIDA COMP TK, 20mm inner width, material: aluminium
Tires
Front: Continental Ride Cruiser, 622-50, wire, reflecting line, Rear: Continental Ride Cruiser, 622-50, wire, reflecting line
Brakes
Brakes
Shimano MT-200, 2 piston
Cockpit
Stem
MERIDA EXPERT, material: aluminium, 31.8mm diameter, adjustable, 65 mm-XS/S/M, 90 mm-L/XL
Handlebar
MERIDA EXPERT, material: aluminium, 640mm width, 35mm rise
Headset
MERIDA-8252
Seat
Saddle
MERIDA EXPERT TK, V-mount
Seatpost
JD-SP79, 30.9mm diameter, 15mm setback, 40mm seatpost suspension travel
Motor & Battery
Motor
Shimano EP6, 85Nm
Battery
Shimano EN806, 630Wh
Charger
Shimano EC-E6002, 2A charging current
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM |
|---|---|---|
| Stack Reach Ratio | 1.699 mm | 1.657 mm |
| Front Center | 651 mm | 666 mm |
| Rake | 44 mm | 44 mm |
| Trail | 80 mm | 80 mm |
| Stack | 656 mm | 661 mm |
| Reach | 386 mm | 399 mm |
| Top Tube Length | 580 mm | 595 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° |
| Seat Tube Length | 380 mm | 430 mm |
| Head Tube Angle | 70 ° | 70 ° |
| Head Tube Length | 170 mm | 175 mm |
| Chainstay Length | 470 mm | 470 mm |
| Wheelbase | 1113 mm | 1128 mm |
| Bottom Bracket Drop | 65 mm | 65 mm |
| Standover Height | 413 mm | 413 mm |
| Wheels | 700 | 700 |
