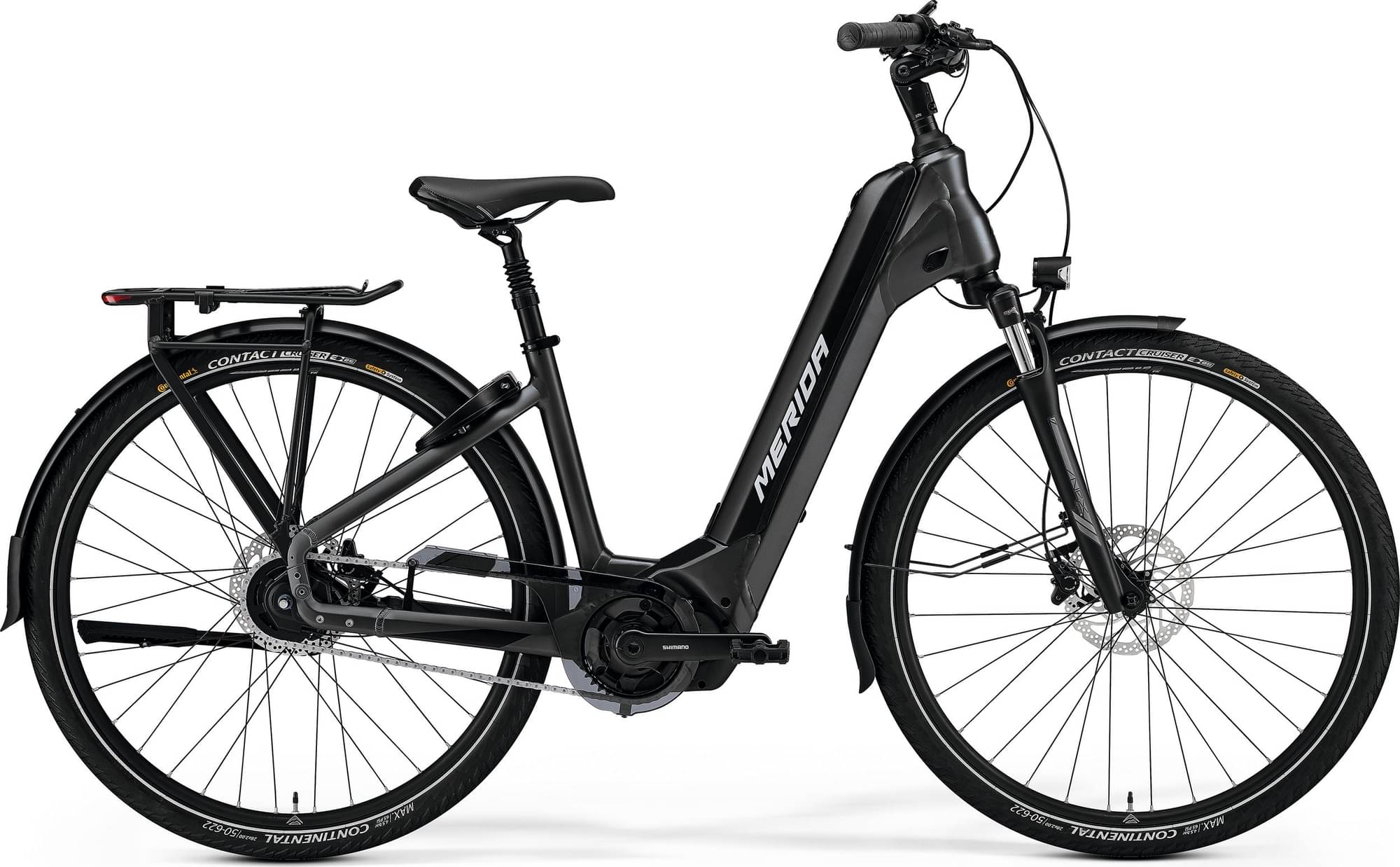

Merida eSPRESSO CITY 700 EQ 2024
2024 E-bike
Estimate price |
5,216$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Shimano -
Suspension Hardtail -
Motor Shimano 250W 60Nm mid-drive -
Battery Shimano E8036, 630Wh -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eSPRESSO CITY LITE II HG, material: aluminium, 700x50C max. wheelsize, 135x9mm axle standard, hub-gear dropout
Suspension Fork
SR Suntour NEX E25, Coil, 63mm suspension travel, 700x52C max wheelsize
Drivetrain
Shift Levers
Shimano SW-E6010-R
Cassette
Shimano CS-C7000, 30 teeth
Crank
Shimano CRE61, 38 teeth
Bottom Bracket
BSA, threaded
Chain
KMC Z1eHX EPT
Pedals
VP VPE-891
Wheels
Front Hub
Shimano M4050 / Shimano Nexus Inter-5E, 100x9mm width front hub, 32 spoke holes, Centerlock, 135x9mm width rear hub, 36 spoke holes, Centerlock
Rear Hub
Shimano M4050 / Shimano Nexus Inter-5E, 100x9mm width front hub, 32 spoke holes, Centerlock, 135x9mm width rear hub, 36 spoke holes, Centerlock
Rims
MERIDA COMP TK, 20mm inner width, material: aluminium
Tires
Front: Continental Contact Cruiser, 622-50, wire, reflecting line, Rear: Continental Contact Cruiser, 622-50, wire, reflecting line
Brakes
Brakes
Shimano MT402-3A, 2 piston
Cockpit
Stem
MERIDA EXPERT TK, material: aluminium, 31.8mm diameter, adjustable, 65 mm-XS/S/M, 90 mm-L/XL
Handlebar
MERIDA EXPERT TK, material: aluminium, 640mm width, 35mm rise
Headset
MERIDA 8152
Seat
Saddle
MERIDA EXPERT TK, V-mount
Seatpost
MERIDA EXPERT TK, 30.9mm diameter, 15mm setback, 40mm seatpost suspension travel
Motor & Battery
Motor
Shimano E6100, 60Nm
Battery
Shimano E8036, 630Wh
Charger
Shimano EC-E6002, 2A charging current
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.699 mm | 1.657 mm | 1.591 mm | 1.552 mm |
| Front Center | 651 mm | 666 mm | 687 mm | 707 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 80 mm | 80 mm | 80 mm | 80 mm |
| Stack | 656 mm | 661 mm | 665 mm | 675 mm |
| Reach | 386 mm | 399 mm | 418 mm | 435 mm |
| Top Tube Length | 580 mm | 595 mm | 615 mm | 635 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 170 mm | 175 mm | 180 mm | 190 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1113 mm | 1128 mm | 1149 mm | 1169 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 413 mm | 413 mm | 412 mm | 412 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
