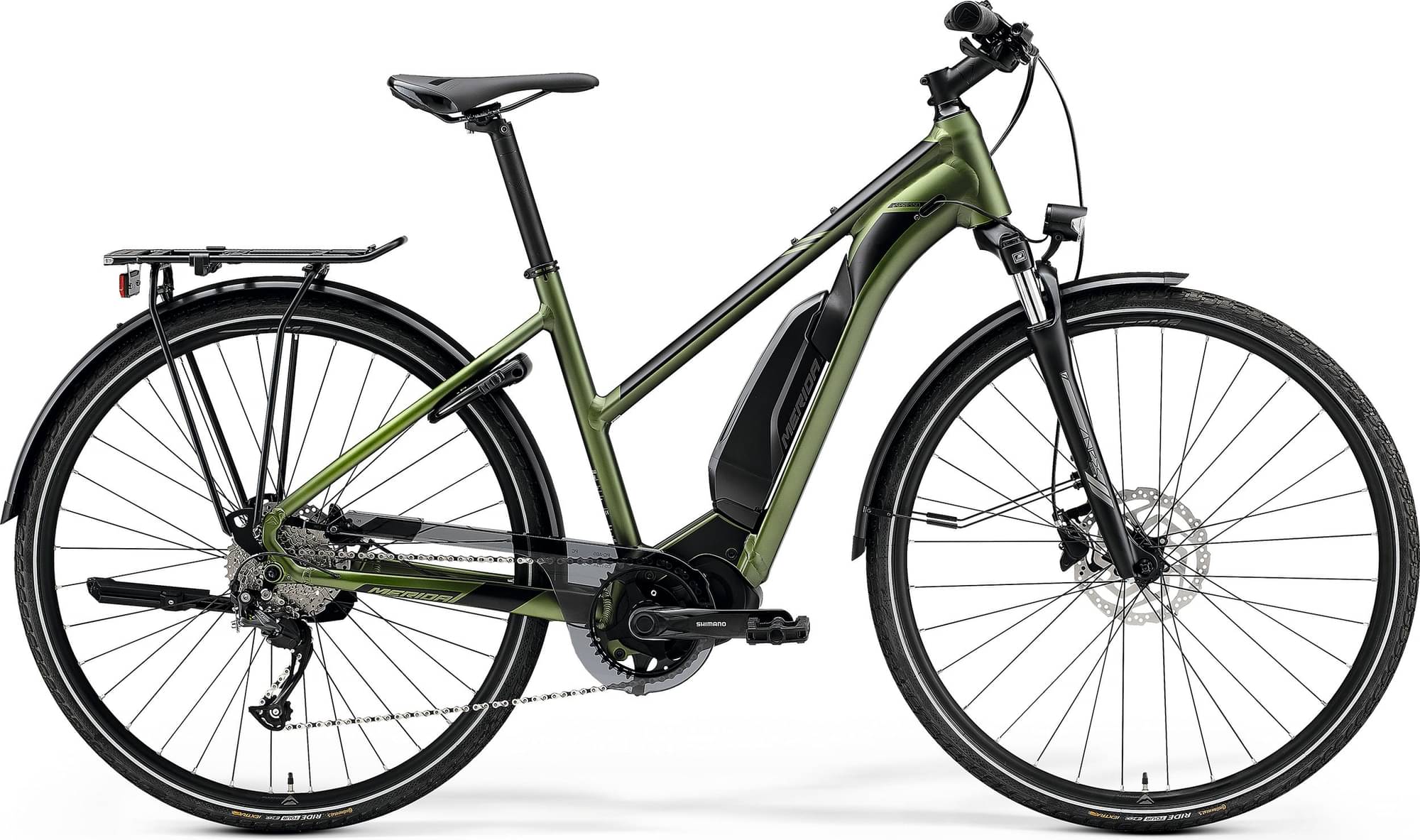

Merida eSPRESSO L 300 SE EQ 418Wh 2024
2024 E-bike
Estimate price |
3,078$
Weight | 22.04 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Altus -
Suspension Hardtail -
Motor Shimano 250W 40Nm mid-drive -
Battery Shimano E8014, 418Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
160cm - 172cm
MD
166cm - 179cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eSPRESSO L LITE, material: aluminium, 700C wheelsize, 142x12mm axle standard, MUK 37 Hanger
Suspension Fork
Suntour NEX-PM-DS, Coil, 63mm suspension travel, 700x48C max wheelsize
Drivetrain
Rear Derailleur
Shimano Altus M2000, SGS
Shift Levers
Shimano Altus rapidfire
Cassette
Shimano HG400, 11-36 teeth, 9 speed
Crank
Shimano CRE50, 38 teeth, Shimano FC-E5010
Bottom Bracket
BSA, threaded
Chain
KMC e9S
Pedals
VP VPE-891
Wheels
Front Hub
Shimano TX505 / Shimano MT400, 100x9mm width front hub, 32 spoke holes, Centerlock, 142x12mm width rear hub, 36 spoke holes, Centerlock
Rear Hub
Shimano TX505 / Shimano MT400, 100x9mm width front hub, 32 spoke holes, Centerlock, 142x12mm width rear hub, 36 spoke holes, Centerlock
Rims
MERIDA COMP TK, 20mm inner width, material: aluminium
Spokes
Black stainless
Tires
Front: Continental Ride Tour, 622x42", reflective stripe, Rear: Continental Ride Tour, 622x42", reflective stripe
Brakes
Brakes
Shimano MT200, 2 piston
Cockpit
Stem
MERIDA EXPERT CC, material: aluminium, 31.8mm diameter, 17° stem angle, 80 mm-XS/S, 90 mm-M, 100 mm-L, 110 mm-XL
Handlebar
MERIDA EXPERT TK, material: aluminium, 660mm width, 15mm rise
Headset
MERIDA 2346 Neck
Seat
Saddle
MERIDA EXPERT TK, V-mount
Seatpost
MERIDA EXPERT, material: aluminium, 30.9mm diameter, 15mm setback
Motor & Battery
Motor
Shimano E5000, 40Nm
Battery
Shimano E8014, 418Wh
Charger
Shimano EC-E6002, 2A charging current
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.629 mm | 1.632 mm | 1.645 mm |
| Front Center | 635 mm | 639 mm | 650 |
| Rake | 46 mm | 46 mm | 46 mm |
| Trail | 75 mm | 72 mm | 72 mm |
| Stack | 627 mm | 638 mm | 653 mm |
| Reach | 385 mm | 391 mm | 397 mm |
| Top Tube Length | 565 mm | 580 mm | 590 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 430 mm | 470 mm | 510 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71 ° |
| Head Tube Length | 130 mm | 140 mm | 155 mm |
| Chainstay Length | 475 mm | 475 mm | 475 mm |
| Wheelbase | 1101 mm | 1105 mm | 1116 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm |
| Standover Height | 627 mm | 627 mm | 631 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 160 cm | 166 cm |
| Rider Max Height | 164 cm | 172 cm | 179 cm |
