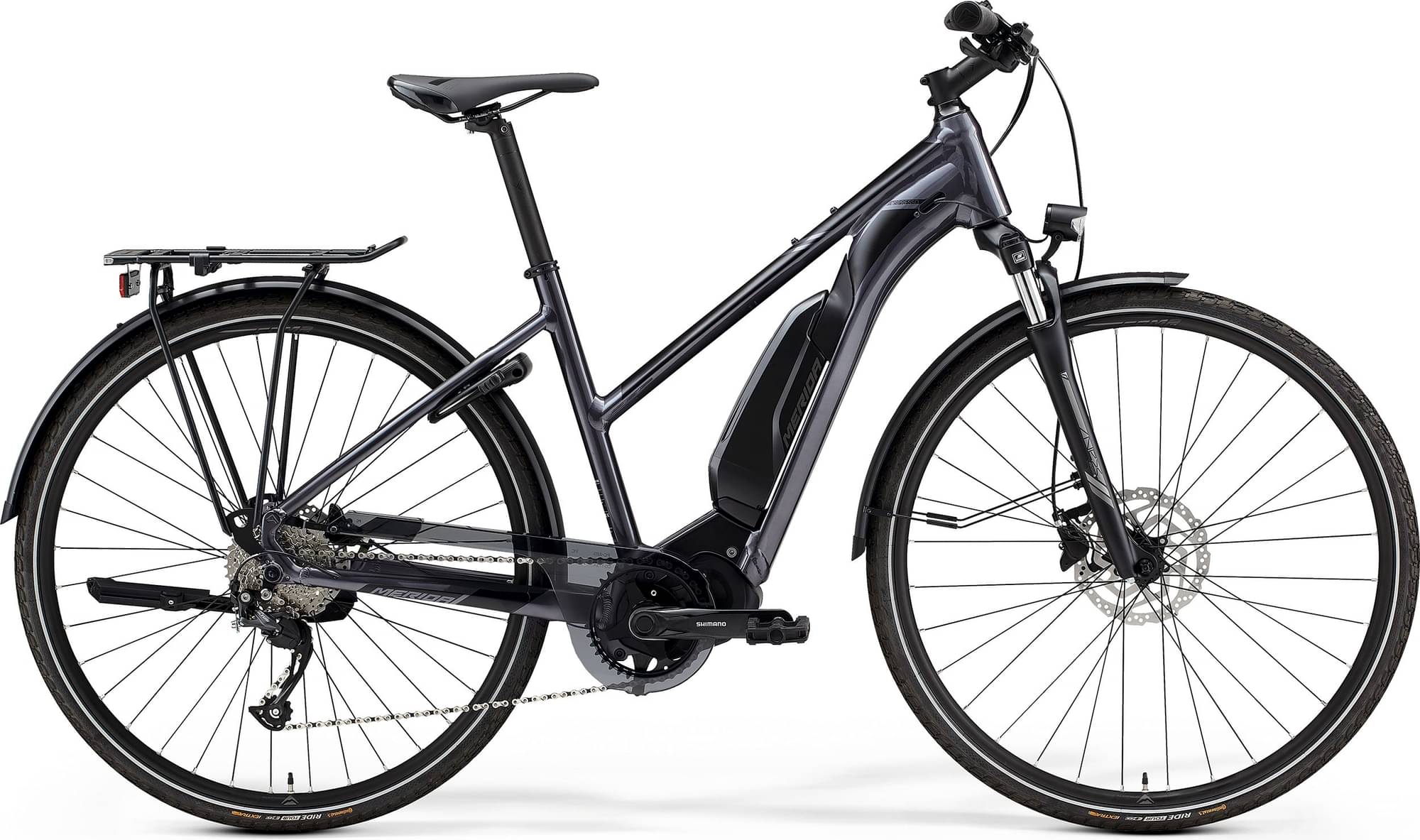

Merida eSPRESSO L 300 SE EQ 504Wh 2024
2024 E-bike
Estimate price |
2,764$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Altus -
Suspension Hardtail -
Motor Shimano 250W 40Nm mid-drive -
Battery Shimano E8010, 504Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eSPRESSO L LITE, material: aluminium, 700C wheelsize, 142x12mm axle standard, external, max. 504 Wh
Suspension Fork
Suntour NEX-PM-DS, Coil, 63mm suspension travel, 700x48C max wheelsize
Drivetrain
Rear Derailleur
Shimano Altus M2000, SGS
Shift Levers
Shimano Altus rapidfire
Cassette
Shimano HG400, 11-36 teeth, 9 speed
Crank
Shimano CRE50, 38 teeth, Shimano FC-E5010
Bottom Bracket
BSA, threaded
Chain
KMC e9S
Wheels
Front Hub
Shimano TX505, 100x9mm width front hub, 32 spoke holes, Centerlock
Rear Hub
Shimano MT400, 142x12mm width rear hub, 36 spoke holes, Centerlock
Rims
MERIDA COMP TK, 20mm inner width, material: aluminium
Spokes
Black stainless
Tires
Continental Ride Tour, 622x42", reflective stripe
Brakes
Brakes
Shimano MT200, 2 piston
Cockpit
Handlebar
MERIDA EXPERT TK, material: aluminium, 660mm width, 15mm rise
Headset
MERIDA 2346 Neck
Seat
Saddle
MERIDA EXPERT TK, V-mount
Seatpost
MERIDA EXPERT, material: aluminium, 30.9mm diameter, 15mm setback
Motor & Battery
Motor
Shimano E5000, 40Nm
Battery
Shimano E8010, 504Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.629 mm | 1.632 mm | 1.645 mm | 1.668 mm |
| Front Center | 635 mm | 639 mm | 650 | 658 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 75 mm | 72 mm | 72 mm | 68 mm |
| Stack | 627 mm | 638 mm | 653 mm | 674 mm |
| Reach | 385 mm | 391 mm | 397 mm | 404 mm |
| Top Tube Length | 565 mm | 580 mm | 590 mm | 610 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 430 mm | 470 mm | 510 mm | 550 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71 ° | 71.5 ° |
| Head Tube Length | 130 mm | 140 mm | 155 mm | 175 mm |
| Chainstay Length | 475 mm | 475 mm | 475 mm | 475 mm |
| Wheelbase | 1101 mm | 1105 mm | 1116 mm | 1124 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 627 mm | 627 mm | 631 mm | 635 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
