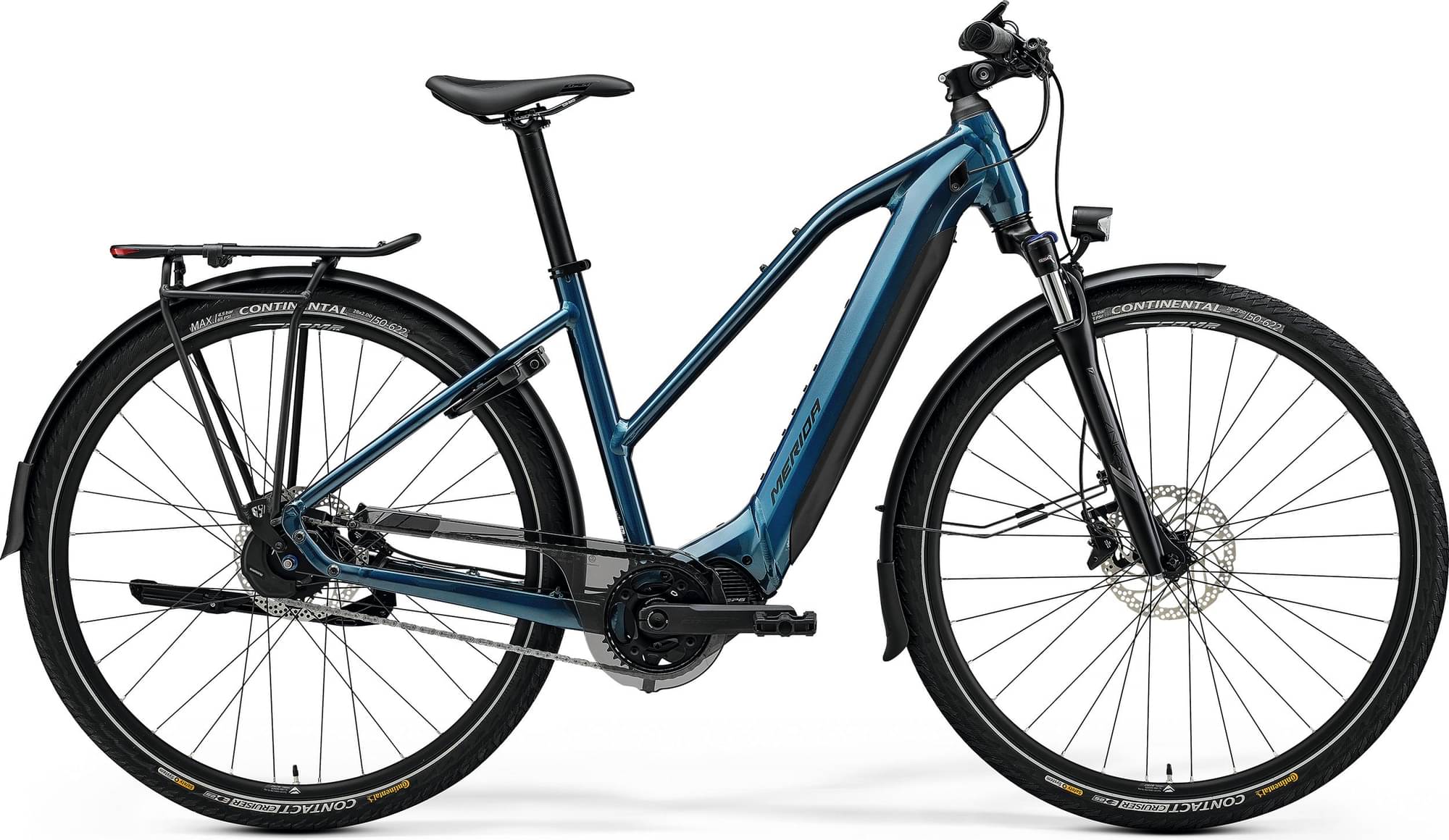

Merida eSPRESSO L 775 EQ 2025
2025 E-bike
Estimate price |
4,476$
Weight | 28.1 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Shimano -
Suspension Hardtail -
Motor Shimano 600W 85Nm mid-drive -
Battery Trendpower Internal Battery 750 Wh TPS-C04-35SD Gen 2, removeable -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eSPRESSO L LITE IV HG, material: aluminium, 700x50C (with fender) max. wheelsize, 142x12mm axle standard, intube
Suspension Fork
SR Suntour NEX E25, Coil, 63mm suspension travel, 700x52C max wheelsize
Drivetrain
Shift Levers
Shimano SW-EN600-R
Cassette
Shimano CS-C7000, 27 teeth
Crank
Samox NWP203, 38 teeth
Bottom Bracket
BSA, threaded
Chain
KMC Z1eHX EPT
Chain Guide
Sunnywheel SW-CG-173A
Pedals
VP VPE-891
Wheels
Front Hub
Shimano QC400, 100x9mm width front hub, 32 spoke holes, Centerlock
Rear Hub
Shimano Nexus Inter-5E, 135x9mm width rear hub, 32 spoke holes, Centerlock
Rims
MERIDA COMP TK, 20mm inner width, material: aluminium
Spokes
Black stainless
Tires
Continental Contact Cruiser, 622-50, wire, reflecting line
Brakes
Brakes
Shimano MT410, 2 piston
Cockpit
Handlebar
MERIDA EXPERT, material: aluminium, 660mm width, 15mm rise
Headset
MERIDA-8156
Seat
Saddle
MERIDA EXPERT TK II
Seatpost
MERIDA EXPERT CC, material: aluminium, 34.9mm diameter, 0mm setback
Motor & Battery
Motor
Shimano EP6, 85Nm
Battery
Trendpower Internal Battery 750 Wh TPS-C04-35SD Gen 2, removeable
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.565 mm | 1.583 mm | 1.594 mm | 1.613 mm |
| Front Center | 677 mm | 676 mm | 687 mm | 696 mm |
| Rake | 44 mm | 44 mm | 44 mm | 43 mm |
| Trail | 87 mm | 84 mm | 84 mm | 81 mm |
| Stack | 640 mm | 649 mm | 663 mm | 684 mm |
| Reach | 409 mm | 410 mm | 416 mm | 424 mm |
| Top Tube Length | 580 mm | 590 mm | 600 mm | 620 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74.5 ° | 74 ° |
| Seat Tube Length | 430 mm | 470 mm | 510 mm | 550 mm |
| Head Tube Angle | 69 ° | 69.5 ° | 69.5 ° | 70 ° |
| Head Tube Length | 133 mm | 140 mm | 155 mm | 175 mm |
| Chainstay Length | 478 mm | 478 mm | 478 mm | 478 mm |
| Wheelbase | 1145 mm | 1144 mm | 1155 mm | 1164 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 593 mm | 610 mm | 631 mm | 650 |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
