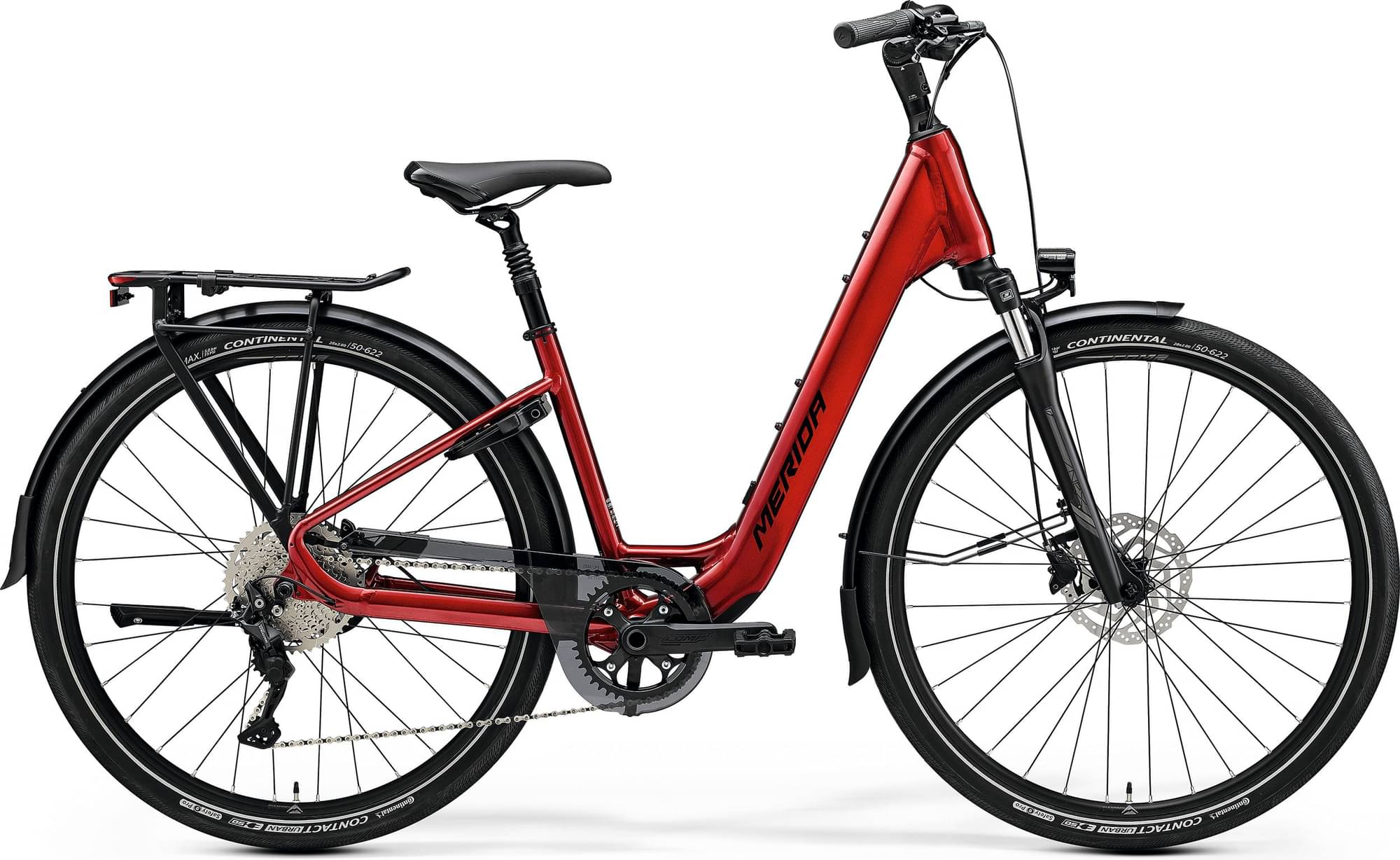

Merida eSPRESSO URBAN 300 EQ 2024
2024 E-bike
Estimate price |
3,047$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Deore -
Suspension Hardtail -
Motor MAHLE 40Nm hub-drive -
Battery Mahle B1-D, 250Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eSPRESSO URBAN LITE
Suspension Fork
SR Suntour NEX E25, Coil, 63mm suspension travel, 700x52C max wheelsize
Drivetrain
Rear Derailleur
Shimano Deore M5120, SGS
Shift Levers
Shimano Deore M4100
Cassette
Shimano CS-M4100, 11-46 teeth, 10 speed
Crank
MERIDA COMP TK, 42 teeth, XS-165mm, S/M/L-170mm, XL-175mm
Chain
KMC e10s
Wheels
Front Hub
Shimano TX505, 100x9mm width front hub, 32 spoke holes, Centerlock
Rims
MERIDA COMP TK, 20mm inner width, material: aluminium
Spokes
Black stainless
Tires
Continental Contact Urban, 622-50, wire, reflecting line
Brakes
Brakes
Shimano MT200, 2 piston
Brake Levers
attached to brake
Cockpit
Handlebar
MERIDA EXPERT TK, material: aluminium, 640mm width, 35mm rise
Seat
Saddle
MERIDA EXPERT TK, V-mount
Seatpost
MERIDA EXPERT TK, 30.9mm diameter, 15mm setback, 40mm seatpost suspension travel
Motor & Battery
Motor
Mahle X35+ Hub Engine, 40Nm
Battery
Mahle B1-D, 250Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.754 mm | 1.704 mm | 1.666 mm | 1.639 mm | 1.616 mm |
| Front Center | 650 | 665 mm | 675 mm | 691 mm | 706 mm |
| Rake | 44 mm | 43 mm | 44 mm | 44 mm | 44 mm |
| Trail | 87 mm | 88 mm | 84 mm | 84 mm | 84 mm |
| Stack | 656 mm | 661 mm | 668 mm | 677 mm | 687 mm |
| Reach | 374 mm | 388 mm | 401 mm | 413 mm | 425 mm |
| Top Tube Length | 575 mm | 590 mm | 605 mm | 620 mm | 635 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm | 530 mm | 580 mm |
| Head Tube Angle | 69 ° | 69 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 170 mm | 175 mm | 180 mm | 190 mm | 200 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1111 mm | 1126 mm | 1136 mm | 1152 mm | 1167 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
