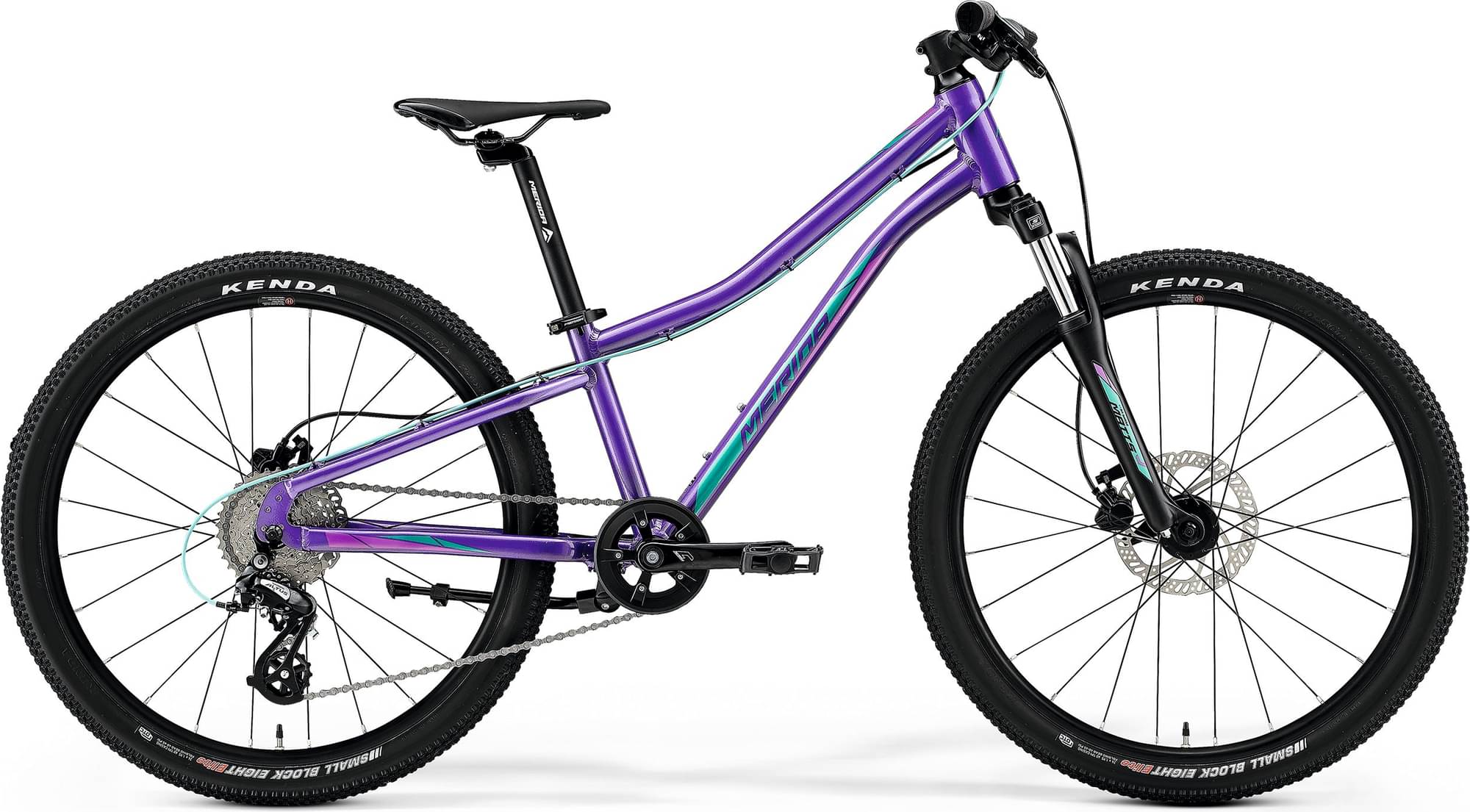

Merida MATTS J. 24 Disc 2024
2024 Youth
Estimate price |
457$
Weight | 10.4 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Fork Suntour XCT -
Groupset Altus -
Suspension Hardtail -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
MATTS J. 24+
Suspension Fork
Suntour XCT-JR DS
Drivetrain
Rear Derailleur
Shimano RD-M310
Shift Levers
Altus
Cassette
Sunrace CSM668, 11-34 teeth, 8 speed
Crank
MERIDA EXPERT JR, 28 teeth, 140 mm
Bottom Bracket
Bearing cartridge
Chain
Sunrace M84
Pedals
Marwi SP-202
Wheels
Front Hub
Joytech D761DSE, 100x9mm width front hub, 24 spoke holes
Rear Hub
Joytech D762TSE, 135x9mm width rear hub, 24 spoke holes
Rims
MERIDA JR 24+, material: aluminium
Spokes
Black steel
Tires
Kenda Small Block Eight, 24x1.9", wire
Brakes
Brakes
Tektro HD-M275, 2 piston
Cockpit
Handlebar
MERIDA EXPERT JR, material: aluminium, 620mm width, 0mm rise
Headset
VP Z104AE
Seat
Saddle
MERIDA EXPERT JR
Seatpost
MERIDA CC, material: aluminium, 27.2mm diameter, 15mm setback
Fit data
Geometry
