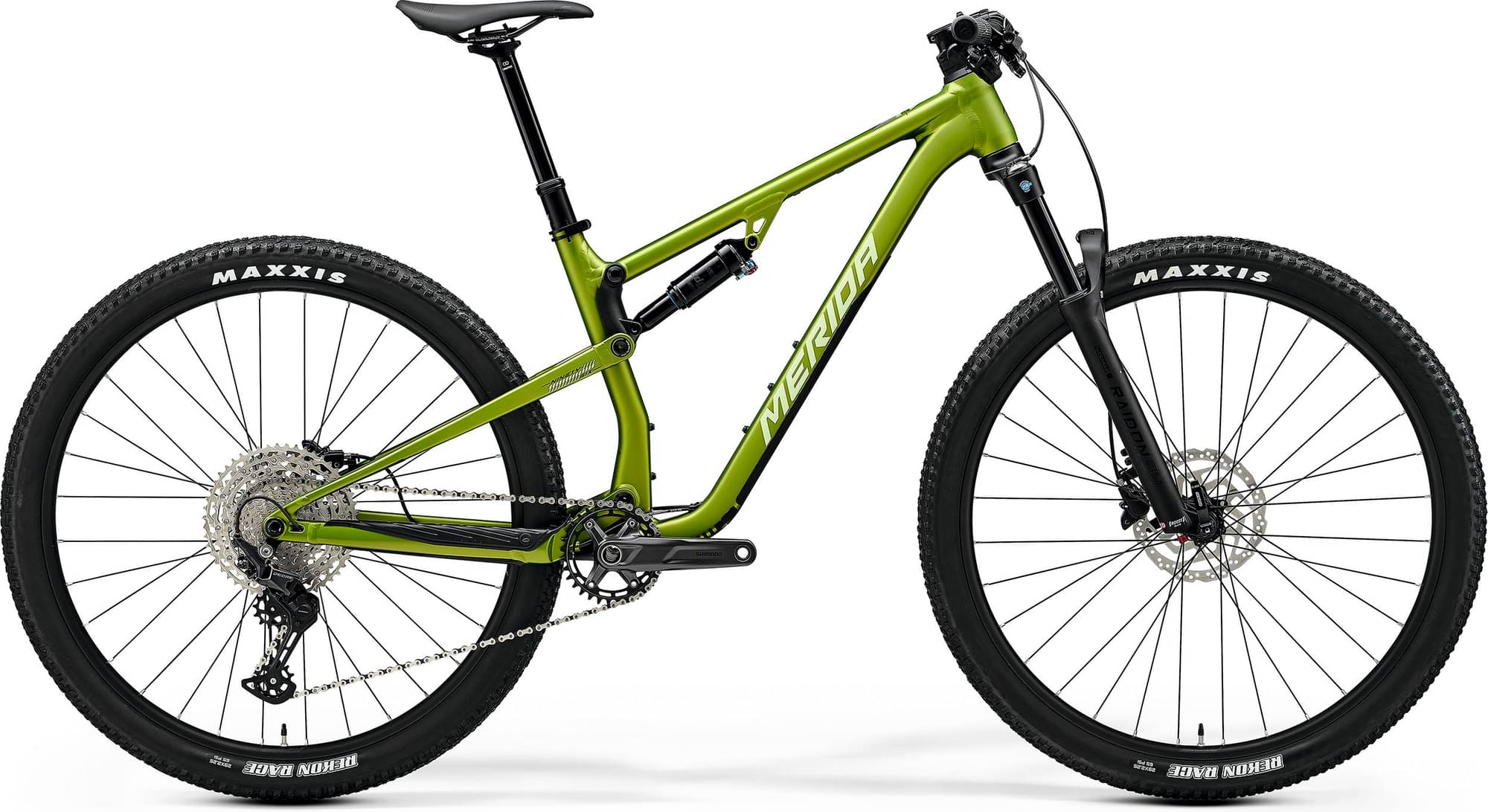

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 120mm -
Travel Rear 110mm -
Fork Suntour RAIDON
-
Groupset Deore -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
NINETY-SIX LITE V, 110mm suspension travel, material: aluminium, 29x2.5" max. wheelsize, 148x12mm axle standard, BSA bottom bracket standard
Suspension Fork
Suntour Raidon34 R-2CR, Air, 120mm suspension travel, Tapered, Remote lockout, 46mm fork offset, 29x2.4" max wheelsize
Rear Shock
SR Suntour Edge LOR, lockout
Drivetrain
Rear Derailleur
Shimano Deore M6100, SGS
Shift Levers
Shimano Deore M6100
Cassette
Shimano Deore M6100, 10-51 teeth, 12 speed
Crank
Shimano Deore MT512, 32 teeth, XSHORT, SHORT, MID: 170mm
Bottom Bracket
Shimano BB-MT-501, 24mm
Chain
KMC X12
Wheels
Front Hub
Shimano TC500-B / Shimano TC500-MS-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 32 spoke holes, Centerlock
Rear Hub
Shimano TC500-B / Shimano TC500-MS-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 32 spoke holes, Centerlock
Rims
MERIDA COMP CC II, 25mm inner width, material: aluminium, tubeless ready
Spokes
Black stainless
Tires
Maxxis Rekon Race, 29x2.25", wire
Brakes
Brakes
Shimano MT200, 2 piston
Cockpit
Handlebar
MERIDA EXPERT CC, material: aluminium, 760mm width, flat
Headset
Acros ICR MERIDA EXTERNAL neck, Upper and lower IPS sealing
Seat
Saddle
MERIDA COMP SL, 25% recycled material, V-mount
Seatpost
MERIDA EXPERT TR II, 34.9mm diameter, 0mm setback, XSHORT/SHORT: 150mm travel seatpost - MID: 170mm travel seatpost - LONG, XLONG: 200mm travel seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | X-Short | Short | Mid | Long | X-Long |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.321 mm | 1.274 mm | 1.232 mm | 1.192 mm |
| Bottom Bracket Height | 327 mm | 327 mm | 327 mm | 327 mm | 327 mm |
| Front Center | 718 mm | 740 mm | 762 mm | 784 mm | 806 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 110 mm | 110 mm | 110 mm | 110 mm | 110 mm |
| Stack | 596 mm | 601 mm | 605 mm | 610 mm | 614 mm |
| Reach | 435 mm | 455 mm | 475 mm | 495 mm | 515 mm |
| Seat Tube Angle | 79.5 ° | 79.5 ° | 79.5 ° | 79.5 ° | 79.5 ° |
| Seat Tube Length | 400 mm | 410 mm | 425 mm | 445 mm | 470 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 95 mm | 100 mm | 105 mm | 110 mm | 115 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1149 mm | 1171 mm | 1193 mm | 1215 mm | 1237 mm |
| Bottom Bracket Drop | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Standover Height | 741 mm | 743 mm | 745 mm | 747 mm | 749 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
