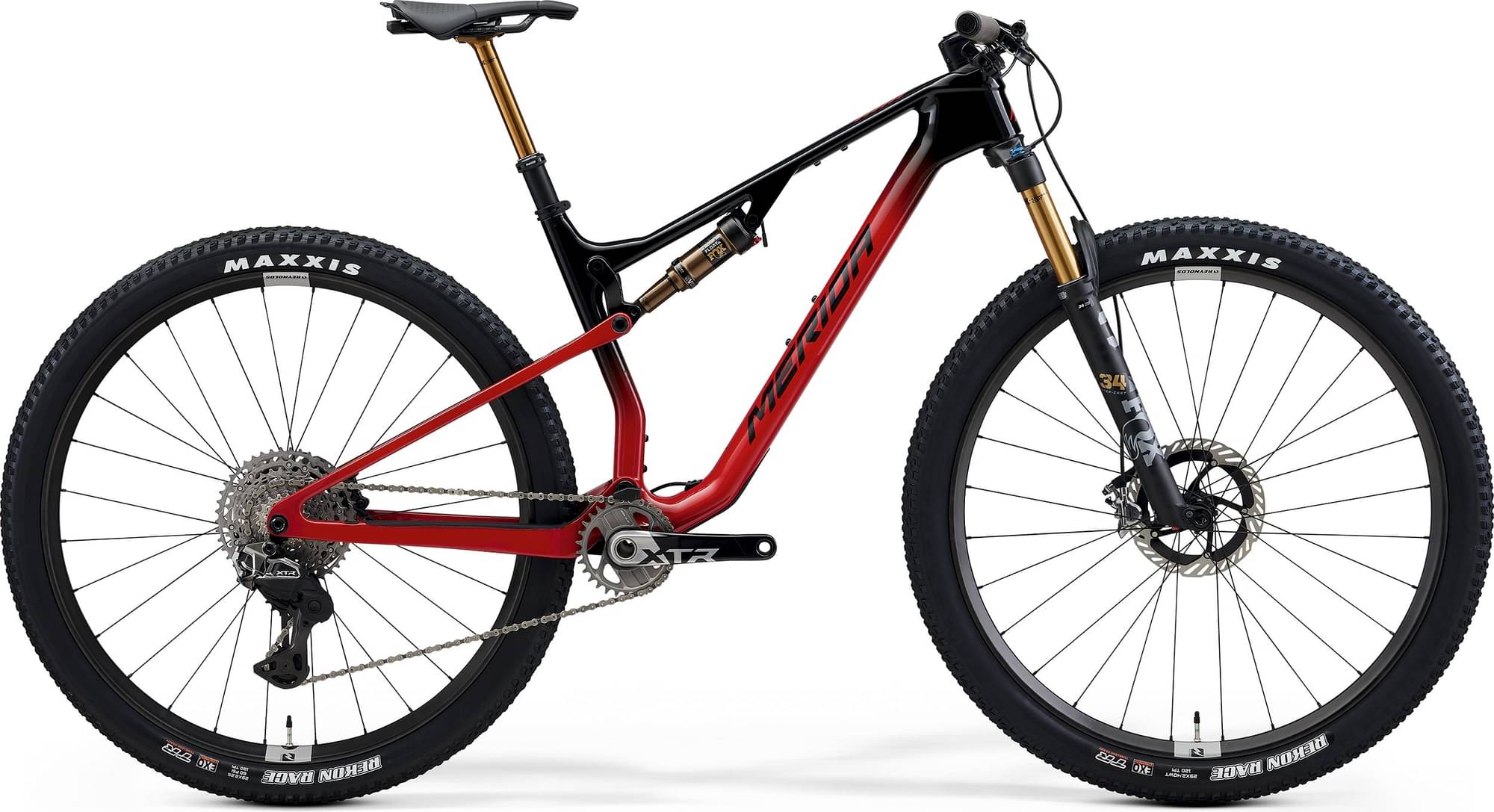

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 120mm -
Travel Rear 100mm -
Fork Fox Factory Float 34
-
Groupset Dura-Ace Di2, XTR -
Suspension Full -
Drivetrain Electronic -
Brakes Shimano XTR Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
NINETY-SIX CF5 III, 100mm suspension travel, material: carbon, 29x2.35" max. wheelsize, 148x12mm axle standard, BSA bottom bracket standard
Suspension Fork
Fox 34 Float SC Factory Grip SL, Air, 120mm suspension travel, Tapered, 3Pos Remote lockout, 44mm fork offset, 29x2.4" max. wheelsize
Rear Shock
Fox Float SL Factory, Large Volume aircan, 3 Pos PTL remote lockout
Drivetrain
Rear Derailleur
Shimano XTR M9250, wireless, Shadow+ GS
Shift Levers
Shimano XTR M9250, wireless
Cassette
Shimano XTR M9200, 9-45t
Crank
Shimano XTR M9200, 30 teeth, 170 mm (S), 175 mm-M up
Bottom Bracket
Shimano SM-BB93, BSA, 24mm axle
Chain
Shimano XTR M9100
Wheels
Rims
Reynolds Expert TR 309 XC, 110x15mm width front hub, 148x12mm width rear hub, 30mm inner width, Centerlock, Shimano MS 12 Speed, material: carbon, Tubeless ready (tubeless tape and valves included), Lifetime warranty
Tires
Maxxis Rekon Race, 29x2.4" WT, tubeless ready, 3C MaxxTerra EXO
Brakes
Brakes
Shimano XTR M9220, 2 piston
Cockpit
Handlebar
FSA SL-K 1-piece cockpit, material: carbon, 760mm width,: 7°
Headset
Acros ICR MERIDA INTEGRATED neck, Upper and lower IPS sealing
Seat
Saddle
Prologo Scratch M5 PAS Nack, V-mount adapter, incl. MERIDA minitool
Seatpost
Fox Transfer, 30.9mm diameter, 0mm setback, S/M/L/XL: 150mm travel seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.417 mm | 1.352 mm | 1.315 mm | 1.279 mm |
| Bottom Bracket Height | 338 mm | 338 mm | 338 mm | 338 mm |
| Front Center | 703 mm | 723 mm | 747 mm | 770 mm |
| Rake | 42 mm | 42 mm | 41 mm | 41 mm |
| Trail | 113 mm | 113 mm | 114 mm | 114 mm |
| Stack | 595 mm | 595 mm | 605 mm | 614 mm |
| Reach | 420 mm | 440 mm | 460 mm | 480 mm |
| Top Tube Length | 581 mm | 601 mm | 624 mm | 648 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 74.5 ° |
| Seat Tube Length | 400 mm | 440 mm | 470 mm | 500 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 95 mm | 95 mm | 105 mm | 115 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1136 mm | 1156 mm | 1180 mm | 1203 mm |
| Bottom Bracket Drop | 36 mm | 36 mm | 36 mm | 36 mm |
| Standover Height | 740 mm | 741 mm | 747 mm | 749 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
