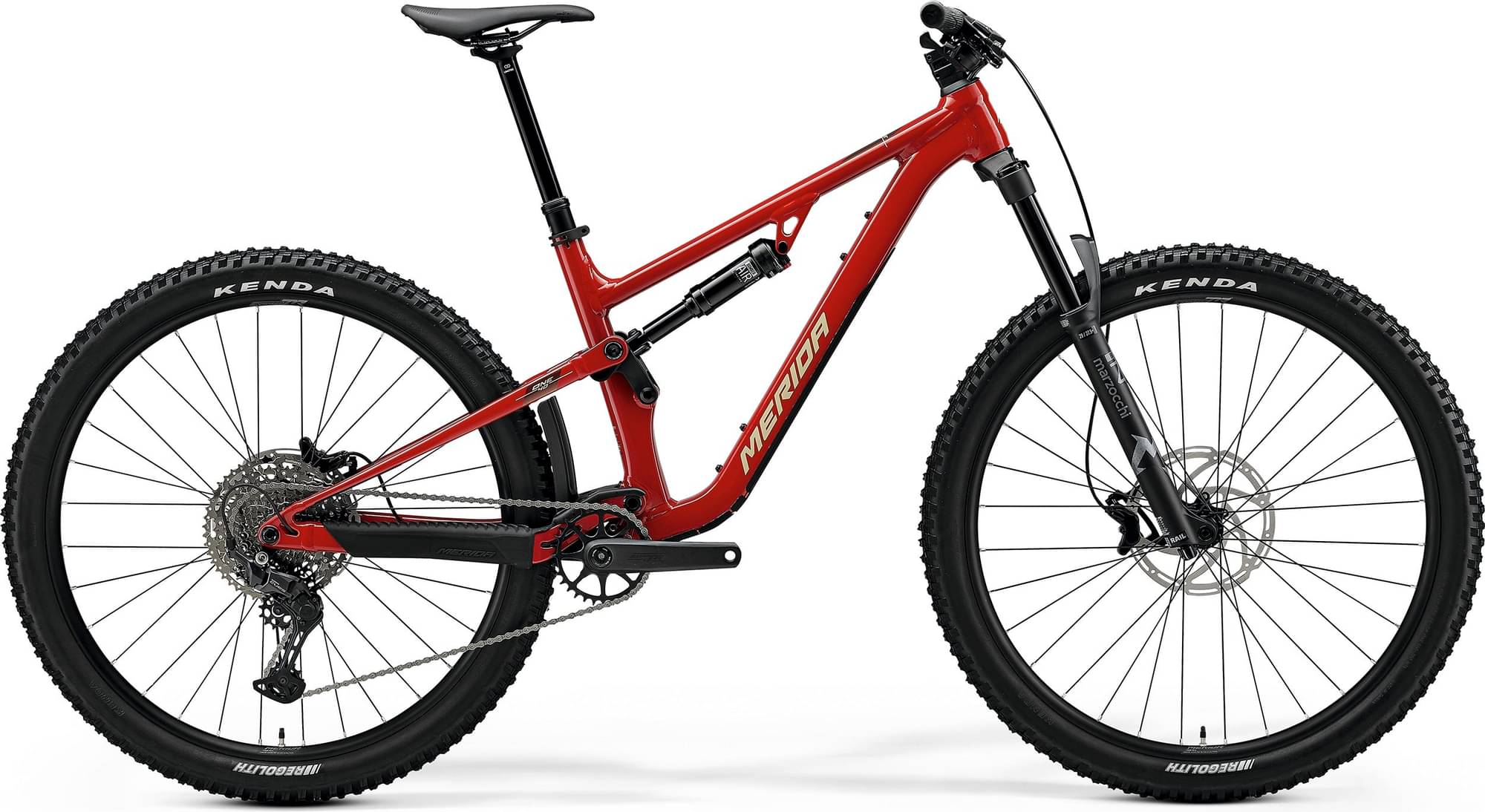

Merida ONE-FORTY 400 2025
2025 Mountain
Estimate price |
2,382$
Weight | 16.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 150mm -
Travel Rear 143mm -
Fork Marzocchi Bomber Z2
-
Groupset CUES -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ONE-FORTY LITE III, 143mm suspension travel 29", material: aluminium, 29x2.5" max. wheelsize, 148x12mm axle standard, BSA bottom bracket standard
Suspension Fork
Marzocchi Z2, Air, 150mm suspension travel, Tapered, 44mm fork offset, 29x2.6" max. wheelsize
Rear Shock
Marzocchi Bomber inline
Drivetrain
Rear Derailleur
Shimano CUES U6000, GS
Shift Levers
Shimano CUES U6000
Cassette
Shimano LG400, 11-50 teeth, 11 speed
Crank
MERIDA Expert TR II, 32 teeth, 170 mm for all sizes
Bottom Bracket
BSA, 73mm, threaded
Chain
KMC xGlide
Wheels
Front Hub
Shimano TC500-B, 110x15mm width front hub, 32 spoke holes, Centerlock
Rear Hub
Shimano TC500-HM-B, 148x12mm width rear hub, 32 spoke holes, Centerlock
Rims
MERIDA COMP TR II, 110x15mm width front hub, 148x12mm width rear hub, 28mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), 29"
Spokes
Black stainless
Tires
Maxxis Minion DHF, 29x2.5", wire
Brakes
Brakes
Tektro Gemini M535, 4 piston
Cockpit
Handlebar
MERIDA EXPERT TR II, material: aluminium, 780mm width, XS/S 18mm rise, M/L/XL 30mm rise
Headset
Acros ICR MERIDA EXTERNAL neck, Upper and lower IPS sealing
Seat
Saddle
MERIDA COMP SL, 25% recycled material, V-mount, incl. MERIDA minitool
Seatpost
MERIDA EXPERT TR II, 34.9mm diameter, 0mm setback, XSHORT/SHORT: 150mm travel seatpost - MID: 170mm travel seatpost - LONG: 200mm travel seatpost - XLONG: 230mm travel seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | X-Short | Short | Mid | Long | X-Long |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.425 mm | 1.34 mm | 1.265 mm | 1.21 mm | 1.176 mm |
| Bottom Bracket Height | 339 mm | 339 mm | 339 mm | 339 mm | 339 mm |
| Front Center | 742 mm | 769 mm | 797 mm | 830 mm | 863 mm |
| Rake | 44 mm | 44 mm | 45 mm | 44 mm | 45 mm |
| Trail | 126 mm | 126 mm | 125 mm | 126 mm | 125 mm |
| Stack | 607 mm | 607 mm | 607 mm | 616 mm | 629 mm |
| Reach | 426 mm | 453 mm | 480 mm | 509 mm | 535 mm |
| Top Tube Length | 532 mm | 559 mm | 586 mm | 618 mm | 649 mm |
| Seat Tube Angle | 80 ° | 80 ° | 80 ° | 80 ° | 80 ° |
| Seat Tube Length | 400 mm | 410 mm | 425 mm | 445 mm | 470 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 95 mm | 95 mm | 95 mm | 105 mm | 120 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1177 mm | 1204 mm | 1232 mm | 1265 mm | 1298 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 730 mm | 735 mm | 738 mm | 735 mm | 730 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
