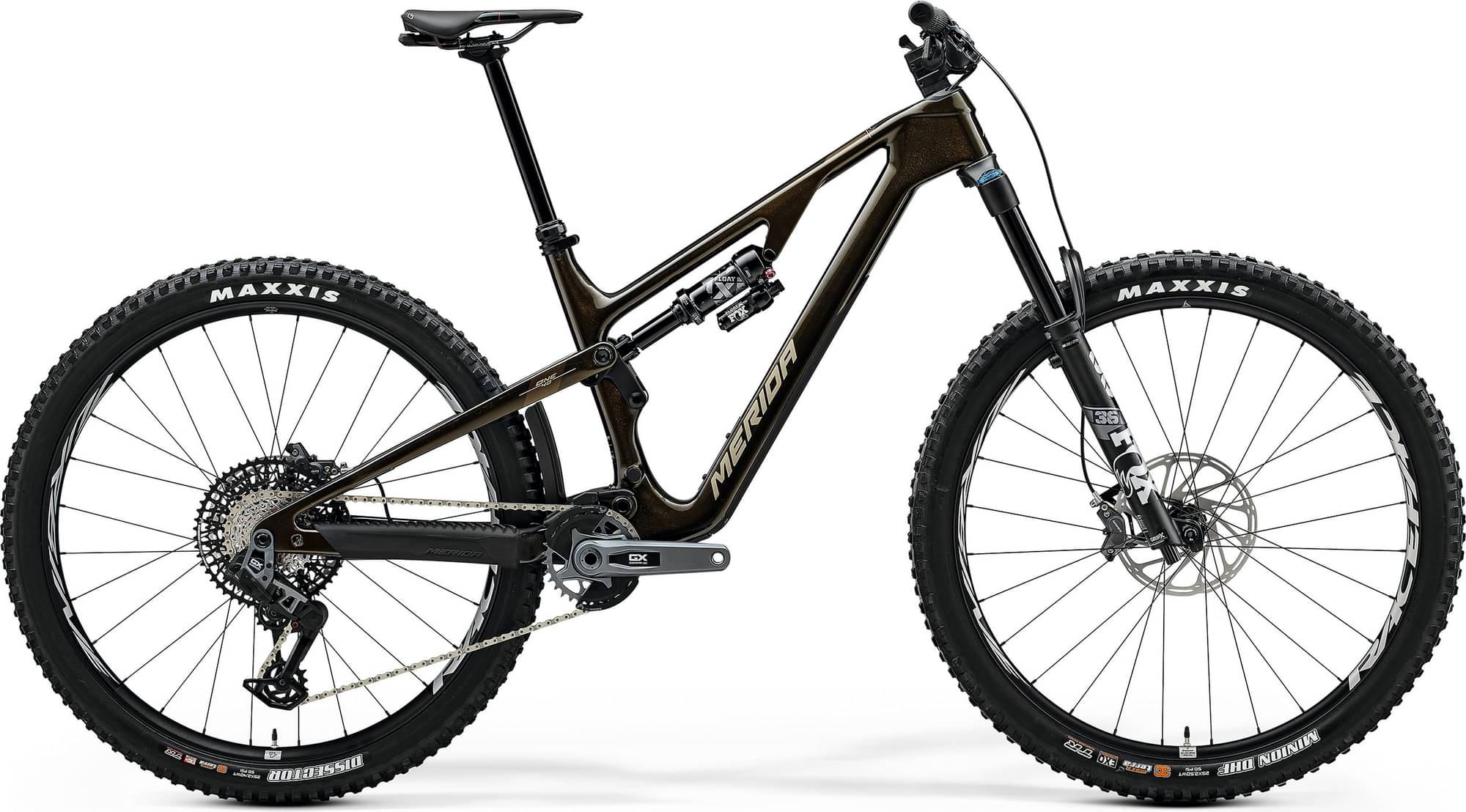

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 150mm -
Travel Rear 143mm -
Fork Fox Performance Elite Float 36
-
Groupset X01 Eagle AXS, GX Eagle Transmission -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ONE-FORTY CF4 III, 143mm suspension travel 29", material: carbon, 29x2.5" max. wheelsize, 148x12mm axle standard, BSA bottom bracket standard
Suspension Fork
Fox 36 Float Performance Elite, Air, 150mm suspension travel, Tapered, 44mm fork offset, 29x2.6" max. wheelsize
Rear Shock
Fox Float X Performance Elite, adjustable low speed compression, platform
Drivetrain
Rear Derailleur
SRAM GX Eagle Transmission AXS, wireless, T-Type
Shift Levers
SRAM AXS POD Controller
Cassette
SRAM GX Eagle Transmission, 10-52 teeth, 12 speed
Crank
SRAM GX Eagle Transmission, 32 teeth, 2 guards, 170 mm for all sizes
Bottom Bracket
SRAM DUB BSA 73 MTB Wide
Chain
SRAM GX Eagle Transmission, Flattop
Wheels
Rims
Race Face Turbine R30, 110x15mm width front hub, 148x12mm width rear hub, 30mm inner width, 6 bolt, SRAM XD, material: aluminium, Tubeless ready (tubeless tape and valves included), Lifetime warranty
Tires
Maxxis Minion DHF, 29x2.5", fold, TR, EXO+, 3C MaxxSpeed
Brakes
Brakes
SRAM Code Bronze stealth, 4 piston
Cockpit
Handlebar
Race Face ERA, material: carbon, 780mm width, XSHORT/SHORT 20mm rise, MID/LONG/XLONG 40mm rise
Headset
Acros ICR MERIDA INTEGRATED neck, Upper and lower IPS sealing
Seat
Saddle
Proxim Nembo, V-mount adapter, incl. MERIDA minitool
Seatpost
MERIDA TEAM TR II, 34.9mm diameter, 10mm setback, all sizes 30-230mm travel seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | X-Short | Short | Mid | Long | X-Long |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.425 mm | 1.34 mm | 1.265 mm | 1.21 mm | 1.176 mm |
| Bottom Bracket Height | 320 mm | 320 mm | 320 mm | 320 mm | 320 mm |
| Front Center | 742 mm | 769 mm | 797 mm | 830 mm | 863 mm |
| Rake | 44 mm | 44 mm | 45 mm | 44 mm | 45 mm |
| Trail | 117 mm | 117 mm | 116 mm | 117 mm | 116 mm |
| Stack | 607 mm | 607 mm | 607 mm | 616 mm | 629 mm |
| Reach | 426 mm | 453 mm | 480 mm | 509 mm | 535 mm |
| Top Tube Length | 532 mm | 559 mm | 586 mm | 618 mm | 649 mm |
| Seat Tube Angle | 80 ° | 80 ° | 80 ° | 80 ° | 80 ° |
| Seat Tube Length | 400 mm | 410 mm | 425 mm | 445 mm | 470 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 95 mm | 95 mm | 95 mm | 105 mm | 120 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1177 mm | 1204 mm | 1232 mm | 1265 mm | 1298 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 722 mm | 725 mm | 732 mm | 731 mm | 771 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
