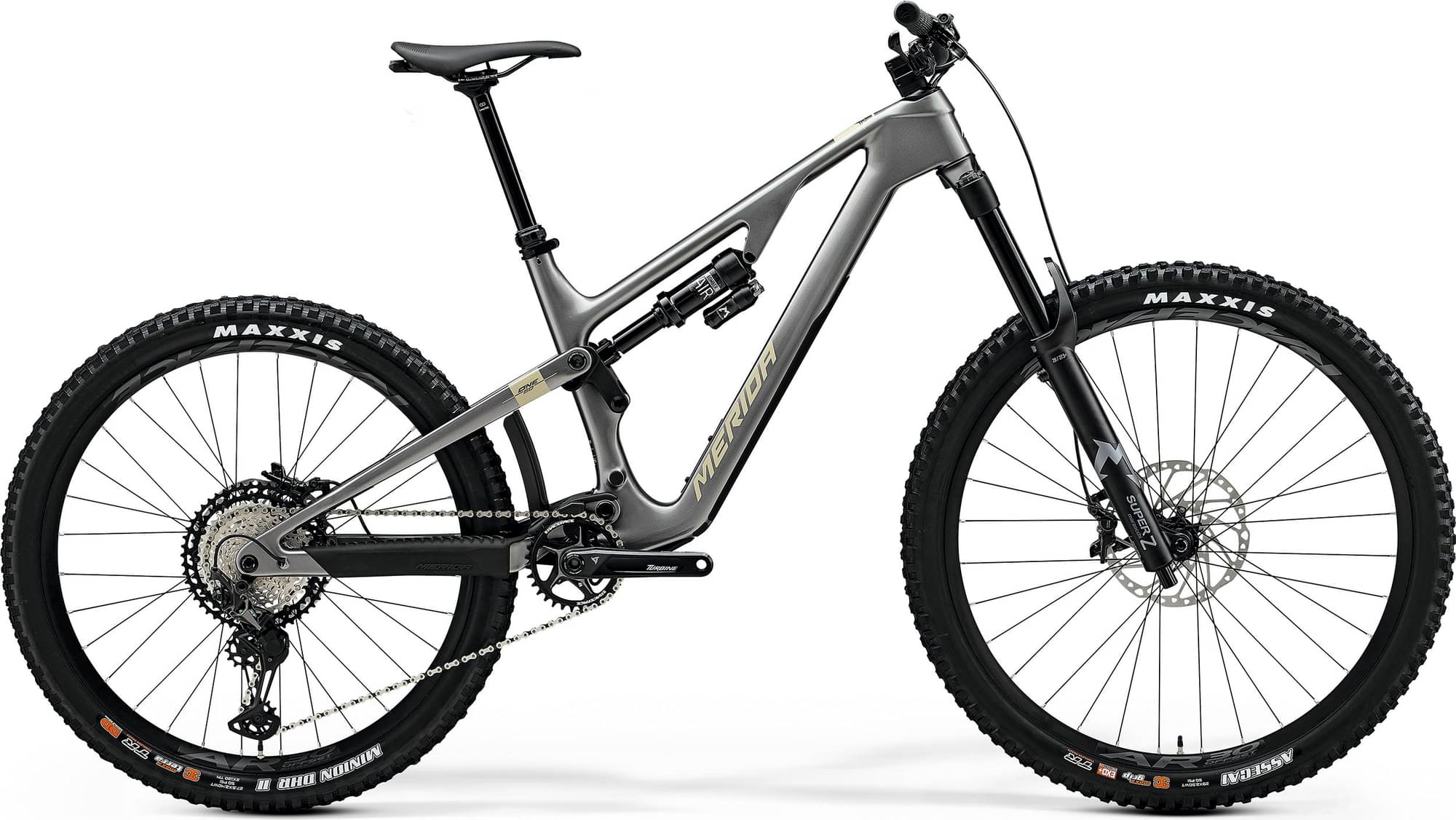

Merida ONE-SIXTY 7000 2025
2025 Mountain
Estimate price |
4,693$
Weight | 15.54 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 170mm -
Travel Rear 171mm -
Fork Marzocchi
-
Groupset XT, Deore -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ONE-SIXTY CF4 III, 171mm suspension travel mullet / 162mm suspension travel 29", material: carbon, 29x2.5" max. wheelsize, 148x12mm axle standard, BSA bottom bracket standard
Suspension Fork
Marzocchi SuperZ, Air, 170mm suspension travel, Tapered, 44mm fork offset, 29x2.6" max. wheelsize
Rear Shock
Marzocchi Bomber Air, platform
Drivetrain
Rear Derailleur
Shimano XT M8100, SGS
Shift Levers
Shimano SL-MT500-IL
Cassette
Shimano XT M8100, 10-51 teeth, 12 speed
Crank
Race Face Turbine, 32 teeth, 170 mm for all sizes
Bottom Bracket
BSA, 73mm, threaded
Chain
KMC X12
Chain Guide
MERIDA EXPERT TR ISCG05
Wheels
Front Hub
Shimano TC500-B, 110x15mm width front hub, 32 spoke holes, Centerlock
Rear Hub
Shimano TC600-MS-B, 148x12mm width rear hub, 32 spoke holes, Centerlock
Rims
Race Face AR30, 30mm inner width, Tubeless ready (tubeless tape and valves not included), rear 27.5" up to Size M / L & XL rear 29"
Spokes
Double Butted Black stainless
Tires
Maxxis Assegai, 29x2.5", fold, TR EXO+ 3C MaxxGrip
Brakes
Brakes
Shimano XT M8120, 4 piston
Cockpit
Handlebar
MERIDA EXPERT TR II, material: aluminium, 780mm width, XS/S 18mm rise, M/L/XL 30mm rise
Headset
Acros ICR MERIDA INTEGRATED neck, Upper and lower IPS sealing
Seat
Saddle
MERIDA COMP SL, 25% recycled material, V-mount, incl. MERIDA minitool
Seatpost
MERIDA TEAM TR II, 34.9mm diameter, 0mm setback, all sizes 30-230mm travel seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | Mid | Long | X-Long |
|---|---|---|---|
| Stack Reach Ratio | 1.309 mm | 1.255 mm | 1.215 mm |
| Front Center | 808 mm | 839 mm | 872 mm |
| Rake | 37 mm | 44 mm | 44 mm |
| Trail | 141 mm | 134 mm | 134 mm |
| Stack | 615 mm | 625 mm | 638 mm |
| Reach | 470 mm | 498 mm | 525 mm |
| Top Tube Length | 589 mm | 621 mm | 653 mm |
| Seat Tube Angle | 79 ° | 79 ° | 79 ° |
| Seat Tube Length | 425 mm | 445 mm | 470 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 95 mm | 105 mm | 120 mm |
| Chainstay Length | 434 mm | 437 mm | 437 mm |
| Wheelbase | 1242 mm | 1275 mm | 1308 mm |
| Bottom Bracket Drop | 7 mm | 27 mm | 27 mm |
| Standover Height | 737 mm | 736 mm | 776 mm |
| Wheels | 29" | 29" | 29" |
