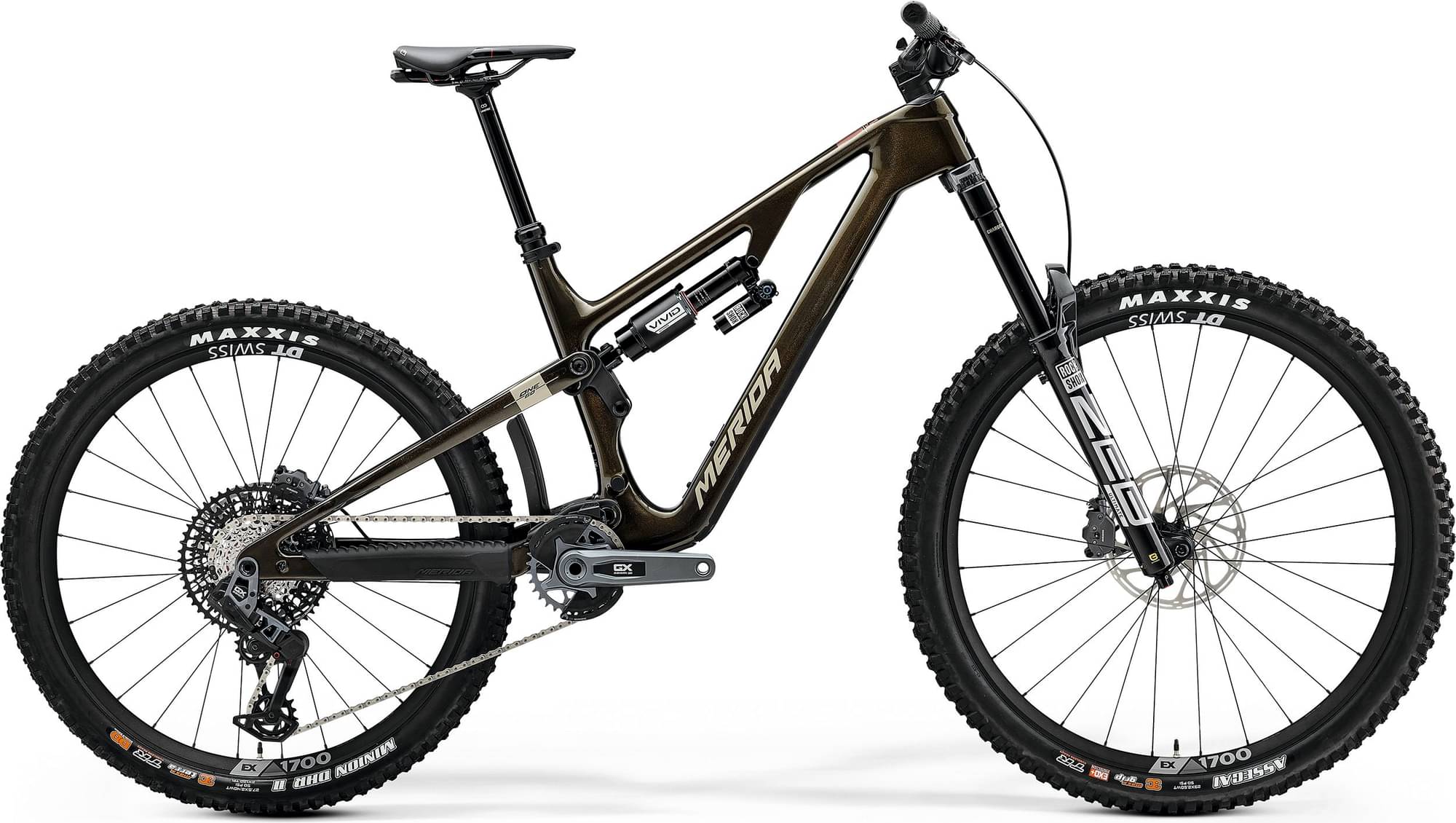

Merida ONE-SIXTY 8000 2025
2025 Mountain
Estimate price |
6,931$
Weight | 15.4 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 170mm -
Travel Rear 171mm -
Fork RockShox ZEB Ultimate
-
Groupset X01 Eagle AXS, GX Eagle Transmission -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ONE-SIXTY CF4 III, 171mm suspension travel mullet / 162mm suspension travel 29", material: carbon, 29x2.5" max. wheelsize, 148x12mm axle standard, BSA bottom bracket standard
Suspension Fork
Rock Shox Zeb Ultimate, Air, 170mm suspension travel, Tapered, 42mm fork offset, 29x2.8" max. wheelsize
Rear Shock
Rock Shox Vivid Ultimate, platform, adjustable low speed compression
Drivetrain
Rear Derailleur
SRAM GX Eagle Transmission AXS, wireless, T-Type
Shift Levers
SRAM AXS POD Controller
Cassette
SRAM GX Eagle Transmission, 10-52 teeth, 12 speed
Crank
SRAM GX Eagle Transmission, 32 teeth, 2 guards, 170 mm for all sizes
Bottom Bracket
BSA, 73mm, threaded
Chain
SRAM GX Eagle Transmission, Flattop
Chain Guide
MRP IO for SRAM Transmission
Wheels
Rims
DT Swiss EX1700, 110x15mm width front hub, 148x12mm width rear hub, 30mm inner width, Centerlock, SRAM XD, material: aluminium, Tubeless ready (tubeless tape and valves included)
Tires
Maxxis Assegai, 29x2.5", fold, TR EXO+ 3C MaxxGrip
Brakes
Brakes
SRAM Maven Bronze, 4 piston
Cockpit
Handlebar
MERIDA EXPERT TR II, material: aluminium, 780mm width, XS/S 18mm rise, M/L/XL 30mm rise
Headset
Acros ICR MERIDA INTEGRATED neck, Upper and lower IPS sealing
Seat
Saddle
Proxim Nembo, V-mount adapter, incl. MERIDA minitool
Seatpost
MERIDA TEAM TR II, 34.9mm diameter, 0mm setback, all sizes 30-230mm travel seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | X-Short | Short | Mid | Long | X-Long |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.482 mm | 1.391 mm | 1.309 mm | 1.255 mm | 1.215 mm |
| Bottom Bracket Height | 348 mm | 348 mm | 348 mm | 328 mm | 328 mm |
| Front Center | 754 mm | 781 mm | 808 mm | 839 mm | 872 mm |
| Rake | 38 mm | 38 mm | 37 mm | 44 mm | 44 mm |
| Trail | 131 mm | 131 mm | 132 mm | 124 mm | 124 mm |
| Stack | 615 mm | 615 mm | 615 mm | 625 mm | 638 mm |
| Reach | 415 mm | 442 mm | 470 mm | 498 mm | 525 mm |
| Top Tube Length | 535 mm | 562 mm | 589 mm | 621 mm | 653 mm |
| Seat Tube Angle | 79 ° | 79 ° | 79 ° | 79 ° | 79 ° |
| Seat Tube Length | 400 mm | 410 mm | 425 mm | 445 mm | 470 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 95 mm | 95 mm | 95 mm | 105 mm | 120 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 437 mm | 437 mm |
| Wheelbase | 1188 mm | 1215 mm | 1242 mm | 1275 mm | 1308 mm |
| Bottom Bracket Drop | 7 mm | 7 mm | 7 mm | 27 mm | 27 mm |
| Standover Height | 727 mm | 730 mm | 737 mm | 736 mm | 776 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
