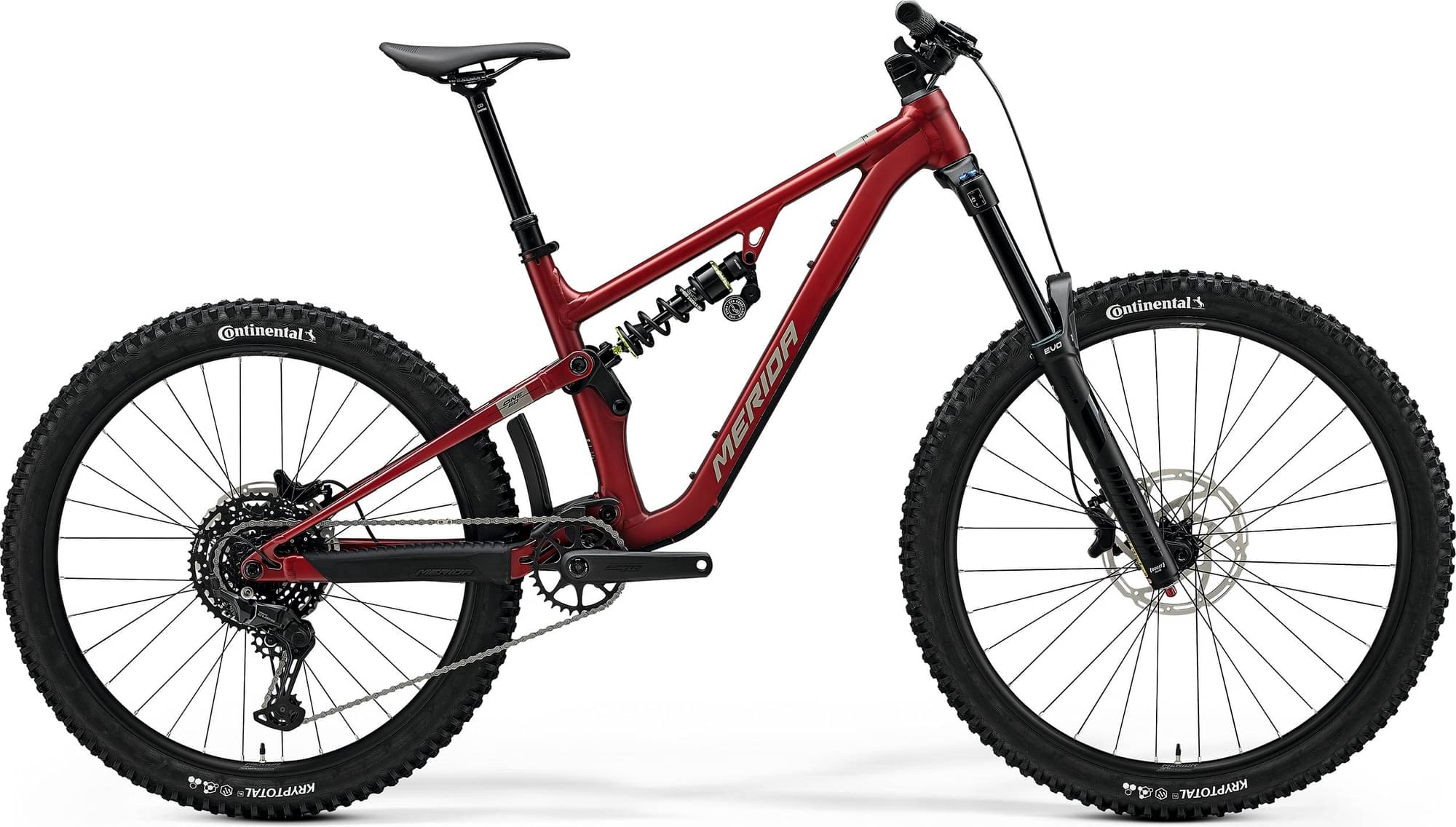

Merida ONE-SIXTY FR 400 2025
2025 Mountain
Estimate price |
3,794$
Weight | 17.7 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 180mm -
Travel Rear 171mm -
Fork Suntour DUROLUX
-
Groupset CUES -
Suspension Full -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ONE-SIXTY LITE III, 171mm suspension travel mullet, material: aluminium, 29x2.5" max. wheelsize, 148x12mm axle standard, BSA bottom bracket standard
Suspension Fork
SR Suntour Durolux 38 RC, Air, 180mm suspension travel, Tapered, xxmm fork offset, 29x2.60" max. wheelsize
Rear Shock
DVO Jade X D3, coil, spring rate: XS 300 lbs, S 350 lbs, M: 400 lbs, L: 450, XL: 500
Drivetrain
Rear Derailleur
Shimano CUES U6000, GS
Shift Levers
Shimano SL-MT500-L / Shimano CUES U6000
Cassette
Shimano LG300, 11-48 teeth, 10 speed
Crank
MERIDA Expert TR II, 32 teeth, 165 mm for all sizes
Bottom Bracket
Samox BSA 24mm EB2401
Chain
KMC xGlide
Chain Guide
MERIDA EXPERT TR ISCG05
Wheels
Front Hub
Shimano TC500-B / Shimano TC500-HM-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 32 spoke holes, Centerlock
Rear Hub
Shimano TC500-B / Shimano TC500-HM-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 32 spoke holes, Centerlock
Rims
MERIDA COMP TR II, 110x15mm width front hub, 148x12mm width rear hub, 28mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), front 29", rear 27.5"
Spokes
Double Butted Black stainless
Tires
Front: Continental Kryptotal-F, 29x2.4", fold, TR, Enduro casing, Soft Compund, Rear: Continental Kryptotal-R, 27.5x2.4", fold, TR, Enduro Casing, Soft Compound
Brakes
Brakes
Tektro Gemini HD-M535, 4 piston
Cockpit
Stem
MERIDA EXPERT eTRII, material: aluminium, 35mm diameter, 0? stem angle, 40 mm
Handlebar
MERIDA EXPERT TR II, material: aluminium, 780mm width, XS/S 18mm rise, M/L/XL 30mm rise
Headset
Acros ICR MERIDA EXTERNAL neck, Upper and lower IPS sealing
Seat
Saddle
MERIDA COMP SL, 25% recycled material, V-mount
Seatpost
MERIDA EXPERT TR II, 34.9mm diameter, 0mm setback, XSHORT/SHORT: 150mm travel seatpost - MID: 170mm travel seatpost - LONG: 200mm travel seatpost - XLONG: 230mm travel seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | X-Short | Short | Mid | Long | X-Long |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.482 mm | 1.391 mm | 1.309 mm | 1.255 mm | 1.215 mm |
| Front Center | 754 mm | 781 mm | 808 mm | 839 mm | 872 mm |
| Rake | 38 mm | 38 mm | 37 mm | 44 mm | 44 mm |
| Trail | 140 mm | 140 mm | 141 mm | 134 mm | 134 mm |
| Stack | 615 mm | 615 mm | 615 mm | 625 mm | 638 mm |
| Reach | 415 mm | 442 mm | 470 mm | 498 mm | 525 mm |
| Top Tube Length | 535 mm | 562 mm | 589 mm | 621 mm | 653 mm |
| Seat Tube Angle | 79 ° | 79 ° | 79 ° | 79 ° | 79 ° |
| Seat Tube Length | 400 mm | 410 mm | 425 mm | 445 mm | 470 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 95 mm | 95 mm | 95 mm | 105 mm | 120 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 437 mm | 437 mm |
| Wheelbase | 1188 mm | 1215 mm | 1242 mm | 1275 mm | 1308 mm |
| Bottom Bracket Drop | 7 mm | 7 mm | 7 mm | 27 mm | 27 mm |
| Standover Height | 735 mm | 740 mm | 743 mm | 740 mm | 735 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
