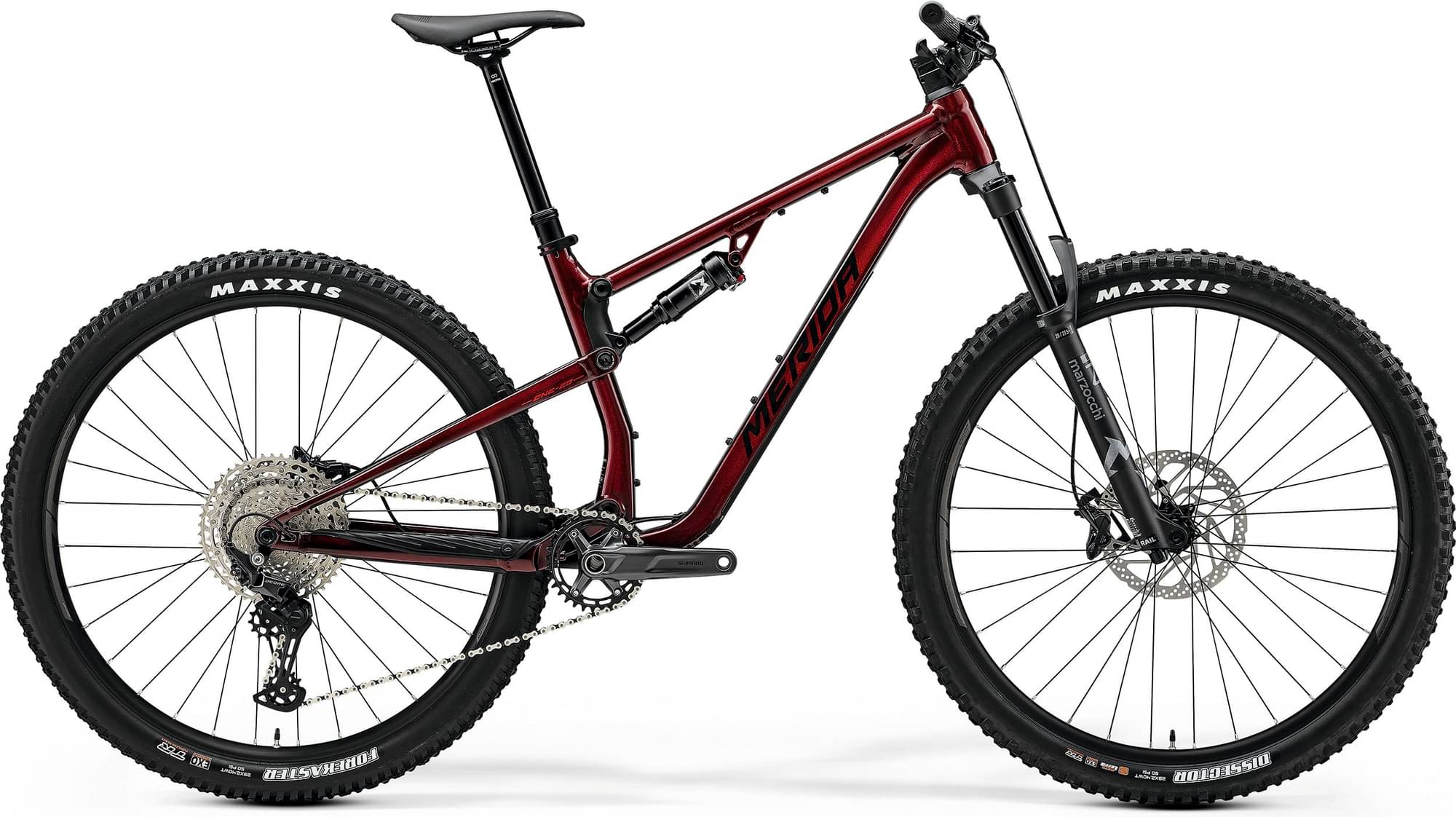

Merida ONE-TWENTY 600 2025
2025 Mountain
Estimate price |
2,454$
Weight | 15.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 130mm -
Travel Rear 130mm -
Fork Marzocchi Bomber Z2
-
Groupset Deore -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ONE-TWENTY LITE V, 130mm suspension travel, material: aluminium, 29x2.5" max. wheelsize, 148x12mm axle standard, BSA bottom bracket standard
Suspension Fork
Marzocchi Bomber Z2, Air, 130mm suspension travel, Tapered, 44mm fork offset, platform, 29x2.6" max wheelsize
Rear Shock
Marzocchi Bomber inline, lockout
Drivetrain
Rear Derailleur
Shimano Deore M6100, SGS
Shift Levers
Shimano SL-MT500-IL
Cassette
Shimano Deore M6100, 10-51 teeth, 12 speed
Crank
Shimano Deore MT512, 32 teeth, 170 mm for all sizes
Bottom Bracket
BSA, 73mm, threaded
Chain
KMC X12
Wheels
Front Hub
Shimano TC500-B, 110x15mm width front hub, 32 spoke holes, Centerlock
Rear Hub
Shimano TC500-MS-B, 148x12mm width rear hub, 32 spoke holes, Centerlock
Rims
MERIDA COMP TR, 29mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included)
Spokes
Double Butted Black stainless
Tires
Maxxis Dissector, 29x2.4", fold, TR EXO 3C MaxxTerra
Brakes
Brakes
Shimano Deore M6120 / Shimano Deore M6100, 4 piston, 2 piston
Cockpit
Handlebar
MERIDA COMP TR, material: aluminium, 780mm width, 20mm rise
Headset
Acros ICR MERIDA EXTERNAL neck, Upper and lower IPS sealing
Seat
Saddle
MERIDA COMP SL, 25% recycled material, V-mount, incl. MERIDA minitool
Seatpost
MERIDA EXPERT TR II, 34.9mm diameter, 0mm setback, XSHORT/SHORT: 150mm travel seatpost - MID: 170mm travel seatpost - LONG, XLONG: 200mm travel seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | X-Short | Short | Mid | Long | X-Long |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.421 mm | 1.369 mm | 1.318 mm | 1.274 mm | 1.232 mm |
| Bottom Bracket Height | 334 mm | 334 mm | 334 mm | 334 mm | 334 mm |
| Front Center | 723 mm | 745 mm | 767 mm | 789 mm | 811 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 121 mm | 121 mm | 121 mm | 121 mm | 121 mm |
| Stack | 604 mm | 609 mm | 613 mm | 618 mm | 622 mm |
| Reach | 425 mm | 445 mm | 465 mm | 485 mm | 505 mm |
| Top Tube Length | 548 mm | 569 mm | 590 mm | 611 mm | 632 mm |
| Seat Tube Angle | 78.5 ° | 78.5 ° | 78.5 ° | 78.5 ° | 78.5 ° |
| Seat Tube Length | 400 mm | 410 mm | 425 mm | 445 mm | 470 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 95 mm | 100 mm | 105 mm | 110 mm | 115 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1155 mm | 1177 mm | 1199 mm | 1221 mm | 1243 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Standover Height | 748 mm | 750 mm | 752 mm | 754 mm | 756 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
