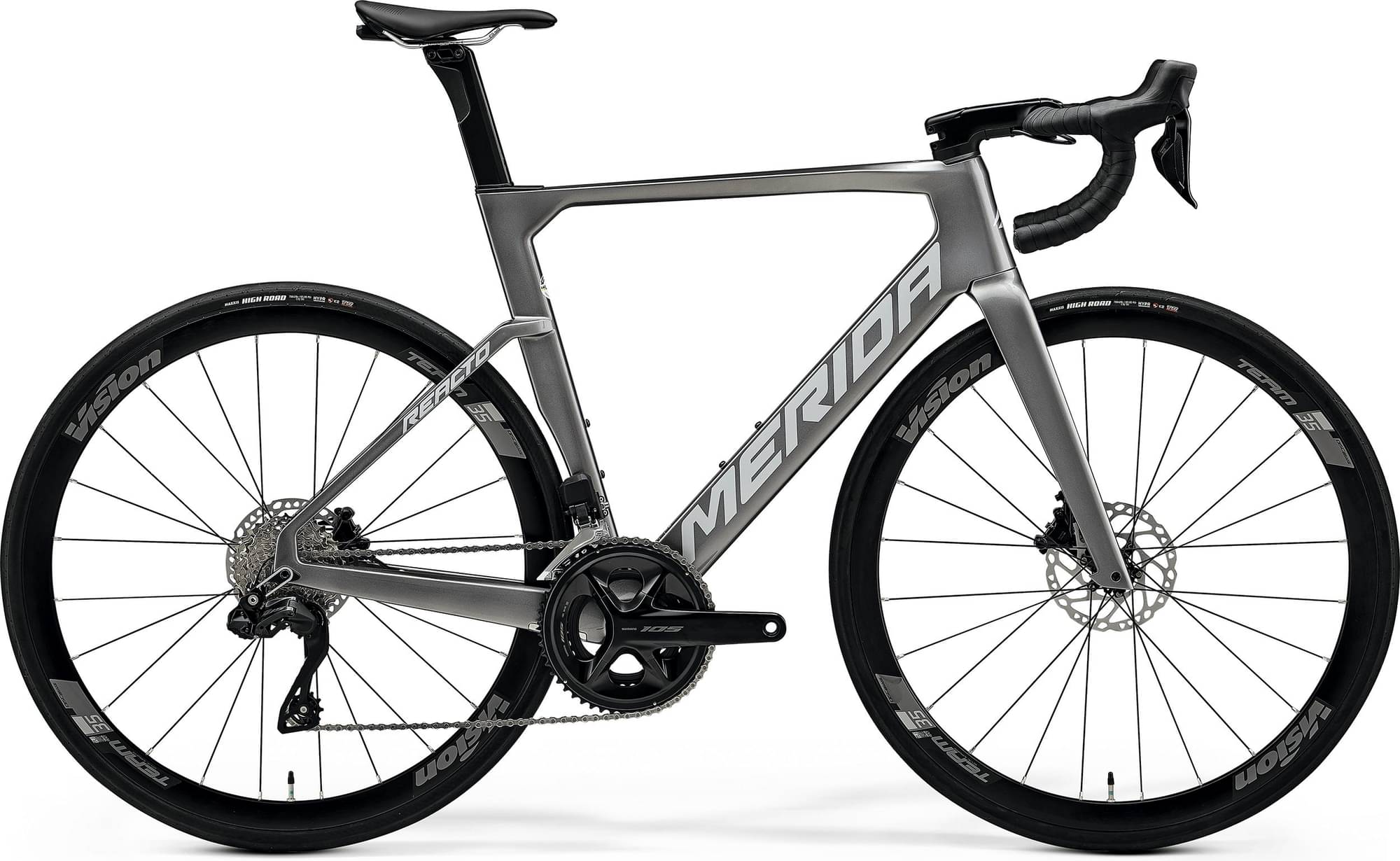

Merida REACTO 5000 2025
2025 Road
Estimate price |
3,176$
Weight | 9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset 105 Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
REACTO CF3 IV, material: carbon, 700x30C max. wheelsize, 100x12/ 142x12mm axle standard, BB86,5 bottom bracket standard
Suspension Fork
REACTO CF3 IV DISC, material: carbon, 700x30C max. wheelsize
Drivetrain
Rear Derailleur
Shimano 105 Di2
Front Derailleur
Shimano 105 Di2
Shift Levers
Shimano 105 disc Di2
Cassette
Shimano 105 R7101, 11-34 teeth, 12 speed
Crank
Shimano 105 R7100, 52-36 teeth, 165 mm-XXS, 170 mm-XS, 172.5 mm-S/M/L, 175 mm-XL
Bottom Bracket
BB86/BB92, 86mm, press-fit
Chain
Shimano M6100-12
Wheels
Rims
Vision Team 35 Clincher Disc, 100x12mm width front hub, 142x12mm width rear hub, 19mm inner width, 35mm height, material: aluminium, Centerlock
Tires
Maxxis Highroad, 700x28C, fold *tubeless ready
Brakes
Brakes
Shimano 105, Hydraulic disc
Brake Levers
Shimano 105
Cockpit
Handlebar
MERIDA EXPERT CW, material: aluminium, 380mm (XXS-XS), 400mm (M-L-XL)
Headset
MERIDA TEAM SL, VP-MRBHB (OP203 neck)
Seat
Saddle
MERIDA EXPERT SL, 6% recycled and 23% nature material, V-mount, incl. MERIDA minitool
Seatpost
MERIDA TEAM CW, Aero shape, 15mm setback, Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.41 mm | 1.428 mm | 1.45 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 270 mm | 270 mm |
| Front Center | 591 mm | 591 mm | 600 mm | 611 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 59 mm | 53 mm | 53 mm | 50 mm |
| Stack | 542 mm | 557 mm | 571 mm | 593 mm |
| Reach | 390 mm | 395 mm | 400 mm | 409 mm |
| Top Tube Length | 545 mm | 560 mm | 575 mm | 590 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 520 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 72.5 ° | 73.5 ° | 73.5 ° | 74 ° |
| Head Tube Length | 128 mm | 140 mm | 155 mm | 176 mm |
| Chainstay Length | 408 mm | 408 mm | 408 mm | 408 mm |
| Wheelbase | 990 mm | 990 mm | 999 mm | 1010 mm |
| Bottom Bracket Drop | 66 mm | 66 mm | 66 mm | 66 mm |
| Standover Height | 792 mm | 810 mm | 826 mm | 853 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
