Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace Di2 -
Suspension Rigid -
Motor hub-drive -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
REACTO CF5 IV, material: carbon, 700x30C max. wheelsize, 100x12/ 142x12 mm axle standard, BB86,5 bottom bracket standard
Suspension Fork
REACTO CF5 IV disc, material: carbon, 700x30C max. wheelsize
Drivetrain
Rear Derailleur
Shimano Dura Ace Di2
Front Derailleur
Shimano Dura Ace Di2
Shift Levers
Shimano Dura Ace disc Di2
Cassette
Shimano CS-R9200, 11-30 teeth, 12 speed
Crank
Shimano Dura Ace, 52-36 teeth, Power Meter
Bottom Bracket
Shimano SM-BB92-41B, Pressfit 86.5 mm
Chain
Shimano CN-M9100-12
Wheels
Front Hub
MERIDA EXPERT SL, including removable lever, 6/4 mm allen key
Rear Hub
MERIDA EXPERT SL, including removable lever, 6/4 mm allen key
Rims
Vision Metron 60 SL Clincher TL Disc, 100x12 mm width front hub, 142x12 mm width rear hub, 18 mm inner width, 60 mm height, Centerlock, material: carbon, Tubeless ready (tubeless tape and valves not included)
Tires
Front: Continental Grand Prix 5000S TR, 700x25C, fold, tubeless ready, Rear: Continental Grand Prix 5000S TR, 700x25C, fold, tubeless ready
Brakes
Brakes
Shimano Dura Ace, Hydraulic disc
Brake Levers
Shimano Dura Ace disc
Cockpit
Stem
Vision METRON 5D ACR INTEGRATED, material: carbon
Handlebar
Vision METRON 5D ACR INTEGRATED, material: carbon, incl. Garmin mount (E0698+E0699), 400 mm (XXS-XS-S), 420 mm (M-L-XL)
Headset
FSA ACR
Seat
Saddle
Prologo Scratch M5
Seatpost
MERIDA TEAM CW, Aero shape, 15 mm setback, material: Carbon
Motor & Battery
Motor
Disc cooler F/R
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.428 mm |
| Bottom Bracket Height | 270 mm | 270 mm |
| Front Center | 591 mm | 600 mm |
| Rake | 45 mm | 45 mm |
| Trail | 53 mm | 53 mm |
| Stack | 557 mm | 571 mm |
| Reach | 395 mm | 400 mm |
| Top Tube Length | 560 mm | 575 mm |
| Seat Tube Angle | 73.5 ° | 73 ° |
| Seat Tube Length | 540 mm | 560 mm |
| Head Tube Angle | 73.5 ° | 73.5 ° |
| Head Tube Length | 140 mm | 155 mm |
| Chainstay Length | 408 mm | 408 mm |
| Wheelbase | 990 mm | 999 mm |
| Bottom Bracket Drop | 66 mm | 66 mm |
| Standover Height | 810 mm | 826 mm |
| Wheels | 700 | 700 |
Model Overview

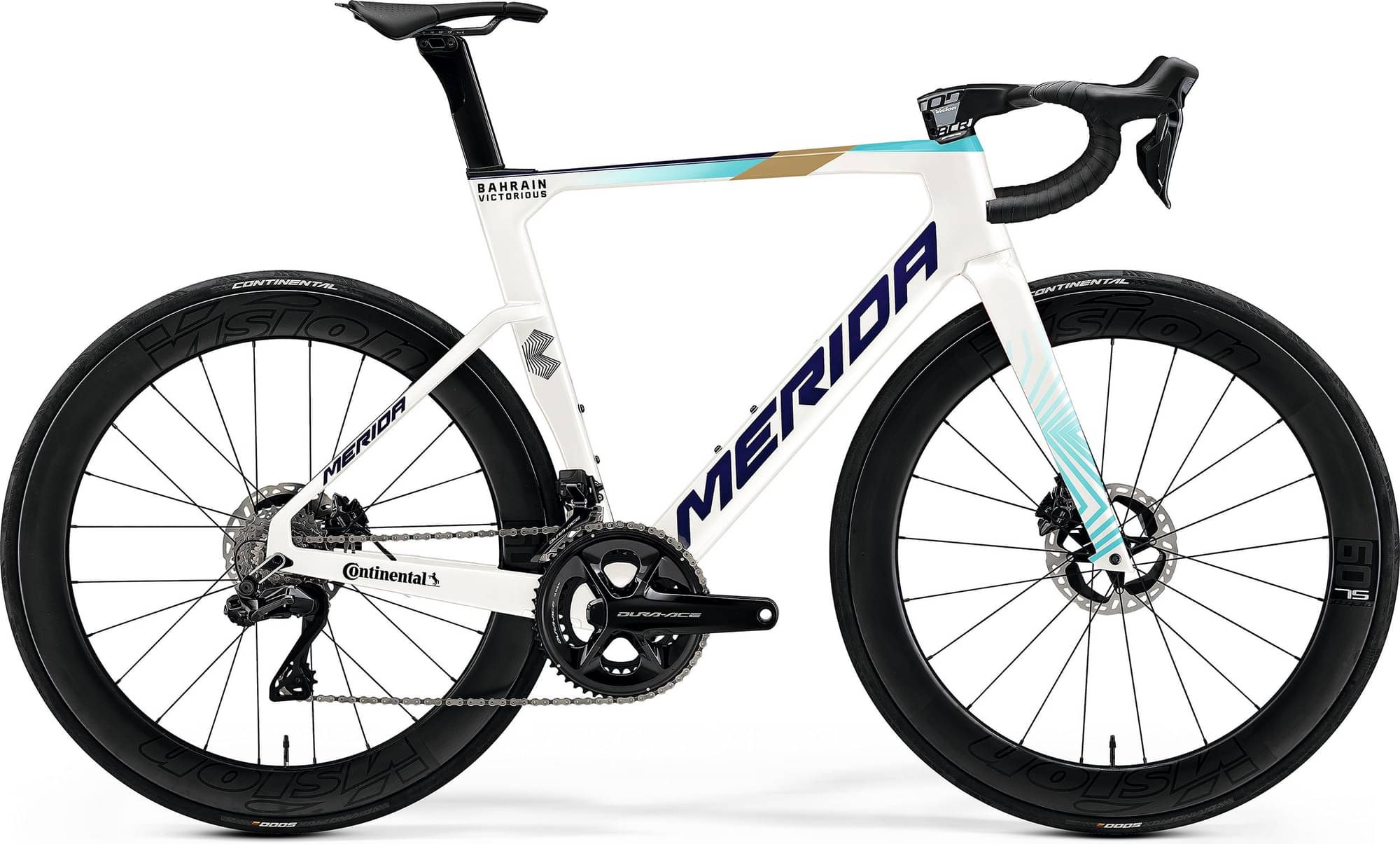

REACTO TEAM is part of the Merida E Reacto model. There are 3 e-bikes that carry this model name.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Aero e-bikes average price
If you want to purchase a solid Aero e-bike, it is important to know that the average cost is 4258$. However, even if your budget is less than the average, you might still be able to get a top-quality Aero e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork material
REACTO TEAM has a carbon fork, so, it won’t add up to much weight to your e-bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
When leaving the production line, the REACTO TEAM model has 700c carbon wheels. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The REACTO TEAM has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
