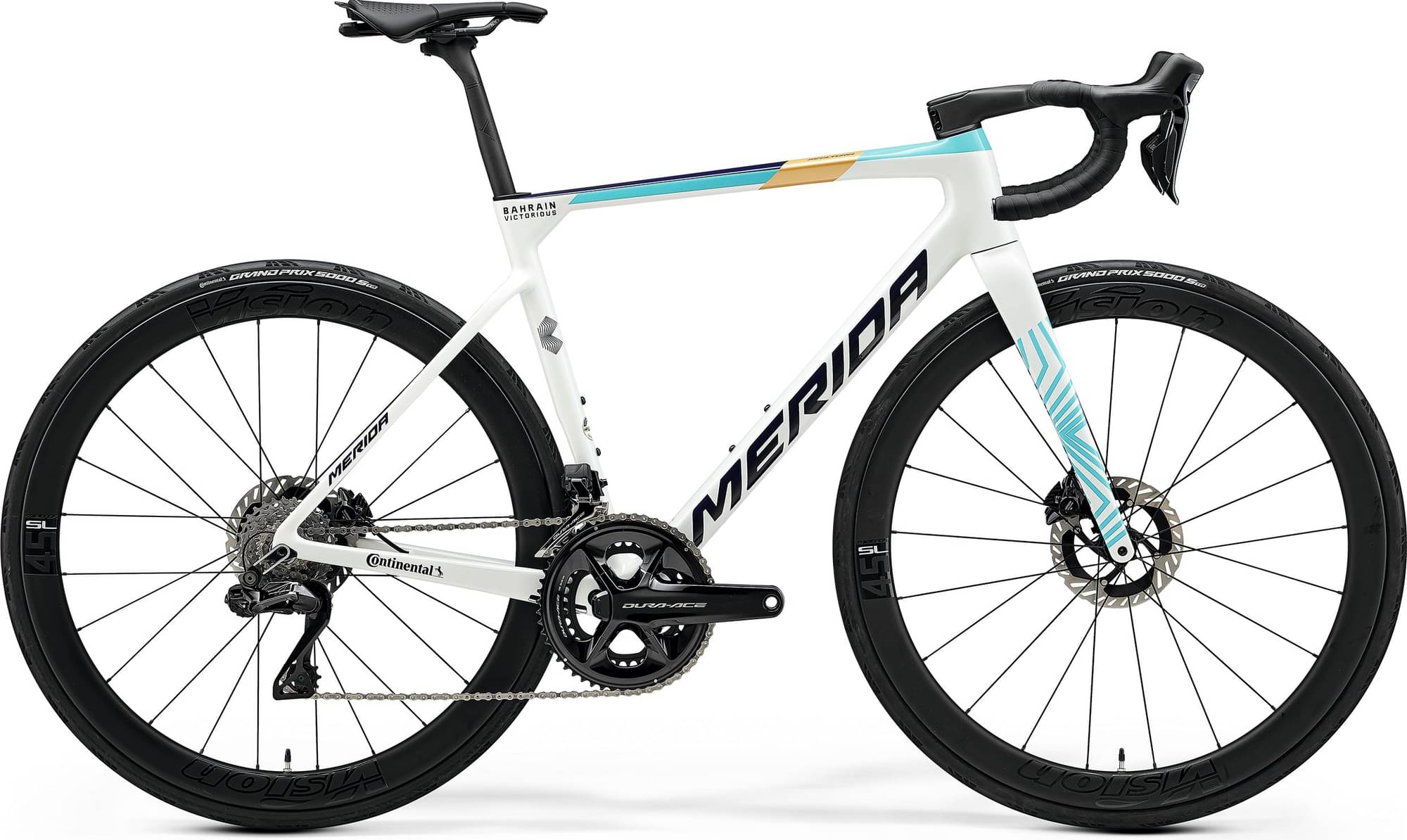

Merida SCULTURA TEAM 2025
2025 Road
Estimate price |
10,839$
Weight | 7.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Dura-Ace Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SCULTURA CF5 V, material: carbon, 700x30C max. wheelsize, 100x12/ 142x12mm axle standard, Pressfit 86,5
Suspension Fork
SCULTURA CF5 disc, material: carbon, 700x30C max. wheelsize
Drivetrain
Rear Derailleur
Shimano Dura Ace Di2
Front Derailleur
Shimano Dura Ace Di2
Shift Levers
Shimano Dura Ace disc Di2
Cassette
Shimano Dura-Ace R9200, 11-30 teeth, 12 speed
Crank
Shimano Dura Ace, 52-36 teeth, Power Meter, 165 mm-3XS-XXS, 170 mm-XS, 172.5 mm-S/M/L, 175 mm-XL
Bottom Bracket
Shimano SM-BB72-41B, Pressfit 86.5
Chain
Shimano M9100-12
Wheels
Front Hub
MERIDA EXPERT SL, including removable lever, 6/4mm allen key
Rear Hub
MERIDA EXPERT SL, including removable lever, 6/4mm allen key
Rims
Vision Metron 45 SL Clincher TL Disc, 100x12mm width front hub, 142x12mm width rear hub, 21mm inner width, 45mm height, Centerlock, material: carbon, Tubeless ready (tubeless tape and valves included)
Tires
Front: Continental Grand Prix 5000S TR, 700x28C, fold, tubeless ready, Rear: Continental Grand Prix 5000S TR, 700x28C, fold, tubeless ready
Brakes
Brakes
Shimano Dura Ace, Hydraulic disc
Brake Levers
Shimano Dura Ace disc
Cockpit
Stem
MERIDA TEAM ONE-PIECE INTEGRATED, material: carbon, 90 mm-3XS/XXS/XS, 100 mm-S, 110 mm-M/L, 120 mm-XL, incl. MERIDA SMART MOUNT
Handlebar
MERIDA TEAM SL 1P INTEGRATED, material: carbon, 380mm (XXS-XS-S) 400mm (M-L-XL)
Headset
MERIDA TEAM SL, VP-MRBHB (OP-203 neck)
Seat
Saddle
Prologo Scratch M5, V-mount adapter, incl. MERIDA minitool
Seatpost
MERIDA TEAM SL, 27.2mm diameter, 15mm setback, Carbon, S-Flex
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.371 mm | 1.381 mm | 1.39 mm | 1.41 mm | 1.428 mm | 1.45 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 270 mm | 270 mm | 270 mm | 270 mm |
| Front Center | 587 mm | 584 mm | 590 mm | 591 mm | 601 mm | 611 mm |
| Rake | 45 mm | 46 mm | 44 mm | 45 mm | 46 mm | 45 mm |
| Trail | 71 mm | 61 mm | 60 mm | 53 mm | 52 mm | 50 mm |
| Stack | 517 mm | 529 mm | 542 mm | 557 mm | 571 mm | 593 mm |
| Reach | 377 mm | 383 mm | 390 mm | 395 mm | 400 mm | 409 mm |
| Top Tube Length | 520 mm | 535 mm | 545 mm | 560 mm | 575 mm | 590 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 435 mm | 458 mm | 481 mm | 501 mm | 521 mm | 550 mm |
| Head Tube Angle | 70.5 ° | 72 ° | 72.5 ° | 73.5 ° | 73.5 ° | 74 ° |
| Head Tube Length | 105 mm | 112 mm | 128 mm | 140 mm | 155 mm | 176 mm |
| Chainstay Length | 408 mm | 408 mm | 408 mm | 408 mm | 408 mm | 408 mm |
| Wheelbase | 985 mm | 982 mm | 989 mm | 990 mm | 1000 mm | 1010 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 66 mm | 66 mm | 66 mm | 66 mm |
| Standover Height | 721 mm | 745 mm | 765 mm | 782 mm | 800 mm | 823 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
