Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset Ultegra, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
WARP TRI CF4
Suspension Fork
Aero profiled carbon fork
Drivetrain
Rear Derailleur
Shimano Ultegra
Front Derailleur
Shimano Ultegra
Shift Levers
Shimano BS-R1, 22 speed, bar end shifters
Cassette
Shimano CS-5800, 11 speed, 11-28 teeth
Crank
Vision Trimax pro TT 52-36 teeth Mega
Chain
KMC X11-1
Wheels
Rims
full carbon 55mm section clincher
Tires
Continental Grand Sport Race 23c front and 25c rear folding
Brakes
Brakes
Profile 3oneA levers with Shimano 105 direct mount caliper brakes
Brake Levers
Profile 3oneA
Cockpit
Handlebar
Profile Ozero TT base withT2 and aero clip
Headset
Meida Warp
Seat
Saddle
MERIDA-2302
Seatpost
Warp Aero carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM |
|---|---|
| Stack Reach Ratio | 1.23 mm |
| Bottom Bracket Height | 294 mm |
| Front Center | 612 mm |
| Rake | 43 mm |
| Trail | 75 mm |
| Stack | 495 mm |
| Reach | 401 mm |
| Top Tube Length | 508 mm |
| Seat Tube Angle | 76 ° |
| Seat Tube Length | 510 mm |
| Head Tube Angle | 71 ° |
| Head Tube Length | 120 mm |
| Chainstay Length | 399 mm |
| Wheelbase | 1005 mm |
| Bottom Bracket Drop | 55 mm |
| Standover Height | 771 mm |
| Wheels | 700 |
About this model

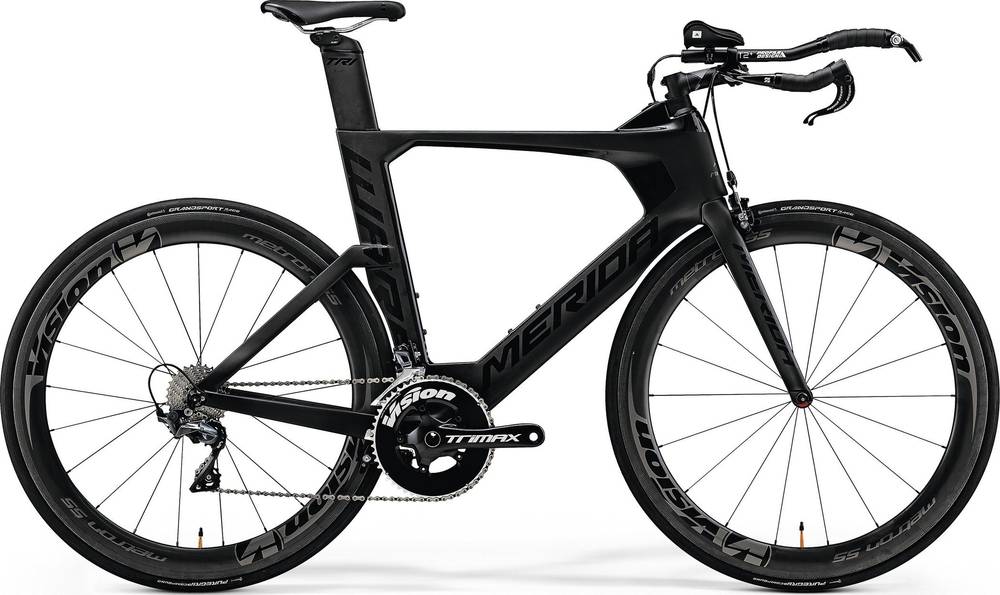

WARP 5000 completes the Merida Warp model. Merida launched 18 bikes of this model so far.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Gravel bikes
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, this doesn’t mean that if you spend less money on a Gravel bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Gravel bikes average weight
The average weight for Gravel bikes is 8.13 kg (17.92 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 8.75 kg (19.29 lbs), the WARP 5000 model is a bit heavier than average. In short, the average Gravel bike weight is 7.63% lower than this one.
WARP 5000 components
Fork material
When it comes to the fork, this bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
As for the wheels, Merida WARP 5000 2018, has a 700c carbon model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida WARP 5000 is equipped with Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they are not nearly as effective as hydraulic brakes are.
