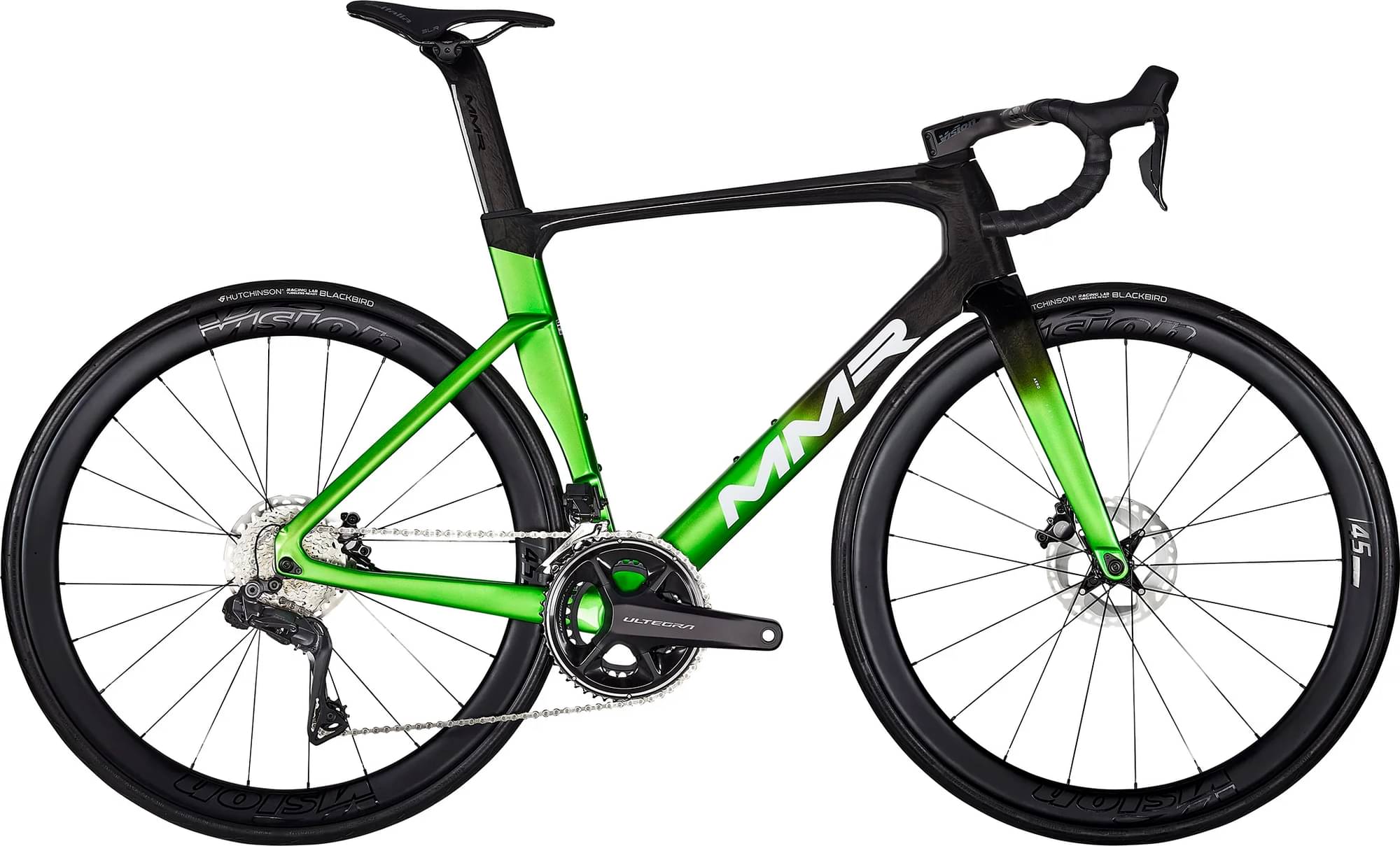

MMR Adrenaline Aero Team Replica 2025
2025 Road
Estimate price |
6,281$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Ultegra, Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Shimano Ultegra Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Adrenaline Aero - G3 Carbon Concept Lite Frame. Intermediate Modulus Carbon Fiber. Monocoque. TA 12mm. Fully Internal Cable Routing. Flat Mount. E+ Compatible. PressFit. Headtube 1.5
Suspension Fork
Adrenaline Aero - G3 Carbon Concept Lite Fork. TA 12mm
Drivetrain
Rear Derailleur
Shimano Ultegra Di2 R8150 12V
Cassette
Shimano Ultegra R8100 11-34T 12V
Crank
Shimano Ultegra R8100 50-34T 12V
Chain
Shimano M6100
Wheels
Rims
VISION SC45
Tires
Hutchinson Blackbird 28 TLR
Brakes
Brakes
Shimano Ultegra Di2 R8170 12V
Cockpit
Handlebar
Vision Metron 5D EVO
Seat
Saddle
Selle Italia SLR Boost Superflow
Seatpost
MMR Aero Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.325 mm | 1.37 mm | 1.386 mm |
| Bottom Bracket Height | 271 mm | 271 mm | 271 mm |
| Front Center | 580 mm | 594 mm | 610 mm |
| Rake | 45 mm | 45 mm | 45 mm |
| Trail | 61 mm | 58 mm | 58 mm |
| Stack | 514 mm | 544 mm | 564 mm |
| Reach | 388 mm | 397 mm | 407 mm |
| Top Tube Length | 535 mm | 553 mm | 569 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 460 mm | 500 mm | 540 mm |
| Head Tube Angle | 72.5 ° | 73 ° | 73 ° |
| Head Tube Length | 115 mm | 145 mm | 165 mm |
| Chainstay Length | 406 mm | 406 mm | 406 mm |
| Wheelbase | 977 mm | 991 mm | 1007 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
