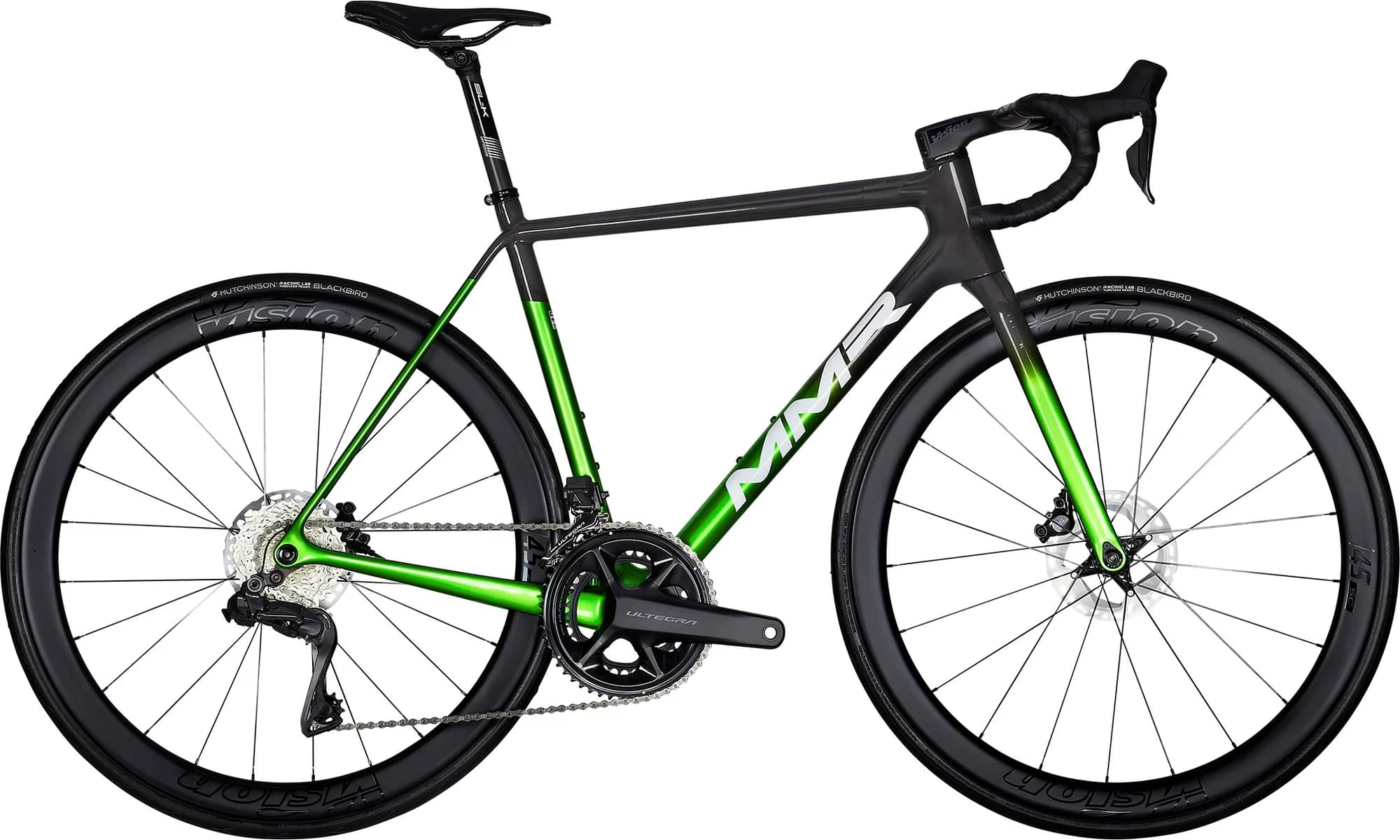

MMR Adrenaline SL Team Replica 2025
2025 Road
Estimate price |
6,397$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Ultegra, Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Shimano Ultegra Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Adrenaline - G2 Carbon. Concept Lite Frame. High Modulus Carbon Fiber. Monocoque. TA 12mm. Fully Internal Cable Routing. Flat Mount. E+ Compatible. PressFit. Head Tube 1.5
Suspension Fork
Adrenaline - G2 Carbon Concept Lite Fork. TA 12mm
Drivetrain
Rear Derailleur
Shimano Ultegra Di2 R8150 12V
Cassette
Shimano Ultegra Di2 R8150 11-34T 12V
Crank
Shimano Ultegra Di2 R8150 52-36T 12V
Chain
Shimano M7100
Wheels
Rims
Vision SC45
Tires
Hutchinson Blackbird 28 TLR
Brakes
Brakes
Shimano Ultegra Di2 R8150 12V
Cockpit
Handlebar
Vision Metron 5D EVO
Seat
Saddle
Selle Italia SLR Boost Kit Carbon Superflow
Seatpost
FSA SL-K
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.414 mm | 1.411 mm | 1.433 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm |
| Front Center | 580 mm | 590 mm | 600 mm |
| Rake | 47 mm | 47 mm | 47 mm |
| Trail | 62 mm | 59 mm | 55 mm |
| Stack | 536 mm | 546 mm | 566 mm |
| Reach | 379 mm | 387 mm | 395 mm |
| Top Tube Length | 530 mm | 549 mm | 568 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 490 mm | 530 mm | 560 mm |
| Head Tube Angle | 72 ° | 72.5 ° | 73 ° |
| Head Tube Length | 125 mm | 144 mm | 163 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm |
| Wheelbase | 980 mm | 990 mm | 1000 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
