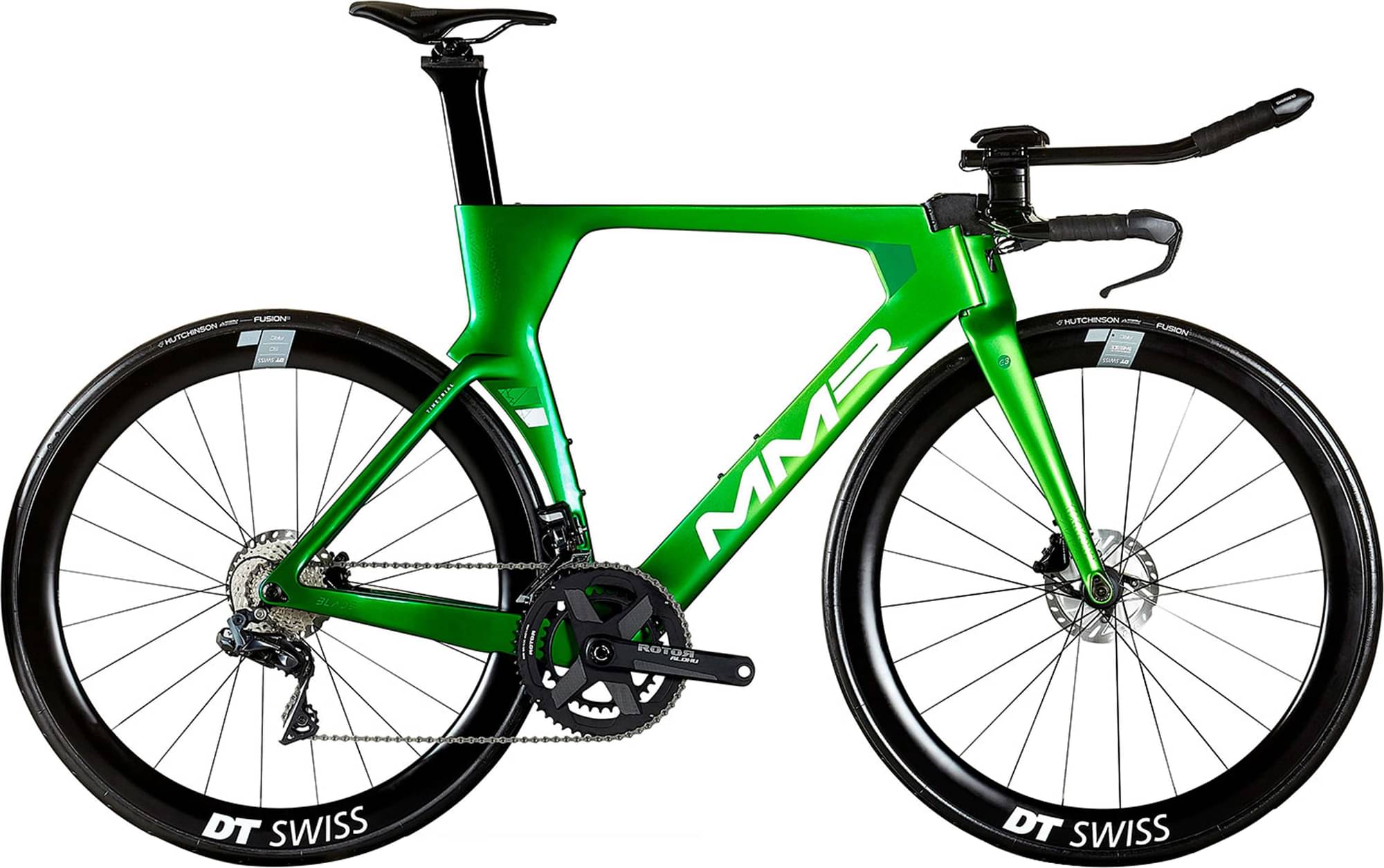

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Dura-Ace Di2, Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Blade- G3 Carbon Concept Frame. Intermediate modulus carbon fiber. Monocoque. TA 12mm. Internal Cable Routing. Flat Mount. Advanced Aerodynamics. Headtube 1.5
Suspension Fork
Blade- G3 Carbon Concept Lite. TA 12mm
Drivetrain
Rear Derailleur
Shimano Ultegra 8050 DI2 11v
Shift Levers
Shimano Dura Ace Di2 ST-9180
Cassette
Shimano Ultegra R8000 11-30
Crank
Aldhu 39/53 Rotor
Chain
Shimano HG-601
Wheels
Rims
DT Swiss Dicut PRC-1400 Carbon 50 12-12
Tires
Hutchinson Fusion-5 25c
Brakes
Brakes
Shimano Dura Ace ST9180 140/140
Cockpit
Stem
MMR Blade Aero
Handlebar
MMR Blade Aero Carbon
Headset
MMR Blade Aero
Seat
Saddle
Selle Italia SLR Boost
Seatpost
MMR Blade Aero Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.316 mm | 1.319 mm | 1.3 mm | 1.29 mm |
| Bottom Bracket Height | 261 mm | 261 mm | 261 mm | 261 mm |
| Front Center | 563 mm | 582 mm | 603 mm | 622 mm |
| Rake | 35 mm | 44 mm | 41 mm | 37 mm |
| Trail | 70 mm | 60 mm | 60 mm | 60 mm |
| Stack | 495 mm | 521 mm | 538 mm | 556 mm |
| Reach | 376 mm | 395 mm | 414 mm | 431 mm |
| Top Tube Length | 501 mm | 534 mm | 553 mm | 570 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 449 mm | 540 mm | 557 mm | 571 mm |
| Head Tube Angle | 71 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 61 mm | 82 mm | 99 mm | 118 mm |
| Chainstay Length | 400 mm | 400 mm | 400 mm | 400 mm |
| Wheelbase | 951 mm | 970 mm | 991 mm | 1010 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
