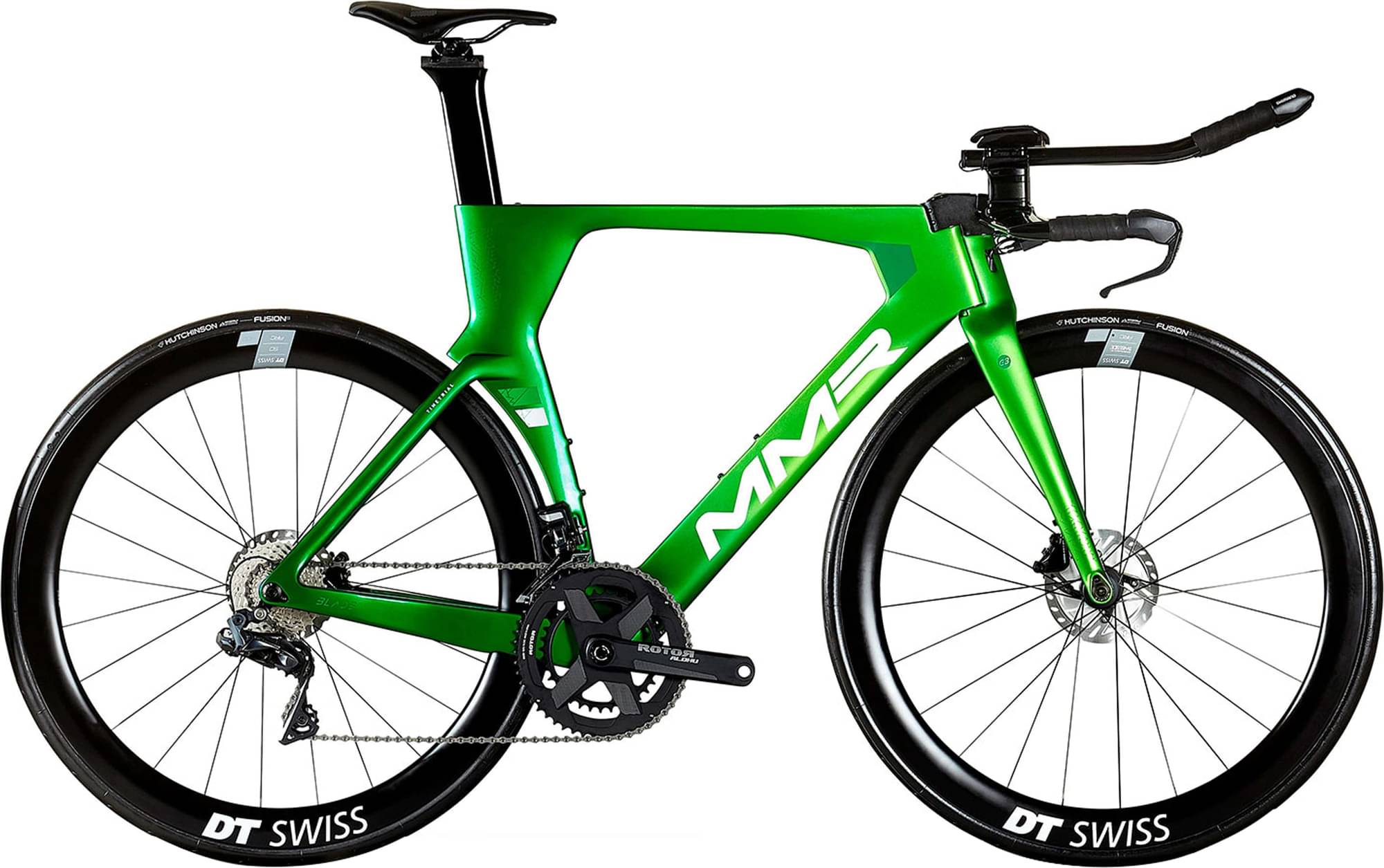

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2, Dura-Ace Di2 -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Blade- G3 Carbon Concept Frame. Intermediate modulus carbon fiber. Monocoque. TA 12mm. Internal Cable Routing. Flat Mount. Advanced Aerodynamics. Headtube 1.5
Suspension Fork
Blade- G3 Carbon Concept Lite. TA 12mm
Drivetrain
Rear Derailleur
Shimano Ultegra 8050 DI2 11v
Shift Levers
Shimano Dura Ace Di2 ST-9180
Cassette
Shimano Ultegra R8000 11-30
Crank
Aldhu 39/53 Rotor
Chain
Shimano HG-601
Wheels
Rims
DT Swiss Dicut PRC-1400 Carbon 50 12-12
Tires
Hutchinson Fusion-5 25c
Brakes
Brakes
Shimano Dura Ace ST9180 140/140
Cockpit
Stem
MMR Blade Aero
Handlebar
MMR Blade Aero Carbon
Headset
MMR Blade Aero
Seat
Saddle
Selle Italia SLR Boost
Seatpost
MMR Blade Aero Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.32 mm | 1.32 mm | 1.3 mm | 1.29 mm |
| Bottom Bracket Height | 261 mm | 261 mm | 261 mm | 261 mm |
| Front Center | 563 mm | 582 mm | 603 mm | 622 mm |
| Rake | 35 mm | 44 mm | 41 mm | 37 mm |
| Trail | 70 mm | 60 mm | 60 mm | 60 mm |
| Stack | 493 mm | 519 mm | 536 mm | 554 mm |
| Reach | 374 mm | 393 mm | 412 mm | 429 mm |
| Top Tube Length | 499 mm | 532 mm | 551 mm | 568 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 449 mm | 540 mm | 557 mm | 571 mm |
| Head Tube Angle | 71 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 61 mm | 82 mm | 99 mm | 118 mm |
| Chainstay Length | 398 mm | 398 mm | 398 mm | 398 mm |
| Wheelbase | 949 mm | 968 mm | 989 mm | 1008 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
About this model
Blade is part of the Mmr Blade model. MMR released 2 bikes variations of this model so far.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Triathlon bikes average price
If you want an acceptable Triathlon bike you should know that the average price is 4177$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Triathlon bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2023 for 6965$. Doing a quick comparison, we notice that Blade price is 66.75% higher than the average cost of a Triathlon bike.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Blade components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
The wheels on Blade are the 700c carbon type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Blade has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
MMR Blade bike has 4 sizes, in the range of 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, finding one for you shouldn’t be a problem.
