Bike details
Overview
Key information split into simple groups.

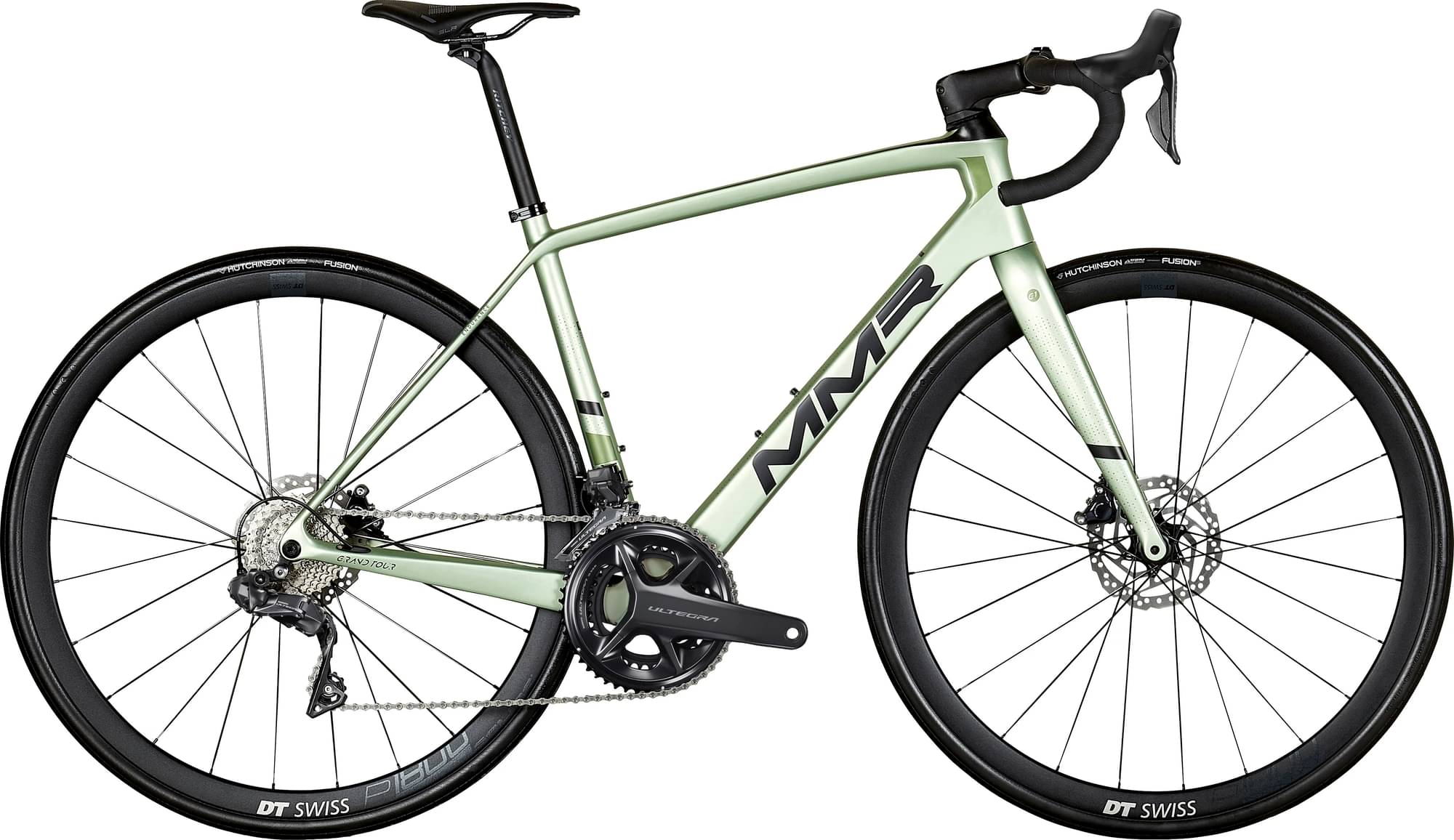

Bike summary
-
-
Frame Carbon -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Grand Tour - G1 Carbon Concept Frame. Intermediate Modulus carbon fiber. Monocoque. TA 12mm. Fully Internal Cable Routing. Flat Mount. E+ compatible. PressFit. HeaDT Swissube 1.5
Suspension Fork
Gran Tour - Carbon Concept Lite Fork TA 12mm
Drivetrain
Rear Derailleur
Shimano Ultegra R8000 11v
Cassette
Shimano 105 R7000 11-30 11v
Crank
Shimano Ultegra R8000 34x50
Chain
Shimano HG-601 11v
Wheels
Rims
DT Swiss P1800 Spline
Tires
Hutchinson Fusion-5 Performance 700x28
Brakes
Brakes
Shimano Ultegra R8020 160/160
Cockpit
Stem
Ritchey Comp Switch
Handlebar
Ritchey Comp Curve
Headset
Ritchey Comp Integrated Tapered 1.5
Seat
Saddle
San Marco Aspide Short Open Fit Sport Wide
Seatpost
Ritchey Comp 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.489 mm | 1.468 mm | 1.504 mm | 1.501 mm | 1.506 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 264 mm | 264 mm | 266 mm |
| Front Center | 581 mm | 588 mm | 584 mm | 599 mm | 615 mm |
| Rake | 50 mm | 50 mm | 45 mm | 45 mm | 45 mm |
| Trail | 68 mm | 63 mm | 60 mm | 60 mm | 60 mm |
| Stack | 536 mm | 546 mm | 567 mm | 581 mm | 598 mm |
| Reach | 360 mm | 372 mm | 377 mm | 387 mm | 397 mm |
| Top Tube Length | 513 mm | 529 mm | 544 mm | 565 mm | 580 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 475 mm | 500 mm | 520 mm | 545 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 135 mm | 150 mm | 165 mm | 180 mm | 200 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 980 mm | 987 mm | 983 mm | 998 mm | 1015 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
