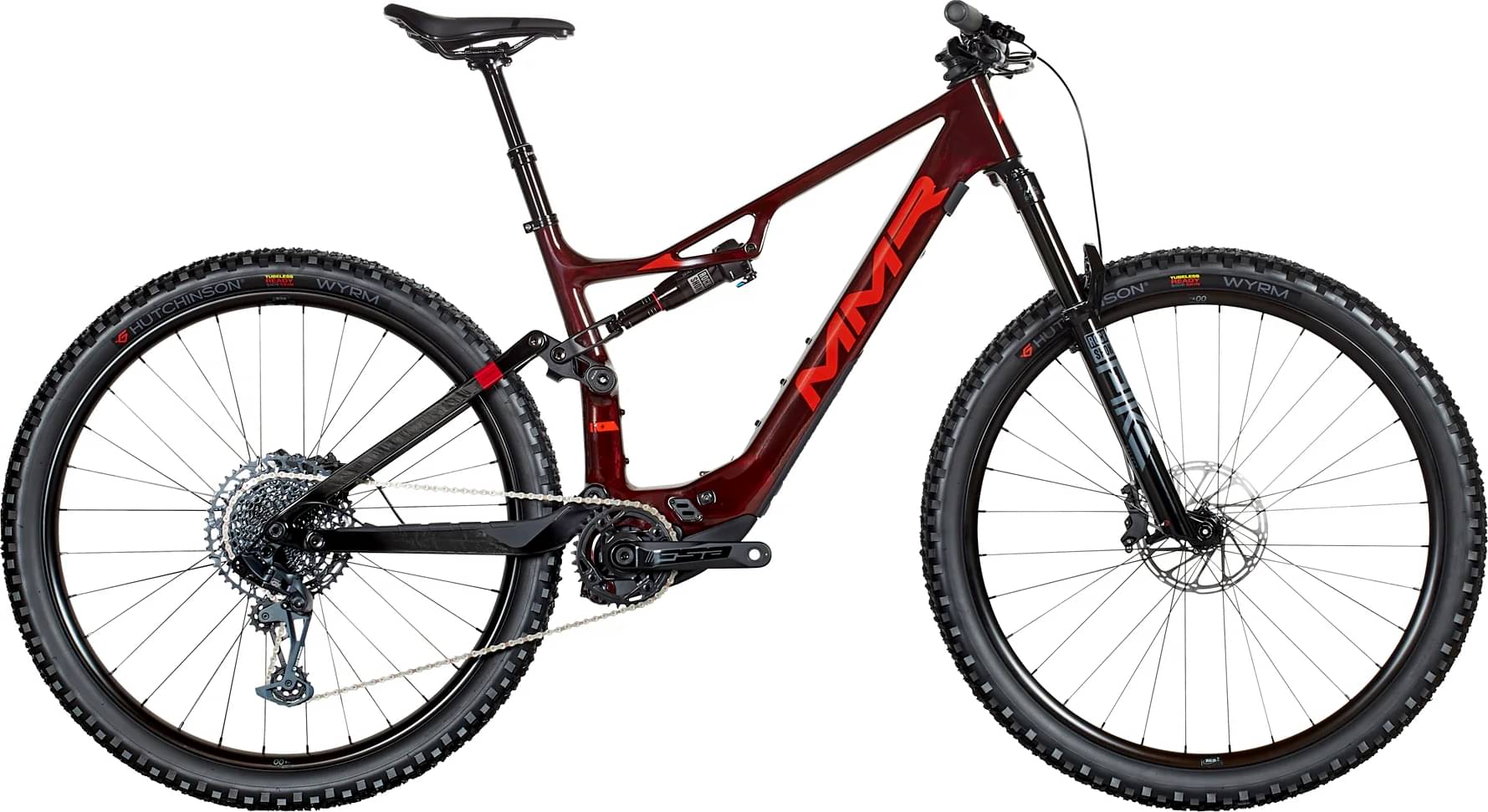

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 140mm -
Travel Rear 140mm -
Fork RockShox Pike
-
Groupset GX Eagle -
Suspension Full -
Motor Bosch 600W 55Nm mid-drive -
Battery Bosch ComapctTube 400Wh -
Drivetrain 1 × 12 -
Brakes SRAM DB8 Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kaizen – G2 Carbon Concept Frame. Intermediate modulus carbon fiber. Several moulds. TA 12mm. Internal Cable Routing. Boost. PostMount. Full integrated battery. Head Tube 1.5.
Suspension Fork
Rock Shox Pike 29 140mm
Rear Shock
Rock Shox Deluxe Select+
Drivetrain
Rear Derailleur
SRAM GX Eagle Lunar
Cassette
SRAM SX PG-1210 11-50 12V
Crank
FSA Alloy Forged 34T
Chain
SRAM SX
Wheels
Rims
XCR 9800 HYBRID HG
Tires
Hutchinson Wyrm TLR 2.4
Brakes
Brakes
SRAM DB8 Stealth
Cockpit
Stem
Race Face Ride 35
Handlebar
Race Face Turbine R35 800
Seat
Saddle
San Marco GND Dynamic
Seatpost
Race Face Affect R
Motor & Battery
Motor
Bosch Performance Line SX
Battery
Bosch ComapctTube 400Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.455 mm | 1.393 mm | 1.32 mm |
| Bottom Bracket Height | 342 mm | 342 mm | 342 mm |
| Front Center | 727 mm | 763 mm | 813 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 117 mm | 117 mm | 117 mm |
| Stack | 611 mm | 627 mm | 648 mm |
| Reach | 420 mm | 450 mm | 491 mm |
| Top Tube Length | 591 mm | 624 mm | 671 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 406 mm | 457 mm | 508 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 100 mm | 117 mm | 140 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1180 mm | 1216 mm | 1266 mm |
| Bottom Bracket Drop | 32 mm | 32 mm | 32 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
