Bike details
Overview
Key information split into simple groups.

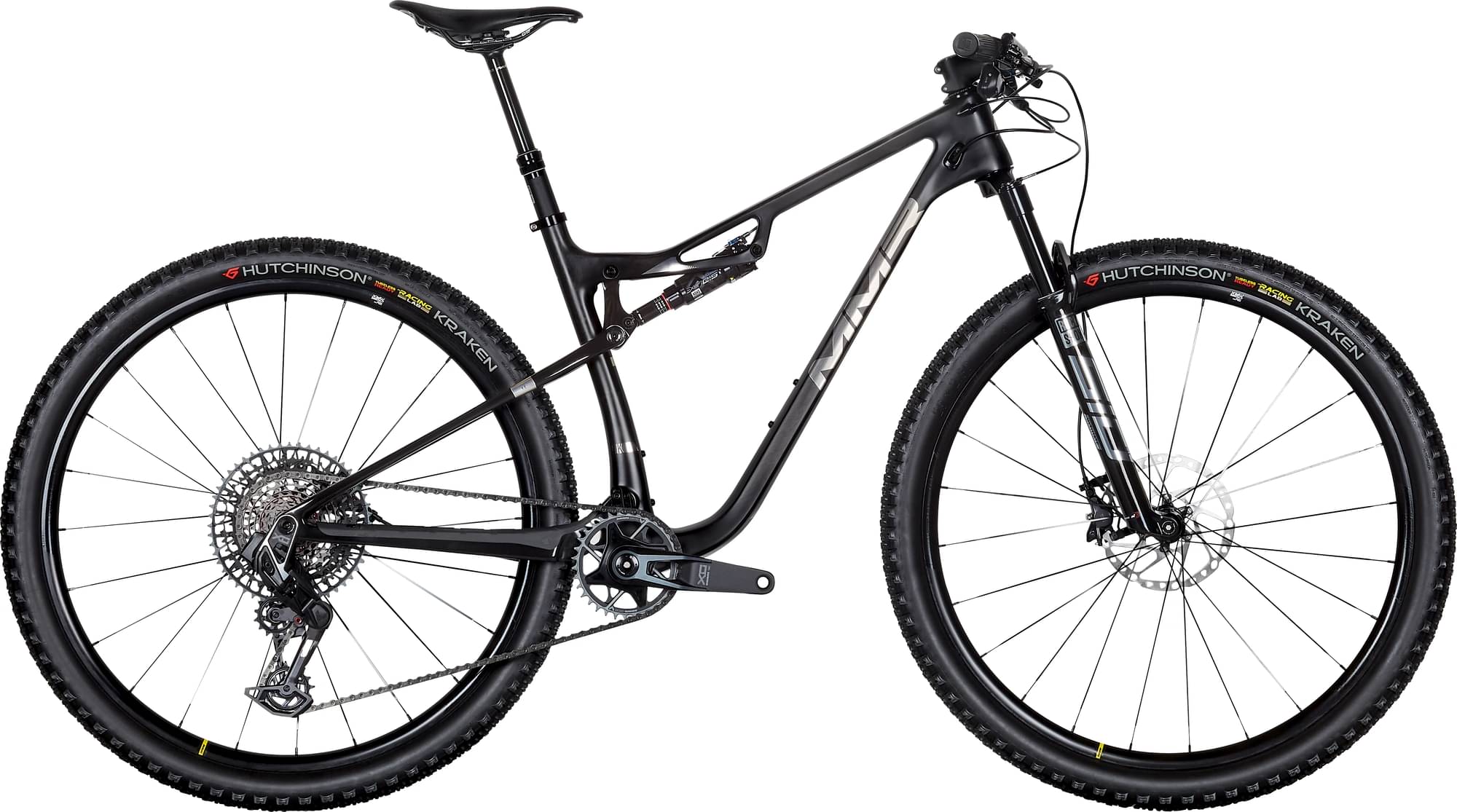

Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Fork Fox Float 34
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kenta- G3 Carbon Concept Lite Frame. High Modulus carbon fiber. Monocoque. TA 12mm. Internal Cable Routing. Boost. PostMount. Flexion 4 pivot. E+ Compatible. PressFit. Head tube Tapered 1.5
Suspension Fork
Fox Performace 34 RL 29 120mm Boost
Rear Shock
Fox Float DPS Performance Elite RL
Drivetrain
Rear Derailleur
Shimano XT M8100 SGS 12V
Cassette
Sunrace CSMZ930 10/51 12V MS
Crank
Shimano XT M8100 34T
Bottom Bracket
BSA, 73mm, threaded
Chain
Shimano Deore M6100 12V
Wheels
Rims
Shimano MT-601 29 Boost CL MS
Tires
Hutchinson Kraken 29 2.30 TS TL RLab
Brakes
Brakes
Shimano XT M8100 180/160
Cockpit
Stem
Ritchey Comp 4 Axis
Handlebar
Ritchey Comp 2X 9° 720mm
Grips
Ritchey WCS Evergrip Silicone
Seat
Saddle
San Marco Shortfit Wide
Seatpost
Ritchey Comp Zero
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.417 mm | 1.368 mm | 1.325 mm |
| Bottom Bracket Height | 324 mm | 324 mm | 324 mm |
| Front Center | 678 mm | 708 mm | 739 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 89 mm | 89 mm | 89 mm |
| Stack | 588 mm | 602 mm | 616 mm |
| Reach | 415 mm | 440 mm | 465 mm |
| Top Tube Length | 562 mm | 590 mm | 618 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 430 mm | 457 mm | 509 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 90 mm | 105 mm | 120 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1108 mm | 1138 mm | 1169 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
