Bike details
Overview
Key information split into simple groups.

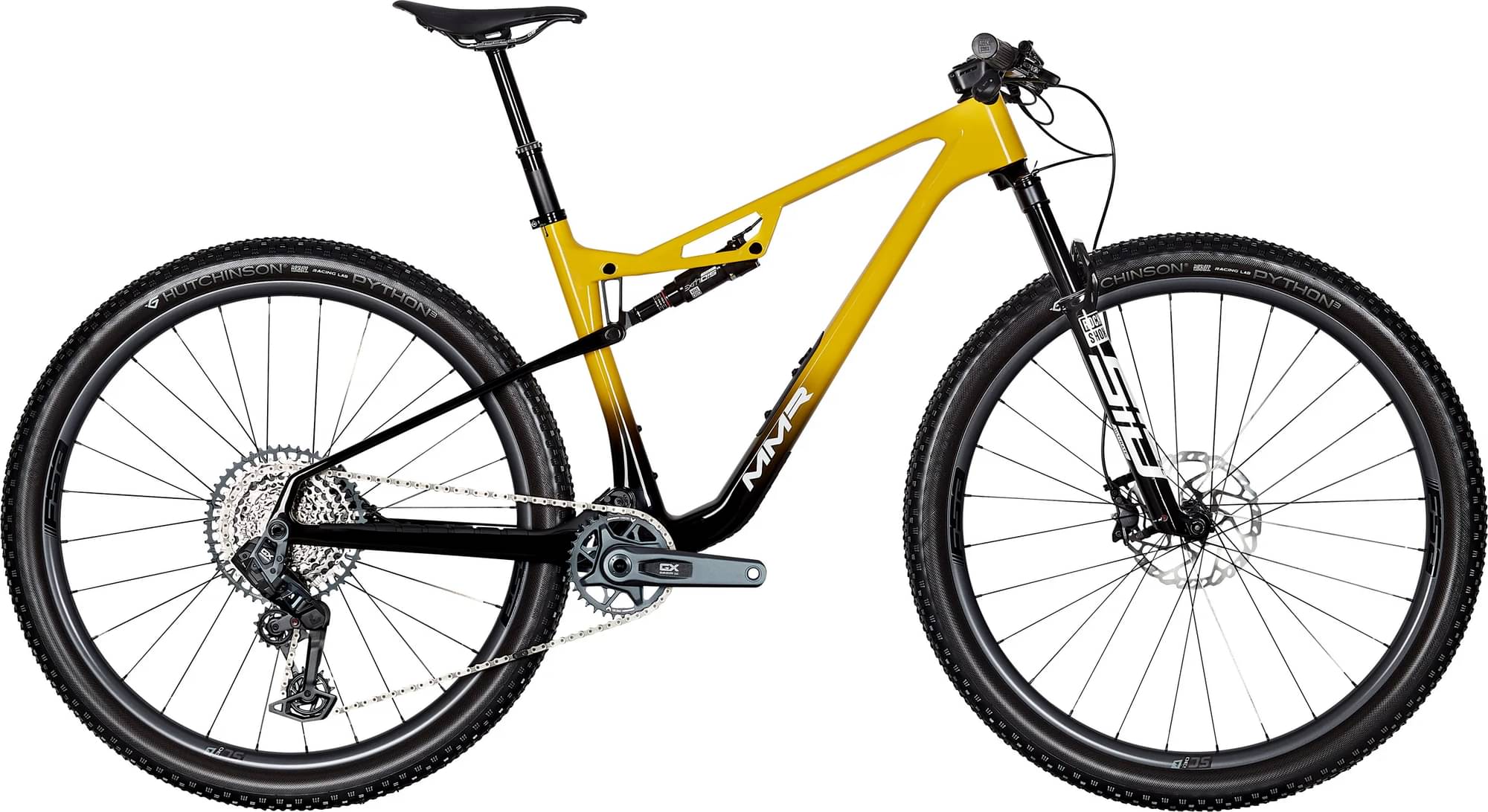

Bike summary
-
-
Frame Carbon -
Travel Front 120mm -
Fork RockShox Recon Silver RL
-
Groupset Eagle 70 Transmission -
Suspension Full -
Drivetrain 1 × 12 -
Brakes SRAM Level Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kenta; Mid Modulus Carbon Fiber; 29x2.4" max; 148x12; Pressfit 92
Suspension Fork
Rock Shox Recon RL 120
Rear Shock
Rock Shox SidLuxe Select+ 190x45; HW-30/22.2
Drivetrain
Rear Derailleur
SRAM Eagle 70
Cassette
SRAM XS-1270 10-52
Crank
SRAM Eagle 70 34T
Bottom Bracket
BB86/BB92, press-fit
Chain
SRAM Eagle 70 Flattop
Wheels
Rims
Shimano MT500 TLR,110x15 WHF:148x12 WHR, Centerlock; Alloy
Tires
Michelin Force XC Performance Line TR; 29x2.25
Brakes
Brakes
SRAM Level
Cockpit
Stem
Ritchey Logic S= 70mm M= 80mm L= 90mm
Handlebar
Ritchey Logic 720 mm
Headset
FSA NO.69 SRS
Seat
Saddle
San Marco Shortfit
Seatpost
Ritchey Comp
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.388 mm | 1.333 mm | 1.295 mm |
| Bottom Bracket Height | 334 mm | 334 mm | 334 mm |
| Front Center | 703 mm | 732 mm | 764 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 111 mm | 111 mm | 111 mm |
| Stack | 590 mm | 600 mm | 615 mm |
| Reach | 425 mm | 450 mm | 475 mm |
| Top Tube Length | 571 mm | 598 mm | 627 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 430 mm | 457 mm | 508 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 85 mm | 96 mm | 112 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1135 mm | 1164 mm | 1196 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
