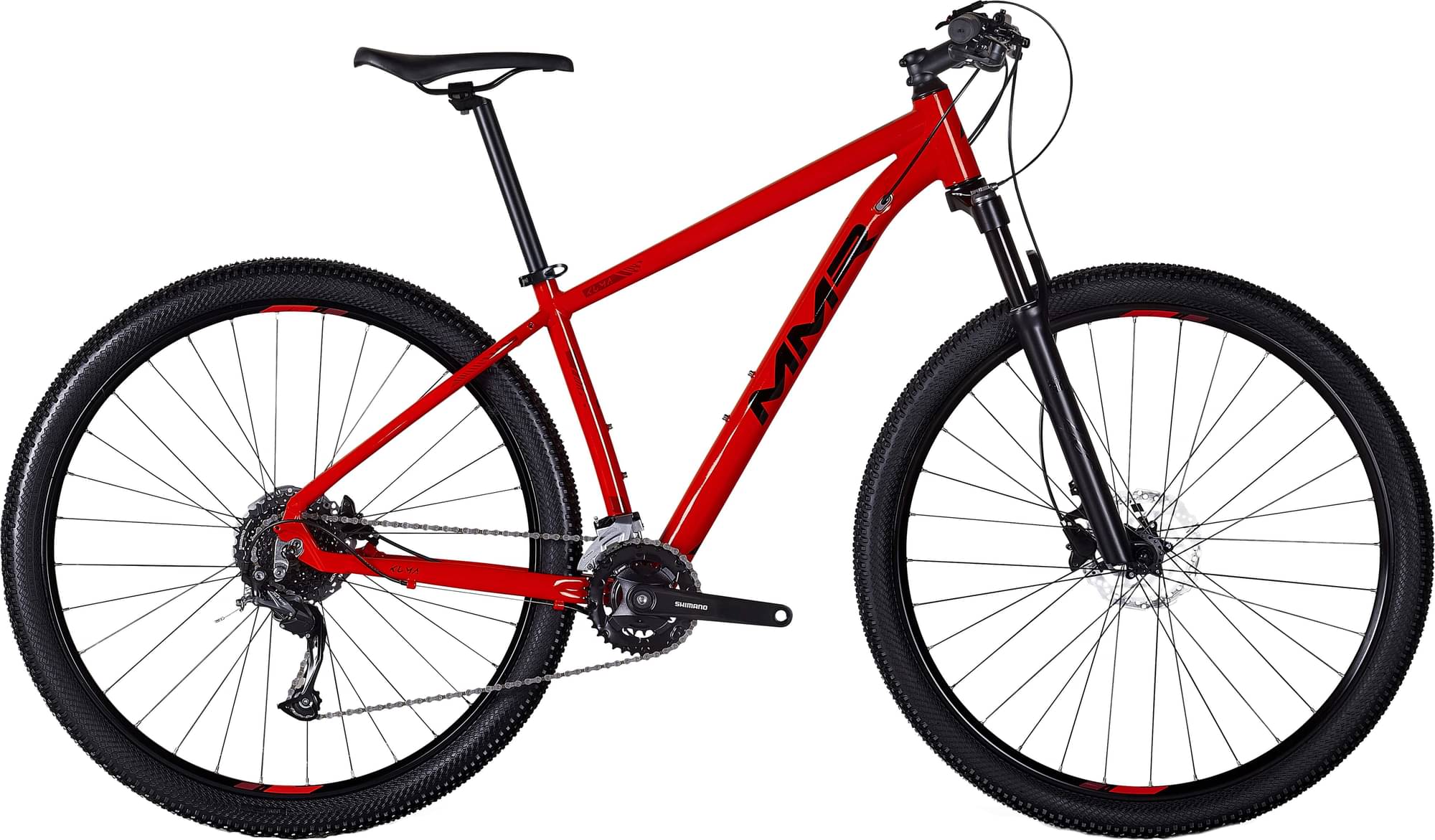

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork XCR
-
Groupset Altus -
Suspension Hardtail -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum 6061-T6 double hydroformed crowned, AC Frame, Control & Comfort design, Optimized Cable Routing, Post Mount.
Suspension Fork
XCR 330 Remote Lockout. Black Stanchions. Travel 100mm
Drivetrain
Rear Derailleur
Shimano Altus M2000 9V
Cassette
Shimano HG-200 9V 11-36
Crank
Shimano MT101 22-36
Chain
KMC Z9
Wheels
Rims
XCR DW Alloy 6061 HG
Tires
29 x 2.10
Brakes
Brakes
Zoom HB-875 160/160
Cockpit
Stem
XCR Alloy 4 Bolts
Handlebar
XCR Rizer
Grips
XCR Double Density
Headset
Neco Press Fit 1-1/8
Seat
Saddle
Cionlli Comfort
Seatpost
XCR Alloy 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.706 mm | 1.694 mm | 1.667 mm | 1.643 mm |
| Bottom Bracket Height | 319 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 621 mm | 634 mm | 647 mm | 662 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 84 mm | 84 mm | 84 mm | 84 mm |
| Stack | 616 mm | 630 mm | 640 mm | 649 mm |
| Reach | 361 mm | 372 mm | 384 mm | 395 mm |
| Top Tube Length | 552 mm | 567 mm | 585 mm | 600 mm |
| Seat Tube Angle | 73.5 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 395 mm | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 105 mm | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1060 mm | 1072 mm | 1085 mm | 1100 mm |
| Bottom Bracket Drop | 55 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
