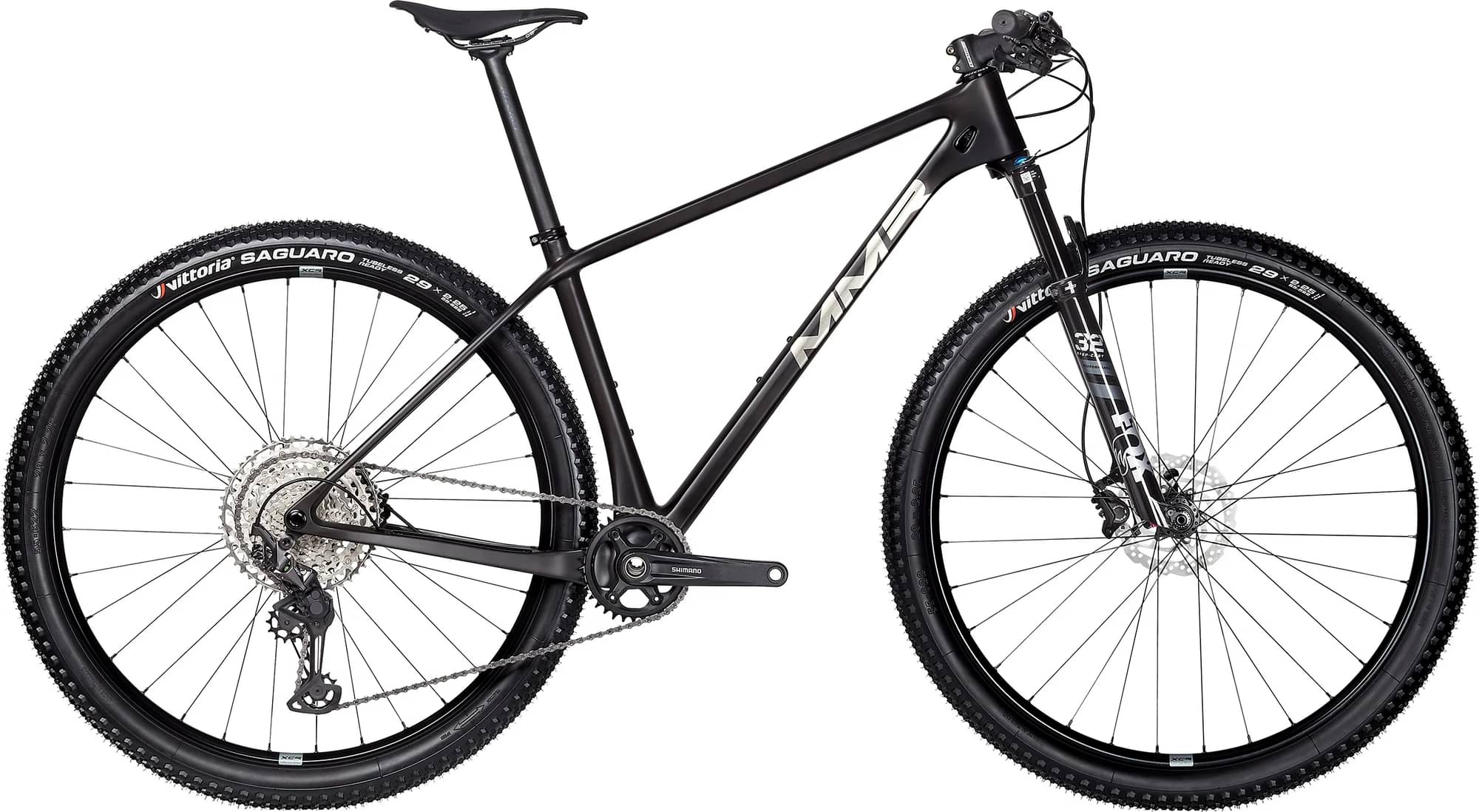

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 100mm -
Fork Fox Performance Float 32
-
Groupset XT -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Rakish - G3 Carbon Concept Lite Frame. Intermediate Modulus carbon fiber. Monocoque. TA 12mm. Internal Cable Routing. Boost. PostMount. PressFit. Head Tube 1.5
Suspension Fork
Fox Performance 32 15 Boost. Travel 100mm. One Lock Remote. Tapered
Drivetrain
Rear Derailleur
Shimano Deore XT M8100 12v
Cassette
Shimano Deore M6100 12v 10-51
Crank
Shimano MT-510-1 34T
Chain
Shimano Deore M6100 12v
Wheels
Rims
XCR-TR 9800 15-12 Boost
Tires
Vittoria Saguaro 29x2.25
Brakes
Brakes
Shimano MT-501
Cockpit
Stem
Ritchey Comp 4 Axis
Handlebar
Ritchey Comp 2X
Headset
Ritchey Pro Integrated Tapered 1.5
Seat
Saddle
San Marco Shortfit Wide
Seatpost
Ritchey Comp Zero
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.486 mm | 1.435 mm | 1.4 mm | 1.361 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 668 mm | 692 mm | 713 mm | 736 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 84 mm | 84 mm | 84 mm | 84 mm |
| Stack | 605 mm | 614 mm | 623 mm | 633 mm |
| Reach | 407 mm | 428 mm | 445 mm | 465 mm |
| Top Tube Length | 578 mm | 601 mm | 621 mm | 645 mm |
| Seat Tube Angle | 74.2 ° | 74.2 ° | 74.2 ° | 74.1 ° |
| Seat Tube Length | 394 mm | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1086 mm | 1110 mm | 1131 mm | 1154 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
