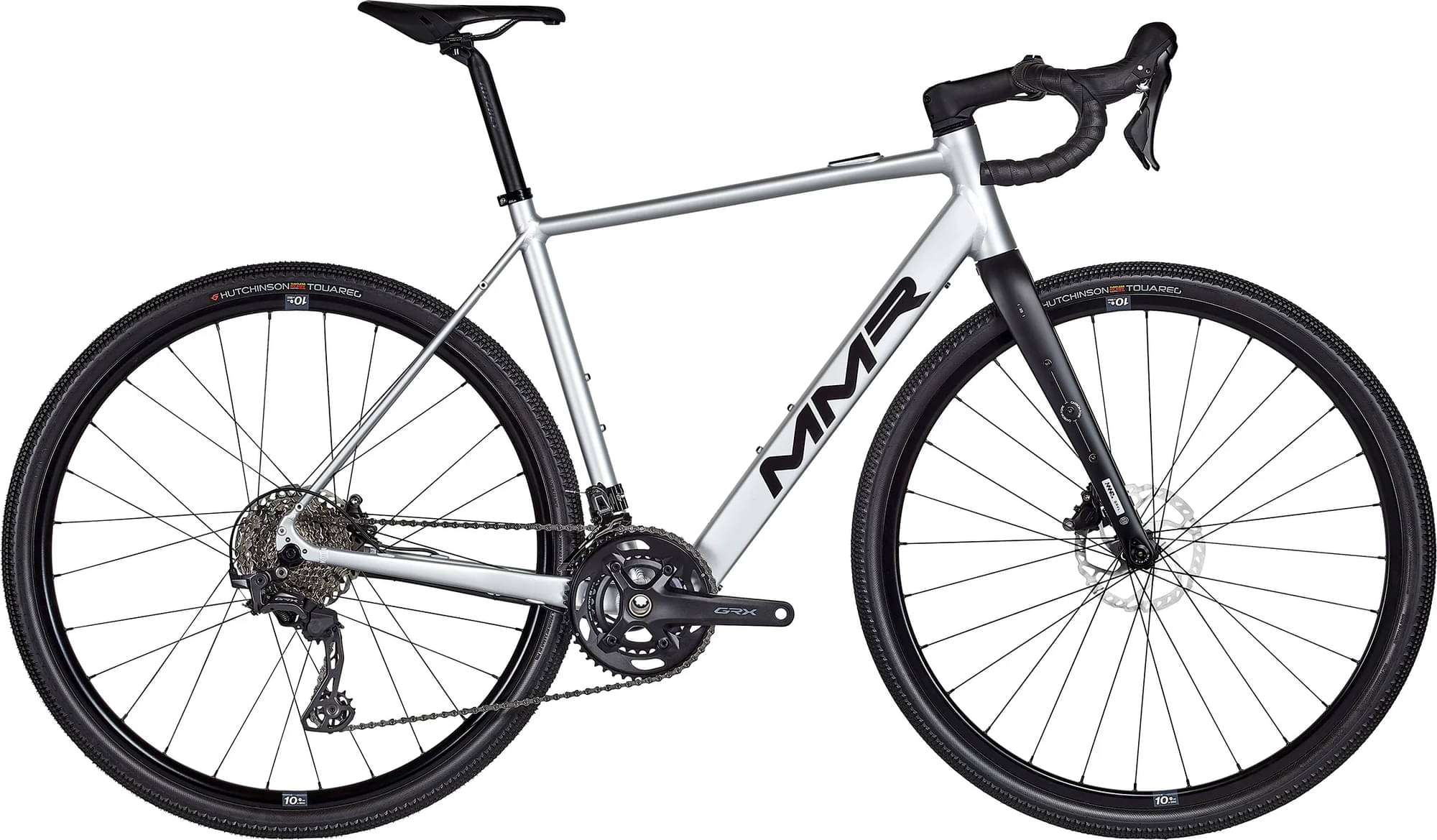

MMR X-Beat 00 2025

2025 E-bike
Estimate price | 4,420$
E-bike
Open compare Use advisor
Mmr X Beat 00 2025

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Frame Aluminum
  • Groupset GRX 800, GRX 600
  • Suspension Rigid
  • Motor MAHLE hub-drive
  • Battery Mahle iX2 (237 Wh)
  • Drivetrain 2 × 12
  • Brakes Shimano GRX 600 Hydraulic Disc
Sizing

Recommended size guide.

  • XS

    151cm - 164cm

  • SM

    159cm - 170cm

  • MD

    165cm - 177cm

  • LG

    171cm - 184cm

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

6061 aluminum. Double-butted hydroforming. Internal cable routing. Fully integrated battery. Press fit.

Suspension Fork

X-Beat- Intermediate Modulus Carbon. TA 12 mm. 700 x 42c max.

Drivetrain

Rear Derailleur

Shimano GRX RX820 12v

Cassette

Shimano 105 R7100 11/36

Crank

Shimano GRX RX610 46/30T

Chain

Shimano M-6100

Wheels

Rims

XCR 10 / X-20 HG

Tires

Hutchinson Touareg 40 TLR

Brakes

Brakes

Shimano GRX RX610

Cockpit

Stem

Ritchey Comp Switch

Handlebar

Ritchey Butane Comp

Headset

Ritchey Switch

Seat

Saddle

Selle Italia X3

Seatpost

Ritchey Comp 27.2

Motor & Battery

Motor

Mahle X-20

Battery

Mahle iX2 (237 Wh)

Fit data

Geometry

Numbers for sizing and ride feel.

SizeXSSMMDLG
Stack Reach Ratio
1.463 mm1.488 mm1.506 mm1.532 mm
Bottom Bracket Height
282 mm282 mm282 mm282 mm
Front Center
591 mm605 mm618 mm631 mm
Rake
50 mm50 mm50 mm50 mm
Trail
76 mm72 mm69 mm66 mm
Stack
534 mm558 mm580 mm605 mm
Reach
365 mm375 mm385 mm395 mm
Top Tube Length
518 mm540 mm562 mm580 mm
Seat Tube Angle
74 °73.5 °73 °73 °
Seat Tube Length
450 mm490 mm530 mm560 mm
Head Tube Angle
70 °70.5 °71 °71.5 °
Head Tube Length
115 mm140 mm160 mm185 mm
Chainstay Length
430 mm430 mm430 mm430 mm
Wheelbase
1012 mm1026 mm1039 mm1052 mm
Bottom Bracket Drop
67 mm67 mm67 mm67 mm
Wheels700700700700
Rider Min Height151 cm159 cm165 cm171 cm
Rider Max Height164 cm170 cm177 cm184 cm
