Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 120mm -
Travel Rear 120mm -
Fork RockShox 35 Silver
-
Groupset Deore -
Suspension Full -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch Power Tube 625 -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

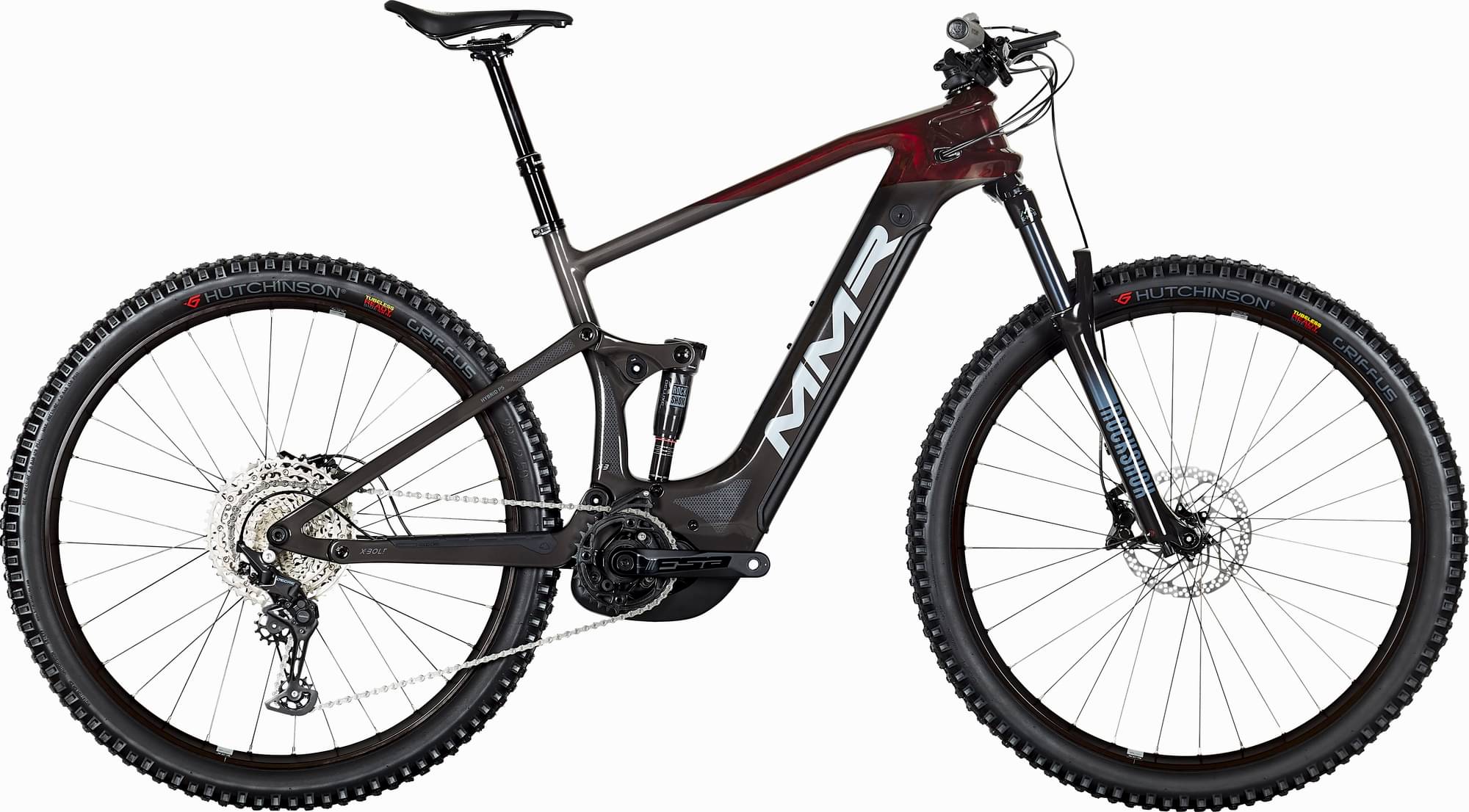

X-Bolt - G2 Carbon Concept Frame. Intermediate modulus carbon fiber. Several moulds. TA 12mm. Internal Cable Routing. Boost. PostMount. Full Integrated Battery. Head tube 1.5 Tapered
Suspension Fork
RockShox 35 Silver Air E-Bike 120mm Boost
Rear Shock
RockShox Deluxe Select E-Bike 120
Drivetrain
Rear Derailleur
Shimano Deore M6100 SGS 12V
Cassette
Shimano Deore M6100 10/51 12V
Crank
FSA Alloy Forged 34T 12V
Chain
Shimano Deore M6100 12V
Wheels
Rims
XCR-9800 HYBRID MT400/MT510B
Tires
Hutchinson Griffus 29 2.50
Brakes
Brakes
Shimano MT-420 180/160
Cockpit
Stem
Race Face Ride 35
Handlebar
Race Face Turbine
Seat
Saddle
San Marco GND Dynamic
Seatpost
Ritchey Comp Zero
Motor & Battery
Motor
Bosch Performance Line CX Smart System
Battery
Bosch Power Tube 625
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.449 mm | 1.398 mm | 1.354 mm |
| Bottom Bracket Height | 344 mm | 344 mm | 344 mm |
| Front Center | 736 mm | 767 mm | 798 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 106 mm | 106 mm | 106 mm |
| Stack | 616 mm | 629 mm | 643 mm |
| Reach | 425 mm | 450 mm | 475 mm |
| Top Tube Length | 590 mm | 618 mm | 647 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 406 mm | 457 mm | 508 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 110 mm | 125 mm | 140 mm |
| Chainstay Length | 457 mm | 457 mm | 457 mm |
| Wheelbase | 1191 mm | 1222 mm | 1253 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
