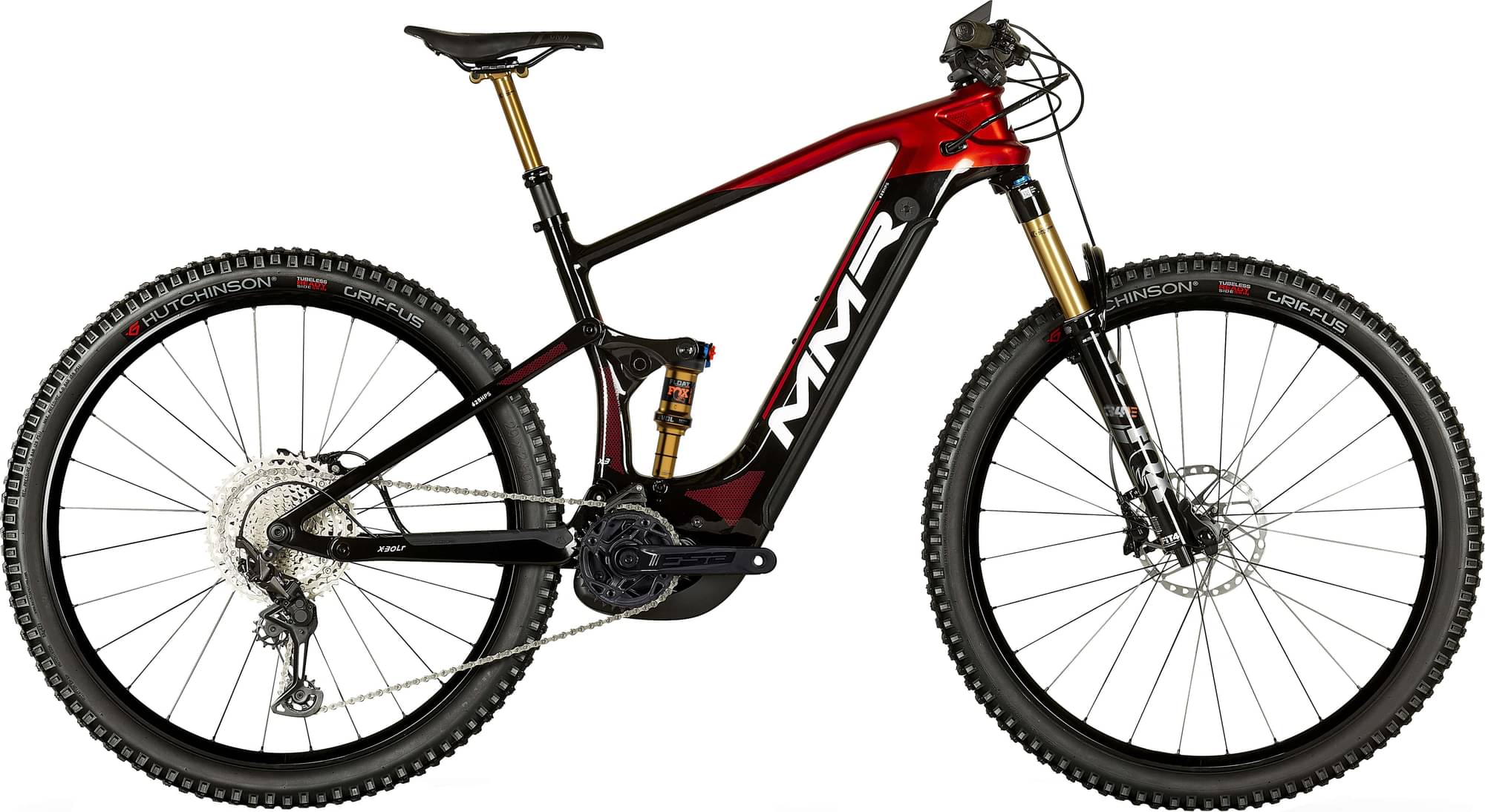

MMR X-Bolt 120 Plus 00 2024
2024 E-bike
Estimate price |
7,454$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 120mm -
Travel Rear 120mm -
Fork Fox Factory Float 34
-
Groupset XT -
Suspension Full -
Motor Bosch 600W 85Nm mid-drive -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
X-Bolt - G2 Carbon, Concept Frame. Intermediate modulus carbon fiber. Several moulds. TA 12mm. Internal Cable Routing. Boost. PostMount. Full Integrated Battery.Head tube 1.5 Tapered
Suspension Fork
Fox Factory 34 E-Bike, 120mm, Tapered
Rear Shock
Fox FloatDPS Factory 120mm
Drivetrain
Rear Derailleur
Shimano XT M8100 12V
Cassette
Shimano Deore M6100 10/51 12V
Crank
FSA Alloy Forged 34T 12V
Chain
Shimano Deore M6100 12V
Wheels
Rims
Shimano MT-601
Tires
Hutchinson Griffus TLR 29 2.50
Brakes
Brakes
Shimano XT M8120 RT64 203/180
Cockpit
Stem
Race Face Ride 35
Handlebar
Race Face Ride 35 760mm Rise 10mm
Headset
-
Seat
Saddle
San Marco Ground Short Dynamic Wide
Seatpost
Fox Transfer Factory Dropper, 125mm
Motor & Battery
Motor
Bosch Performance Line CX
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.355 mm | 1.314 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 337 mm |
| Front Center | 728 mm | 759 mm | 790 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 99 mm | 99 mm | 99 mm |
| Stack | 609 mm | 622 mm | 636 mm |
| Reach | 435 mm | 459 mm | 484 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 406 mm | 457 mm | 508 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 110 mm | 125 mm | 140 mm |
| Chainstay Length | 457 mm | 457 mm | 457 mm |
| Wheelbase | 1183 mm | 1214 mm | 1245 mm |
| Bottom Bracket Drop | 37 mm | 37 mm | 37 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
