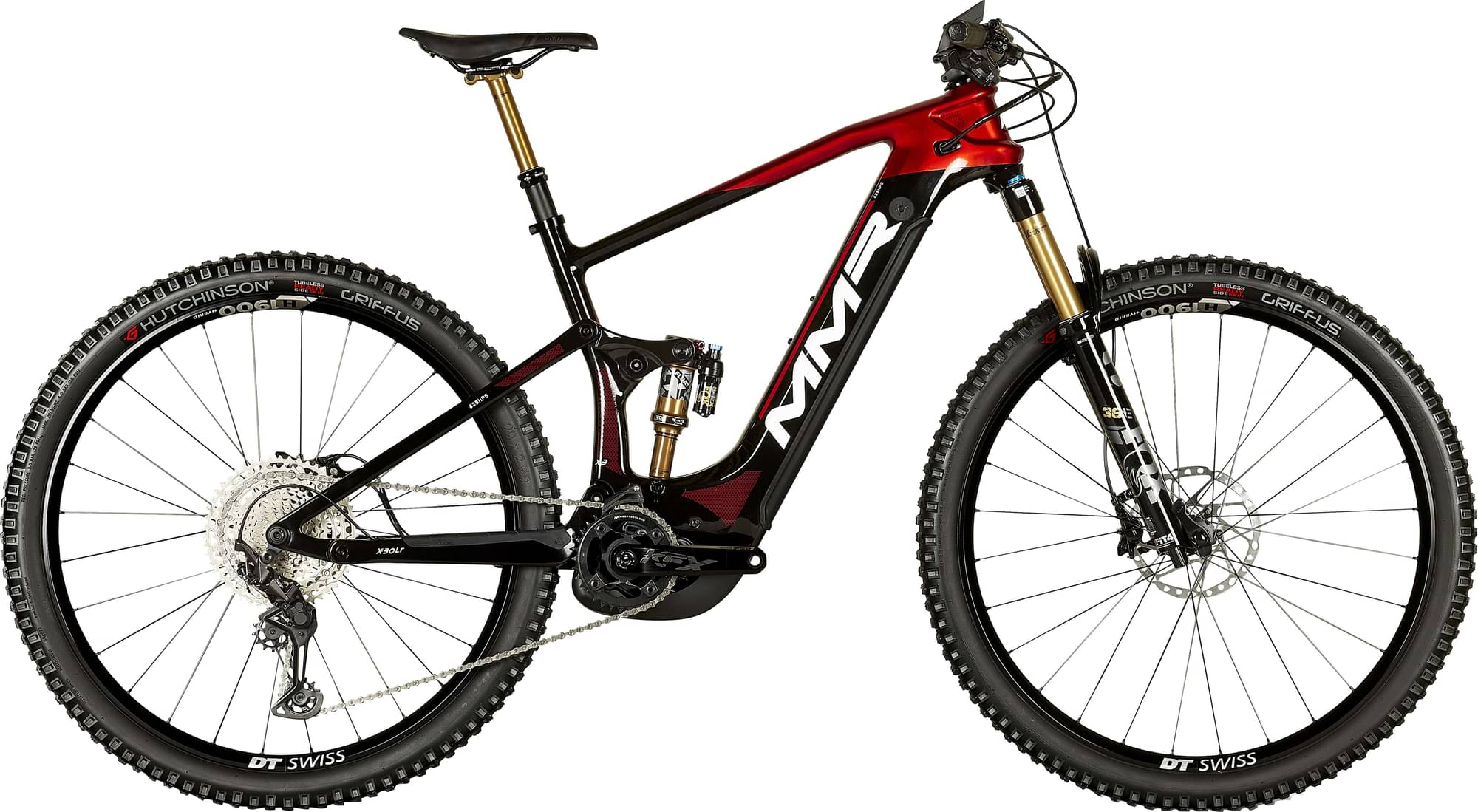

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 140mm -
Travel Rear 140mm -
Fork RockShox 35 Silver
-
Groupset Deore -
Suspension Full -
Motor Bosch 600W 85Nm mid-drive -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
X-Bolt - G2 Carbon Concept Frame. Intermediate modulus carbon fiber. Several moulds. TA 12mm. Internal Cable Routing. Boost. PostMount. Full Integrated Battery. Head tube 1.5 Tapered
Suspension Fork
Rock Shox 35 Silver Air Crown 15 Boost. E-bike. Travel 140mm. Tapered
Rear Shock
Rock Shox Deluxe Select R 140 E-bike
Drivetrain
Rear Derailleur
Shimano Deore M6100 12V
Cassette
XCR 11-50
Crank
FSA Forged E-bike 34
Chain
Shimano Deore M6100 12V
Wheels
Rims
Shimano MT-500 CL HG
Tires
Hutchinson Griffus TLR Sideskin 29x2.50
Brakes
Brakes
Shimano MT-400 203/180
Cockpit
Stem
Race Face Ride 35
Handlebar
Race Face Ride 35 760mm 10mm Rise
Headset
Ritchey Pro Integrated Tapered 1.5
Seat
Saddle
San Marco GND Dynamic
Seatpost
Race Face Aeffect R Dropper 125mm 30.9
Motor & Battery
Motor
Bosch Performance Line CX
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.449 mm | 1.398 mm | 1.354 mm |
| Bottom Bracket Height | 344 mm | 344 mm | 344 mm |
| Front Center | 736 mm | 767 mm | 798 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 106 mm | 106 mm | 106 mm |
| Stack | 616 mm | 629 mm | 643 mm |
| Reach | 425 mm | 450 mm | 475 mm |
| Top Tube Length | 590 mm | 618 mm | 647 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 406 mm | 457 mm | 508 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 110 mm | 125 mm | 140 mm |
| Chainstay Length | 457 mm | 457 mm | 457 mm |
| Wheelbase | 1191 mm | 1222 mm | 1253 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
