Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset GRX 600 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
X-Grip - G1 AC Concept Frame. Aluminium 6061. Hydroformed Triple Butted. TA 12mm. Optimized Cable Routing. Flat Mount. Headtube tapered 1.5 mm
Suspension Fork
X-Grip - G1 Carbon Concept Fork. TA 12mm
Drivetrain
Shift Levers
Shimano GRX 11v
Cassette
Shimano 105 R7000 11-34
Crank
Shimano GRX 600 36X46
Chain
Shimano HG-601
Wheels
Rims
Shimano RS-171 12-12
Tires
Hutchinson Overide 38c
Brakes
Brakes
Shimano GRX 160/160
Cockpit
Stem
Ritchey Logic 4 Axis
Handlebar
Ritchey Comp Curve
Headset
Ritchey Pro Integrada Tapered 1.5
Seat
Saddle
Selle Italia X3 Boost
Seatpost
Ritchey Logic 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.49 mm | 1.51 mm | 1.53 mm |
| Bottom Bracket Height | 285 mm | 285 mm | 285 mm | 285 mm |
| Front Center | 563 mm | 585 mm | 602 mm | 621 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 64 mm | 64 mm | 64 mm | 64 mm |
| Stack | 521 mm | 545 mm | 569 mm | 592 mm |
| Reach | 352 mm | 366 mm | 376 mm | 387 mm |
| Top Tube Length | 504 mm | 531 mm | 553 mm | 571 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 510 mm | 540 mm | 560 mm | 600 mm |
| Head Tube Angle | 72 ° | 72 ° | 72 ° | 72 ° |
| Chainstay Length | 421 mm | 421 mm | 421 mm | 421 mm |
| Wheelbase | 976 mm | 998 mm | 1015 mm | 1034 mm |
| Bottom Bracket Drop | 64 mm | 64 mm | 64 mm | 64 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

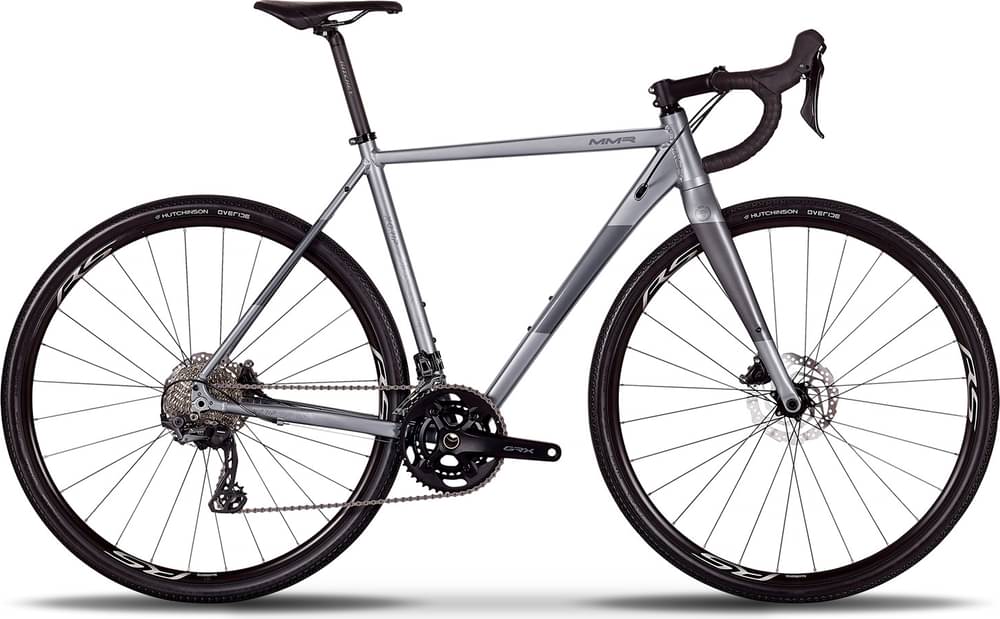

X-GRIP 00 completes the Mmr X Grip model. MMR launched 4 bikes of this model so far.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Gravel bikes
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, this doesn’t mean that if you spend less money on a Gravel bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When MMR released this model in 2021, its price was 1709$. Comparing this to the average Gravel bike price, we see that the price is 44.06% lower.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
X-GRIP 00 components
Fork material
When it comes to the fork, this bike has a carbon one, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
When it comes to wheels, the X-GRIP 00 bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The X-GRIP 00 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
MMR X-GRIP 00 bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
