Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 29" -
Travel Front 140mm -
Fork Fox Performance Float 34
-
Groupset XT, Shimano -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano Steps BT-E8036 630 wh -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
X-Kore - G2. AC Frame. Alu 6061 Hydroformed Double Butted. TA 12mm. Internal Cable Routing. Boost. Post Mount. 4 Direct Link Suspension System. Full Integrated Battery. Ebike optimized. HT Tapered 1.5
Suspension Fork
Fox 34 Float Performance. Travel 140 mm. Tapered. Boost.
Rear Shock
Fox Float Factory 190x50
Drivetrain
Shift Levers
Shimano XT M8100 12v
Cassette
Shimano SLX M7100 10-51
Crank
Shimano Steps FC-EM600
Bottom Bracket
STEPS, press-fit
Chain
Shimano SLX M-7100
Wheels
Rims
Shimano MT-620 29 CL 15-12 Boost
Tires
Hutchinson Griffus 29x2.50
Brakes
Brakes
Shimano XT M8120 180/160
Cockpit
Stem
Ritchey Trail
Handlebar
Ritchey Comp 2x720mm
Grips
MMR Double Density Ultragrip
Headset
Ritchey Logic Press Fit Tapered
Seat
Saddle
San Marco GND dynamic
Seatpost
KS Lev 125 mm drop 30.9mm
Motor & Battery
Motor
Shimano Steps DU-EP800
Battery
Shimano Steps BT-E8036 630 wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | SM | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.34 mm | 1.33 mm |
| Bottom Bracket Height | 349 mm | 349 mm | 349 mm |
| Front Center | 765 mm | 765 mm | 789 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 95 mm | 95 mm | 95 mm |
| Stack | 631 mm | 622 mm | 640 mm |
| Reach | 460 mm | 464 mm | 481 mm |
| Top Tube Length | 633 mm | 634 mm | 656 mm |
| Seat Tube Angle | 74.6 ° | 74.6 ° | 74.6 ° |
| Seat Tube Length | 457 mm | 406 mm | 508 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 120 mm | 110 mm | 130 mm |
| Chainstay Length | 496 mm | 496 mm | 496 mm |
| Wheelbase | 1260 mm | 1260 mm | 1284 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm |
| Wheels | 29" | 29" | 29" |
About this model

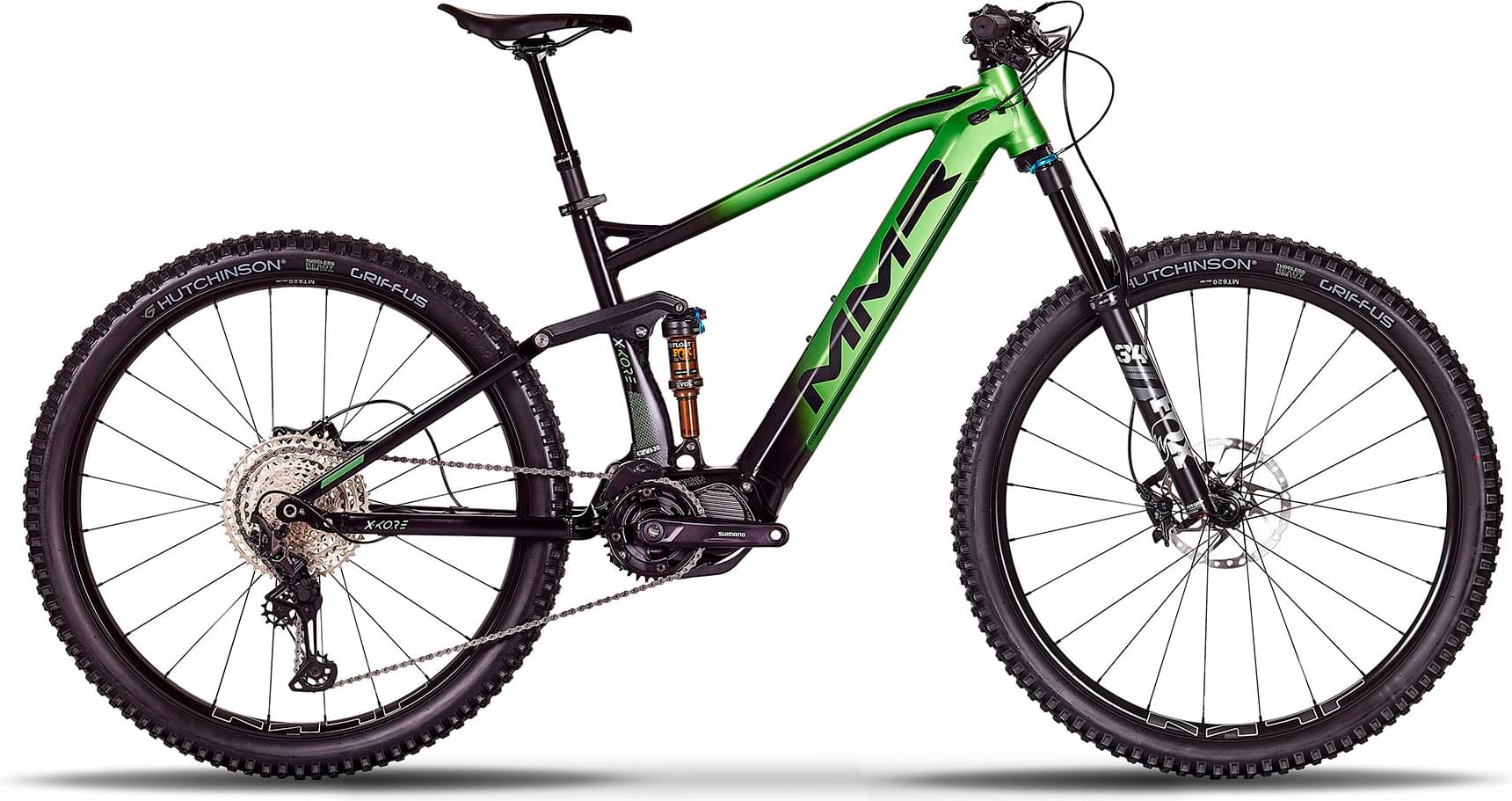

X-KORE 140 140 completes the Mmr E X Kore model. MMR released 3 e-bikes variations of this model so far.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail e-bikes average price
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
When MMR released this model in 2022, its price was 5479$. In conclusion, this e-bike price is 62.82% more expensive than the price of the average Trail e-bike.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
X-KORE 140 140 components
Fork
The Fox Performance Float 34 is included from the factory. It has a travel distance of 140mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When leaving the production line, the X-KORE 140 140 model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
When you want to stop the bike in time, the brakes are vital. The X-KORE 140 140 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Dropper post
A dropper post is included with the X-KORE 140 140. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
