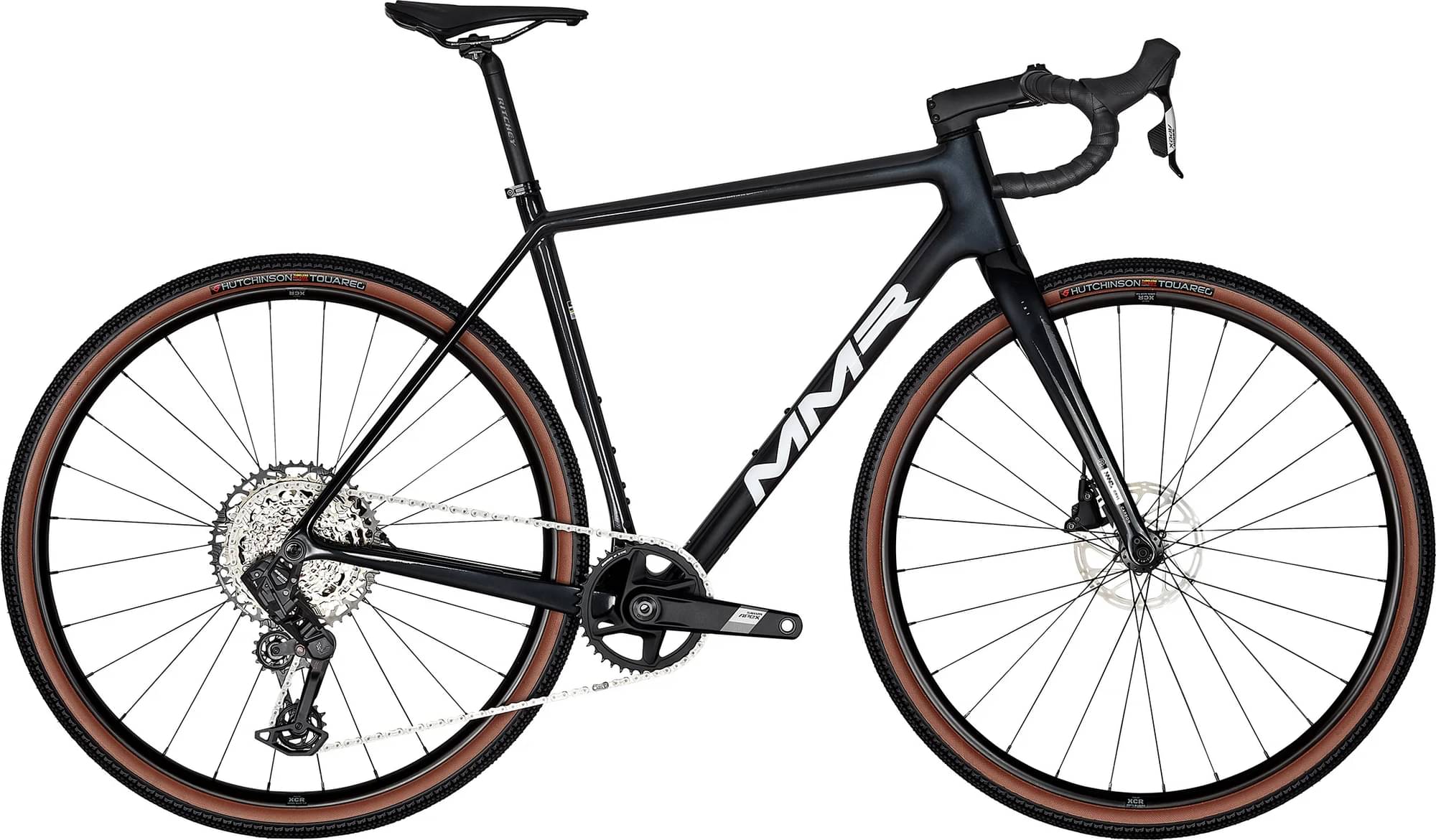

MMR X-Tour 10 2025

2025 Road
Estimate price | 3,024$
Open compare Use advisor
Mmr X Tour 10 2025

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Frame Carbon
  • Groupset GRX 800, GRX 600
  • Suspension Rigid
  • Drivetrain 2 × 12
  • Brakes Shimano GRX 600 Hydraulic Disc
Sizing

Recommended size guide.

  • SM

    158cm - 171cm

  • MD

    168cm - 180cm

  • LG

    178cm - 189cm

  • XL

    186cm - 199cm

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

X-Tour – G3 Carbon Concept Frame. Intermediate modulus carbon fiber. TA 12mm. Fully internal Cable Routing. Flat Mount. PressFit. Head Tube 1.5

Suspension Fork

X-Tour - Carbon Concept Lite Fork. TA 12mm

Drivetrain

Rear Derailleur

Shimano GRX RX820 12V

Cassette

Shimano R7100 11/36T 12V

Crank

Shimano GRX RX610 46/30T 12V

Chain

Shimano M6100

Wheels

Rims

XCR 7000 TLR CL

Tires

Hutchinson Touareg 40 TLR

Brakes

Brakes

Shimano GRX RX610

Cockpit

Stem

Ritchey Logic Switch

Handlebar

Ritchey Butane Comp

Headset

Ritchey Switch

Seat

Saddle

Selle Italia Model Epsilon

Seatpost

Ritchey Logic

Fit data

Geometry

Numbers for sizing and ride feel.

SizeSMMDLGXL
Stack Reach Ratio
1.473 mm1.497 mm1.518 mm1.54 mm
Bottom Bracket Height
279 mm279 mm279 mm279 mm
Front Center
591 mm609 mm627 mm645 mm
Rake
50 mm50 mm50 mm50 mm
Trail
69 mm69 mm69 mm69 mm
Stack
545 mm569 mm592 mm616 mm
Reach
370 mm380 mm390 mm400 mm
Top Tube Length
521 mm543 mm565 mm588 mm
Seat Tube Angle
74.5 °74 °73 °73 °
Seat Tube Length
490 mm530 mm560 mm600 mm
Head Tube Angle
71 °71 °71 °71 °
Head Tube Length
120 mm145 mm170 mm195 mm
Chainstay Length
425 mm425 mm425 mm425 mm
Wheelbase
1006 mm1024 mm1042 mm1060 mm
Bottom Bracket Drop
70 mm70 mm70 mm70 mm
Standover Height
755 mm782 mm809 mm837 mm
Wheels700700700700
Rider Min Height158 cm168 cm178 cm186 cm
Rider Max Height171 cm180 cm189 cm199 cm
