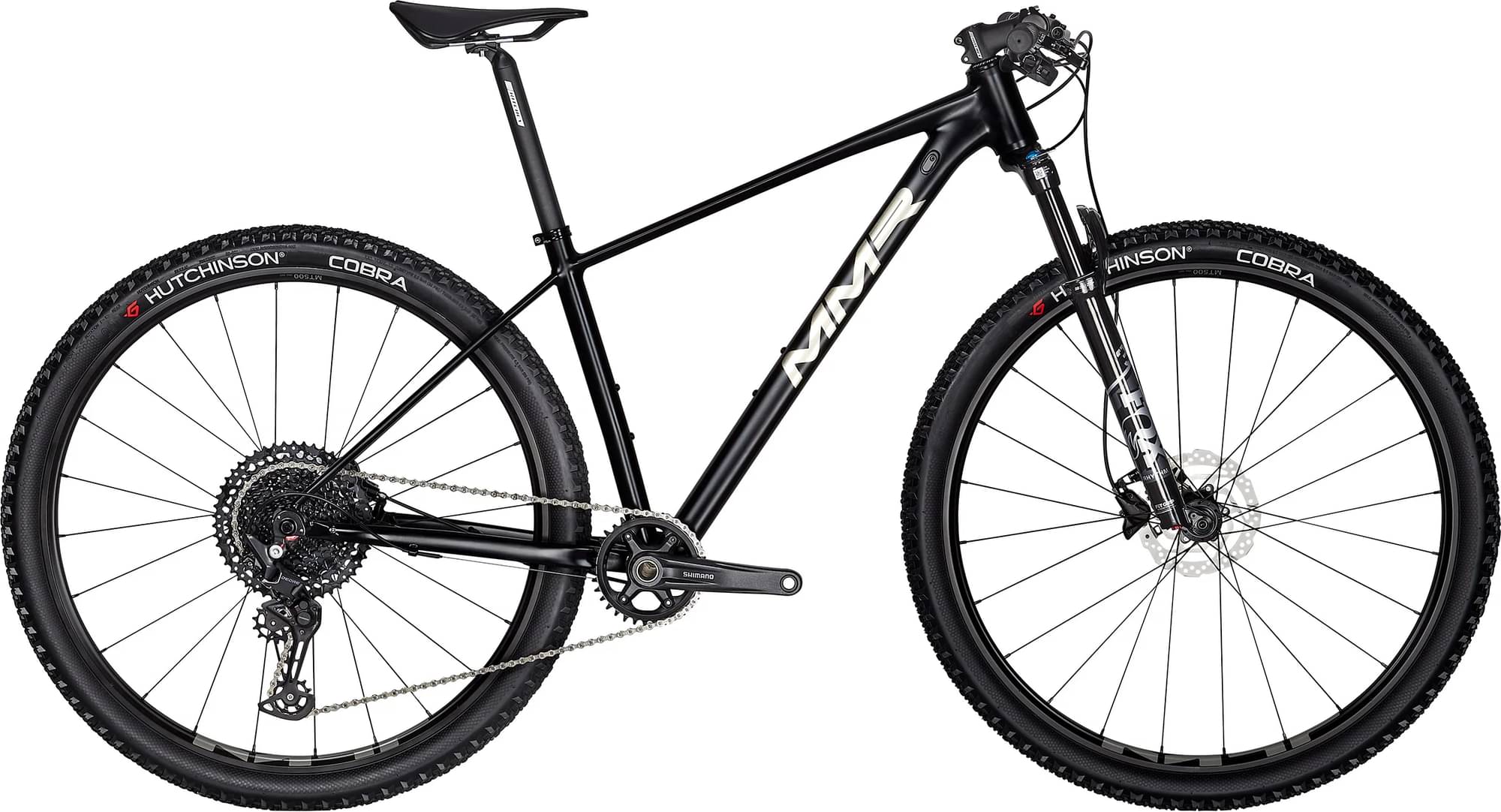

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Fox Rhythm Float 32
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Shimano Alivio Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Zen - G2 Alloy Concept Lite Frame. Aluminum 6061 Hydroformed double butted. TA 12mm. Optimized, Cable Routing. Boost. PostMount. PressFit. Head tube Tapered 1.5
Suspension Fork
Fox 32 Rhythm 100mm
Drivetrain
Rear Derailleur
Shimano Deore M6100 12V
Cassette
Sunrace 11-50T
Crank
Shimano MT-510-1 34T
Chain
Shimano Deore M6100 12V
Wheels
Rims
Shimano MT-500 HG
Tires
Hutchinson Cobra 29x2.10
Brakes
Brakes
Shimano MT-200
Cockpit
Stem
Ritchey Logic
Handlebar
Ritchey Logic
Headset
Ritchey Logic Press Fit Tapered
Seat
Saddle
Selle Italia Model X
Seatpost
Ritchey Logic
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.505 mm | 1.458 mm | 1.432 mm | 1.393 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 663 mm | 685 mm | 707 mm | 728 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 85 mm | 85 mm | 85 mm | 85 mm |
| Stack | 605 mm | 614 mm | 627 mm | 635 mm |
| Reach | 402 mm | 421 mm | 438 mm | 456 mm |
| Top Tube Length | 573 mm | 595 mm | 615 mm | 636 mm |
| Seat Tube Angle | 74.2 ° | 74.2 ° | 74.2 ° | 74.2 ° |
| Seat Tube Length | 394 mm | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 95 mm | 105 mm | 118 mm | 127 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1101 mm | 1123 mm | 1145 mm | 1166 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
