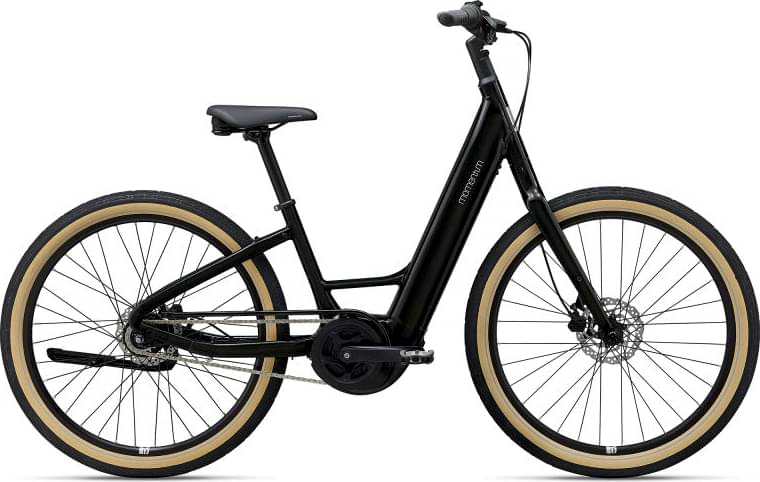

Momentum Vida E+ LDS 2024
2024 E-bike
Estimate price |
2,500$
Weight | 23.26 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Nexus -
Suspension Rigid -
Motor Yamaha 250W 60Nm mid-drive -
Battery EnergyPak 500Wh Compact, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
144cm - 162cm
MD
160cm - 172cm
LG
170cm - 177cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX aluminium, Low Step
Suspension Fork
ALUXX aluminium
Drivetrain
Shift Levers
Shimano Nexus 7sp RevoShift
Cassette
18T
Crank
Steel 38T chain ring, 160mm
Chain
KMC Z1eHX NP/NP, alloy w/ Chainguard
Pedals
Anti-slip
Wheels
Front Hub
Shimano TX505 [F] Nexus 7 [R]
Rear Hub
Shimano TX505 [F] Nexus 7 [R]
Rims
Momentum, 26 aluminum, e-bike optimized
Spokes
Stainless steel
Tires
CST Metropolitan Palm Bay 26x2.35"
Brakes
Brakes
Tektro HD-M275, hydraulic disc, 160mm [F/R]
Brake Levers
Tektro HD-M275
Cockpit
Stem
TDS-807-8 FOV 31.8
Handlebar
TR49A-00S1, aluminium 20D sweep back, rise 50 mm, width: 720mm
Grips
Momentum dual compound
Seat
Saddle
Selle Royal Essenza Relax A0A7
Seatpost
Aluminium 30.9mm
Motor & Battery
Motor
SyncDrive Life, 60Nm, Powered by Yamaha, PedalPlus 6-sensor technology
Battery
EnergyPak 500Wh Compact, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production
Remote
RideControl One ANT+, Smart Assist automatic mode, 5 manual support levels
Charger
Giant EnergyPak 6A smart charger, 60% in 1:25h
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.866 mm | 1.831 mm | 1.799 mm |
| Front Center | 613 mm | 632 mm | 652 mm |
| Rake | 50 mm | 50 mm | 50 mm |
| Trail | 68 mm | 68 mm | 68 mm |
| Stack | 625 mm | 639 mm | 653 mm |
| Reach | 335 mm | 349 mm | 363 mm |
| Top Tube Length | 600 mm | 620 mm | 640 mm |
| Seat Tube Angle | 67 ° | 67 ° | 67 ° |
| Seat Tube Length | 380 mm | 430 mm | 475 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 190 mm | 205 mm | 210 mm |
| Chainstay Length | 480 mm | 480 mm | 480 mm |
| Wheelbase | 1089 mm | 1108 mm | 1128 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm |
| Standover Height | 473 mm | 473 mm | 473 mm |
| Wheels | 26" | 26" | 26" |
| Rider Min Height | 144 cm | 160 cm | 170 cm |
| Rider Max Height | 162 cm | 172 cm | 177 cm |
