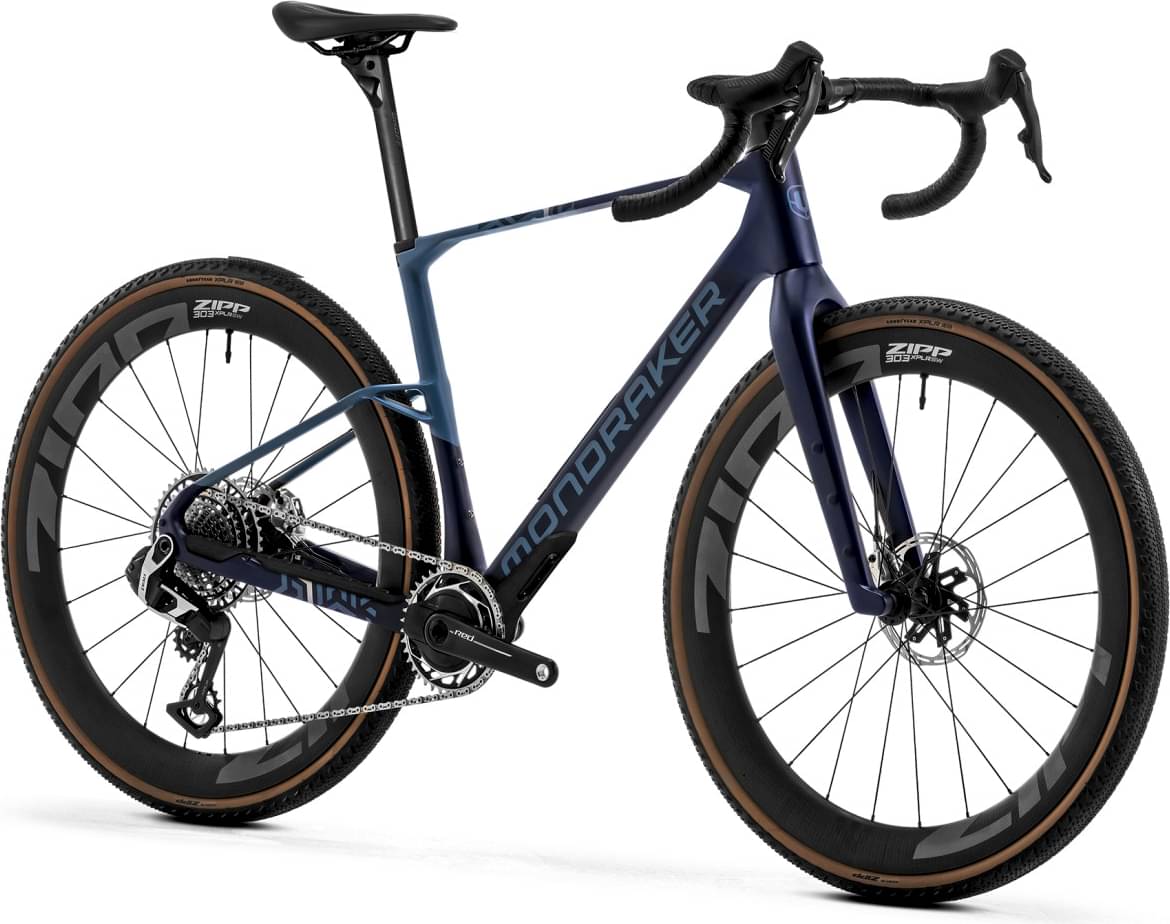

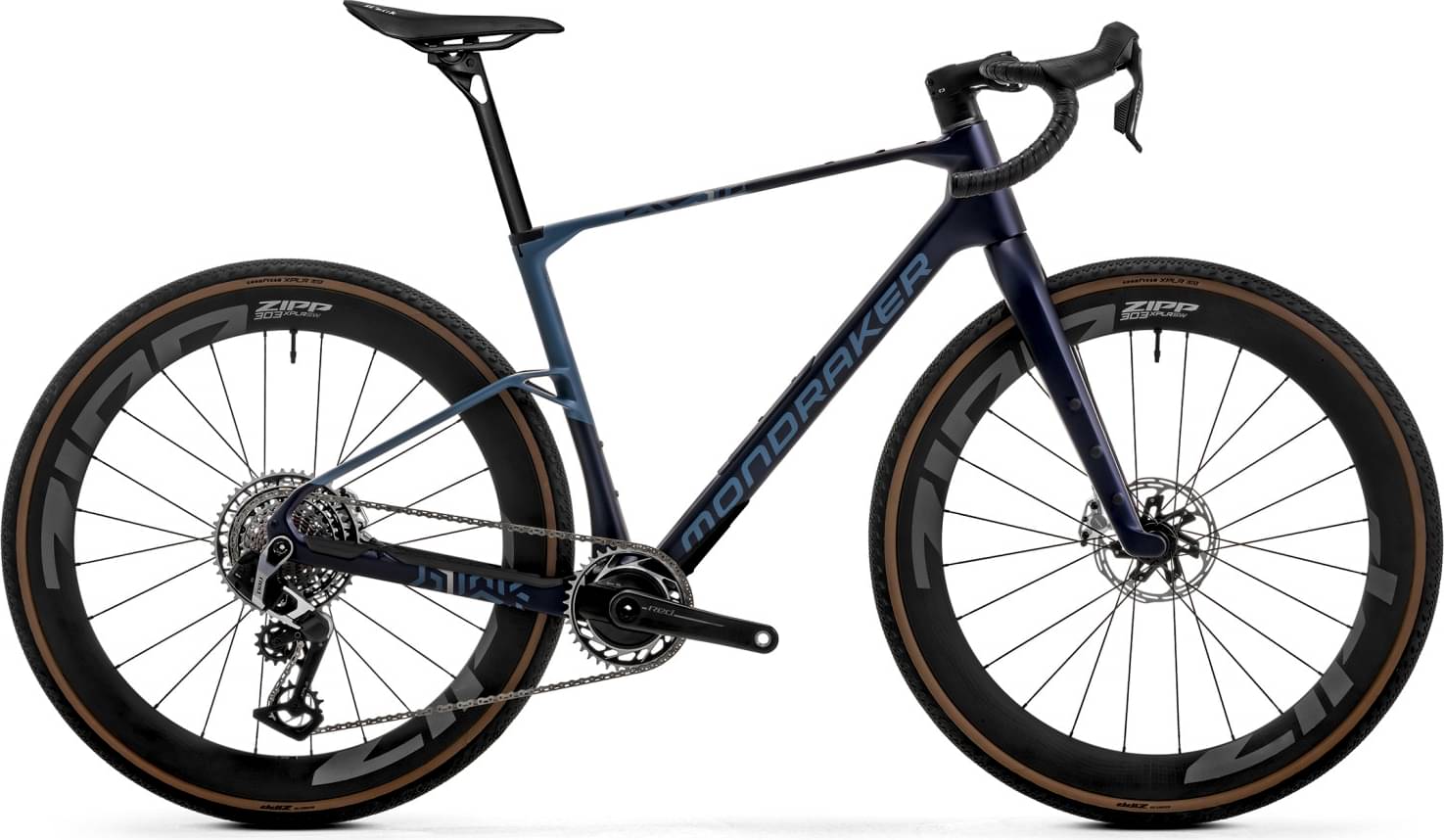

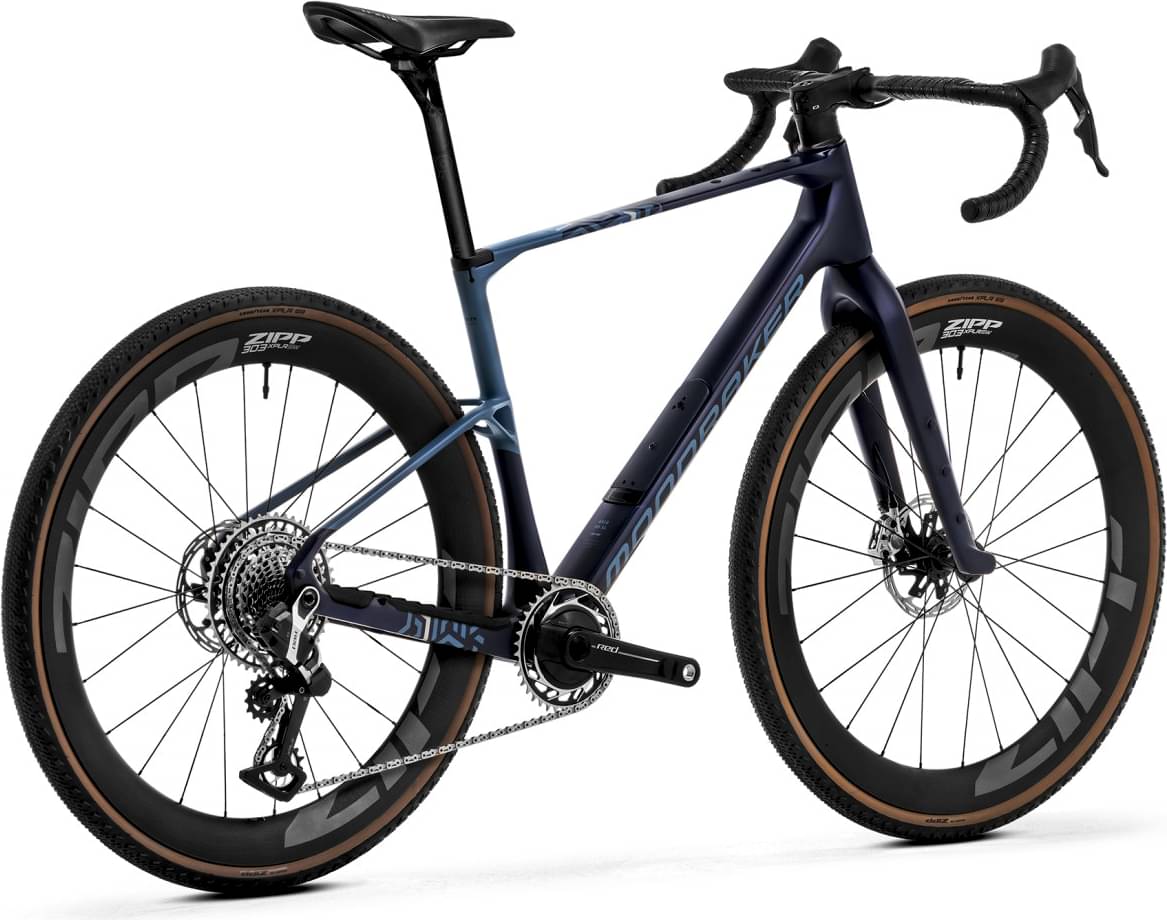

Mondraker ARID CARBON RR SL 2025
2025 Road
Estimate price |
11,051$
Weight | 7.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset RED XPLR eTap -
Suspension Rigid -
Drivetrain 1 × 13 Electronic -
Brakes SRAM RED Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 173cm
MD
169cm - 180cm
MD/LG
175cm - 186cm
LG
180cm - 192cm
XL
188cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Arid Stealth Air Carbon, in-tube storage, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, 1X drivetrain design, Flatmount brake compatible.
Suspension Fork
Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork
Drivetrain
Rear Derailleur
SRAM RED XPLR AXS, Magic wheel, cage lock, 1x13s,
Shift Levers
SRAM RED XPLR AXS, Magic wheel, cage lock, 1x13s,
Crank
SRAM RED XPLR carbon, Power meter, DUB axle, thread-mount chainring, S size: 170mm M size: 170mm ML size: 172,5mm L size: 172,5mm XL size: 175mm, CL 47,5, Rings: SRAM 40T Thread Mount, alloy, narrow-wide,
Bottom Bracket
SRAM DUB T47 BSA, sealed bearings, 85,5mm
Chain
SRAM RED, 13s, Powerlock
Wheels
Front Hub
ZR1 Disc Brake, 12x100mm,Centerlock
Rear Hub
ZR1 Disc Brake, 12x142mm, XDR 6 Pawls, Compression Springs, Centerlock. XD Freehub
Rims
Zipp 303 XPLR SW, 32mm internal width,54mm rim depth, hookless, infinity hubs, 24 spokes
Spokes
CX-Ray - Black
Tires
Front: Goodyear XPLR Inter 700x45, Rear: Goodyear XPLR Inter 700x45
Brakes
Brakes
Front: SRAM RED AXS 2 piece caliper, Paceline 160mm Centerlock rotor, steel-backed organic pad, Rear: SRAM RED AXS 2 piece caliper, Paceline 160mm Centerlock rotor, steel-backed organic pad
Brake Levers
SRAM RED, contact point adjustment, tooled reach adjust, carbon levers
Cockpit
Stem
Onoff Semi-Integrated, 31.8mm barbore, rise: -7°, length: S size: 60mm, M size: 70mm, ML size 70mm, L size: 80mm, XL size: 90mm
Handlebar
OnOff S9 GR CARBON 16º bar flare. Width sizes S size: 440mm M size: 440mm L size: 460mm XL size: 460mm
Grips
OnOff HEX Bartape
Headset
Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, Internal cable routing.
Seat
Saddle
FIZIK Vento Argo 00 140mm
Seatpost
Onoff S9 Carbon 15-R,15mm offset, diameter 27.2mm, length: S size: 400mm, M size: 400mm, ML size 400mm, L size: 450m, XL size: 450mm
Fit data

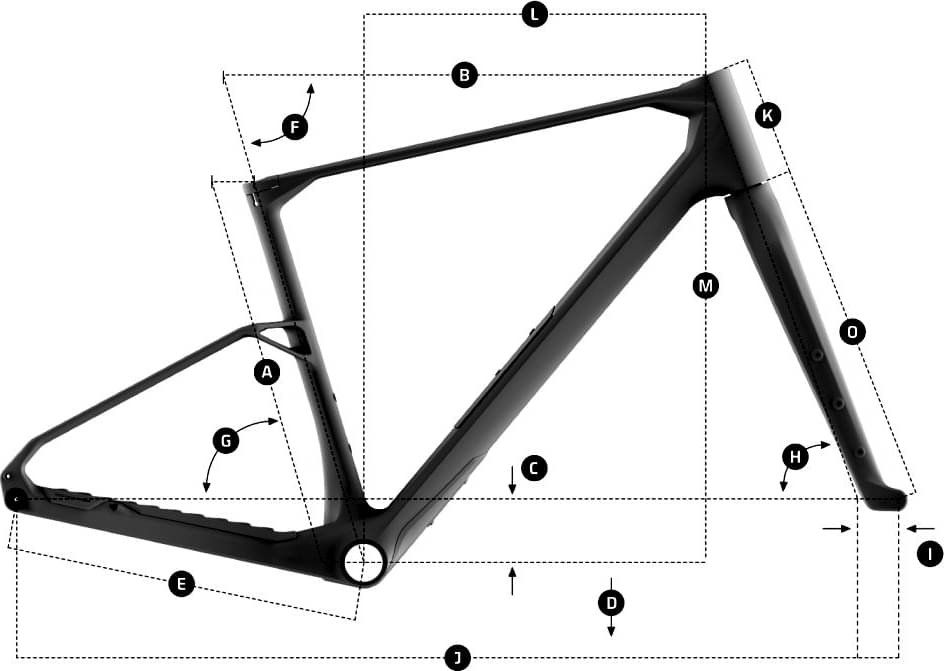

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.482 mm | 1.438 mm | 1.463 mm | 1.439 mm |
| Bottom Bracket Height | 269 mm | 269 mm | 269 mm | 269 mm | 269 mm |
| Front Center | 589 mm | 621 mm | 653 mm | 675 mm | 707 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 77 mm | 77 mm | 77 mm | 77 mm | 77 mm |
| Stack | 548 mm | 572 mm | 591 mm | 619 mm | 642 mm |
| Reach | 363 mm | 386 mm | 411 mm | 423 mm | 446 mm |
| Top Tube Length | 520 mm | 550 mm | 580 mm | 600 mm | 630 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 410 mm | 450 mm | 480 mm | 510 mm | 540 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 100 mm | 125 mm | 145 mm | 175 mm | 200 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1003 mm | 1035 mm | 1067 mm | 1089 mm | 1121 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 162 cm | 169 cm | 175 cm | 180 cm | 188 cm |
| Rider Max Height | 173 cm | 180 cm | 186 cm | 192 cm | 199 cm |
