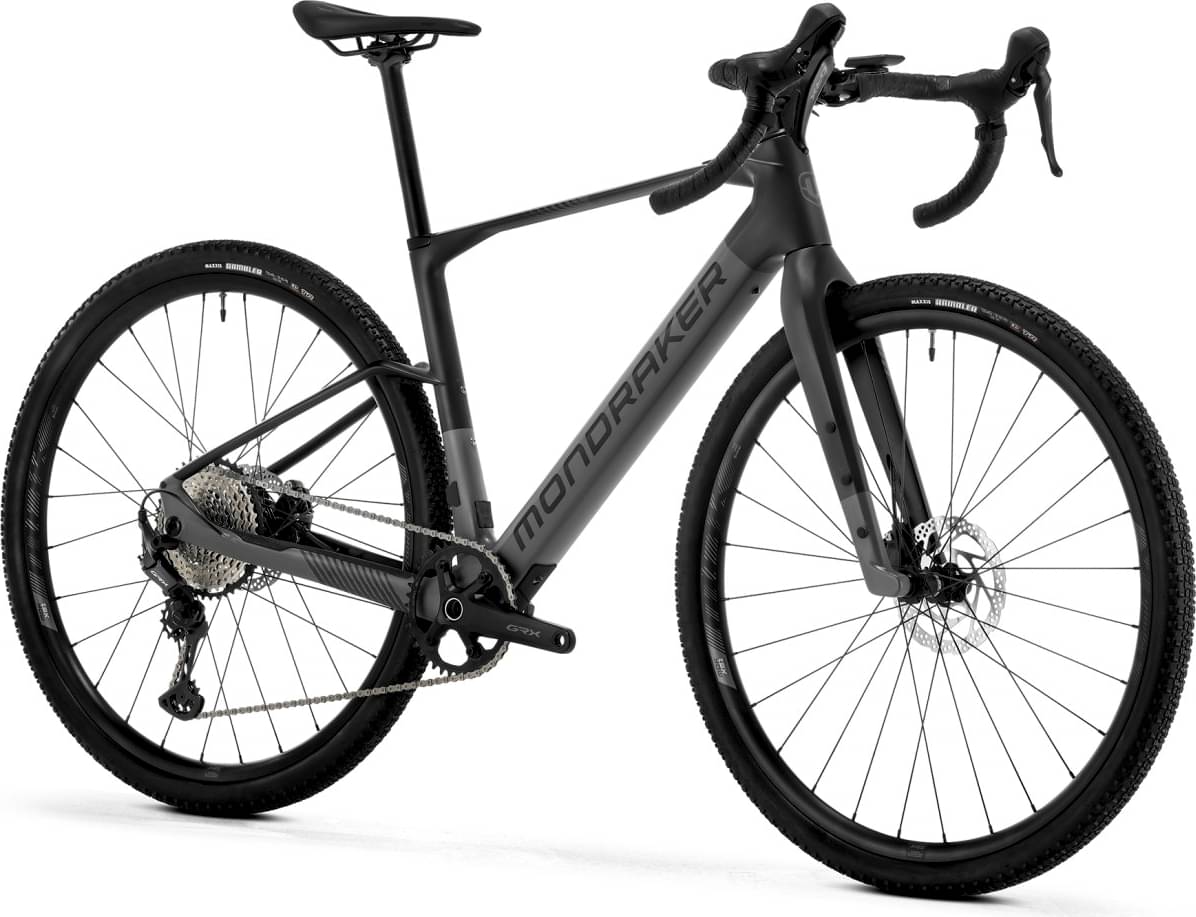

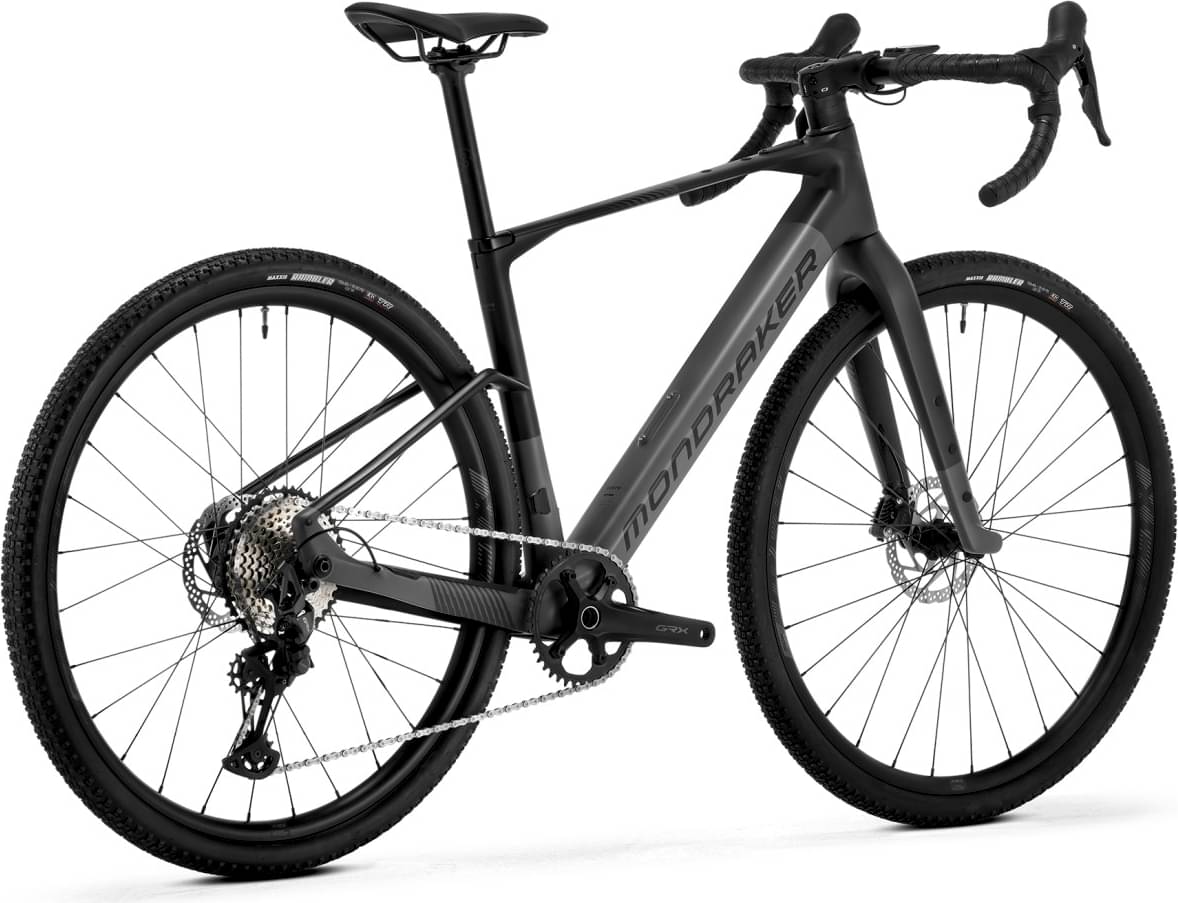

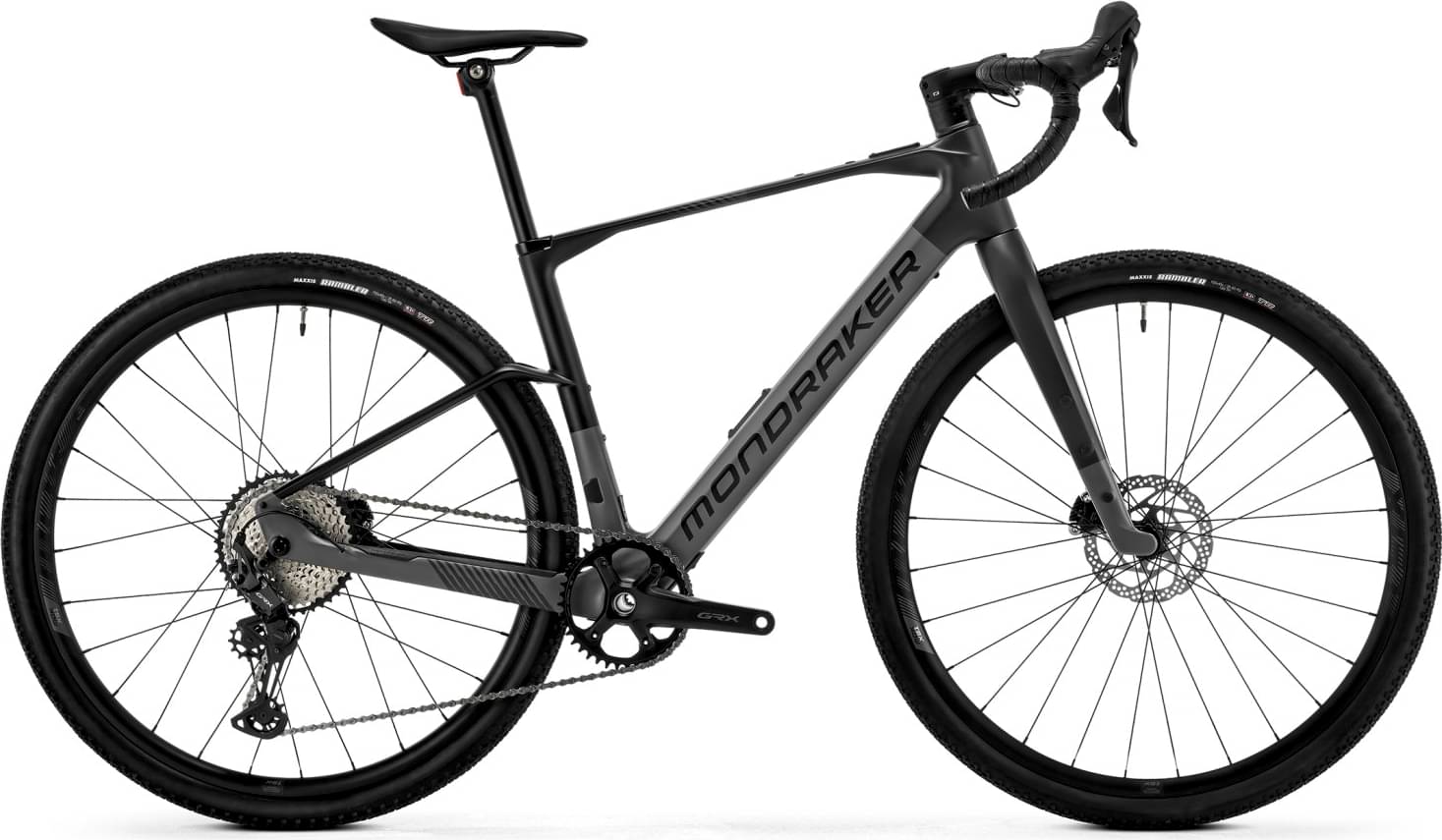

Mondraker DUSTY 2024
2024 E-bike
Estimate price |
5,753$
Weight | 13.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset GRX 800, GRX 600 -
Suspension Rigid -
Motor MAHLE 55Nm hub-drive -
Battery Mahle X20 IX350Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
e-Gravel Stealth Air Carbon, pressfit 386 EVO bottom bracket, tapered head tube, HHG internal cable routing, integrated internal non-removable battery, 12x142mm rear axle, 1X or 2X drivetrain design, Flatmount brake compatible, integrated dropout speed sensor.
Suspension Fork
Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork
Drivetrain
Rear Derailleur
Shimano GRX RX-822-GS, 12s
Shift Levers
Shimano GRX RX-610 dual control, alloy lever
Crank
Shimano GRX RX-610, S size: 170mm M size: 170mm ML size: 172,5mm L size: 172,5mm XL size: 175mm, CL 49,7, Rings: Shimano 40T, direct mount, steel
Bottom Bracket
Mahle DUB pressfit, sealed bearings, w/ torque sensor
Chain
Shimano SLX M7100, Quick link
Wheels
Front Hub
Novatec D041, Boost 12x100mm, sealed bearings, IS 6 bolts
Rear Hub
Mahle X20 Drive Unit, MS freehub
Rims
MDK-XG1, 25mm internal width, tubeless ready, 28 spokes
Spokes
CN round stainless steel
Tires
Front: Maxxis Rambler 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead, Rear: Maxxis Rambler 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead
Brakes
Brakes
Front: Shimano GRX RX-610, RX-400 caliper, RT56 IS 6 bolt rotor, resin pad, Rear: Shimano GRX RX-610, RX-400 caliper, RT56 IS 6 bolt rotor, resin pad
Brake Levers
Shimano GRX RX-610, contact point adjustment, tooled reach adjust, aluminium lever.
Cockpit
Stem
OnOff S3 GR 6061 T6 Alloy, 31.8mm barbore, rise: -7º, length: S size: 60mm, M size: 70mm L size: 80mm, XL size: 90mm
Handlebar
OnOff S3 GR 16º bar flare. Width sizes S size: 440mm M size: 440mm L size: 460mm XL size: 460mm
Grips
OnOff HEX Bartape
Headset
Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, Internal cable routing.
Seat
Saddle
FIZIK Terra Argo X7 150mm
Seatpost
Onoff S3 0-R, diameter 31.6mm, length 400mm
Motor & Battery
Motor
Mahle X20 Drive Unit
Battery
Mahle X20 IX350Wh
Fit data

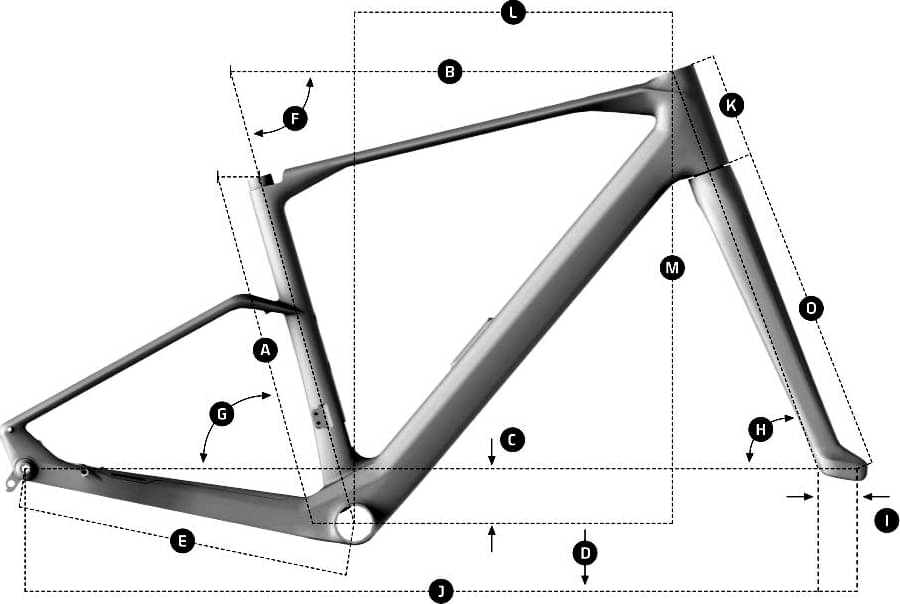

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.394 mm | 1.422 mm | 1.403 mm | 1.427 mm |
| Bottom Bracket Height | 286 mm | 286 mm | 286 mm | 286 mm |
| Front Center | 619 mm | 641 mm | 666 mm | 694 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 79 mm | 79 mm | 79 mm | 79 mm |
| Stack | 548 mm | 576 mm | 595 mm | 628 mm |
| Reach | 393 mm | 405 mm | 424 mm | 440 mm |
| Top Tube Length | 550 mm | 570 mm | 595 mm | 620 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 440 mm | 460 mm | 500 mm | 530 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 125 mm | 150 mm | 175 mm | 210 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1034 mm | 1056 mm | 1082 mm | 1110 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
