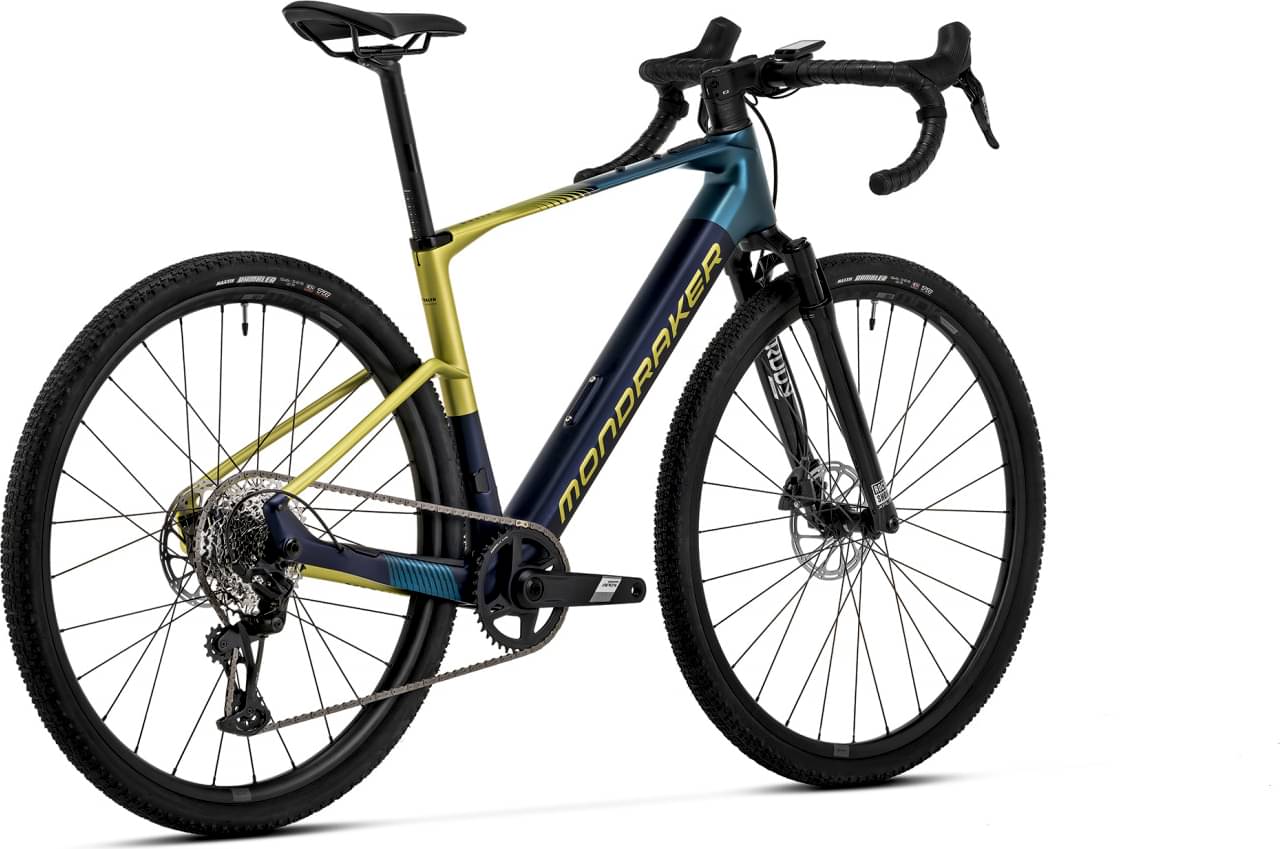

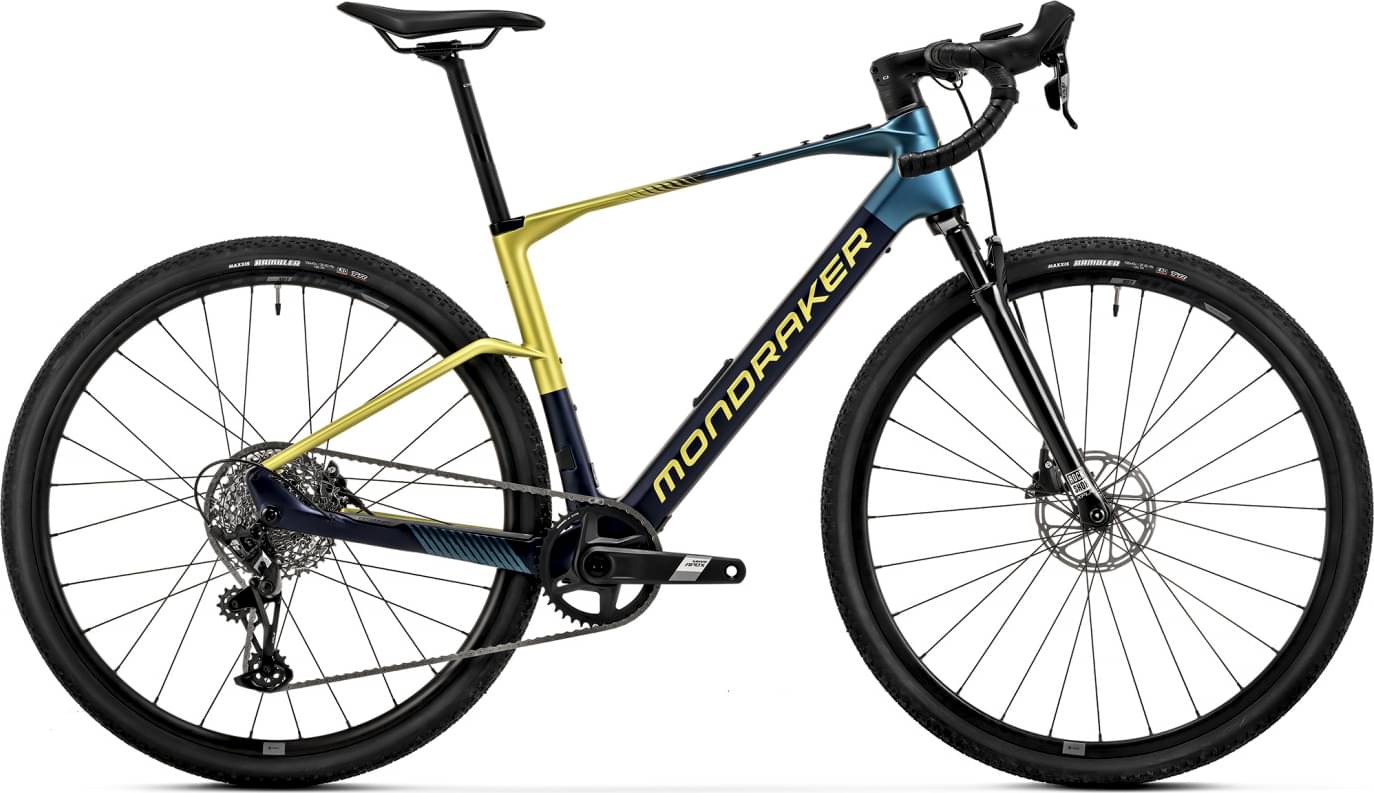

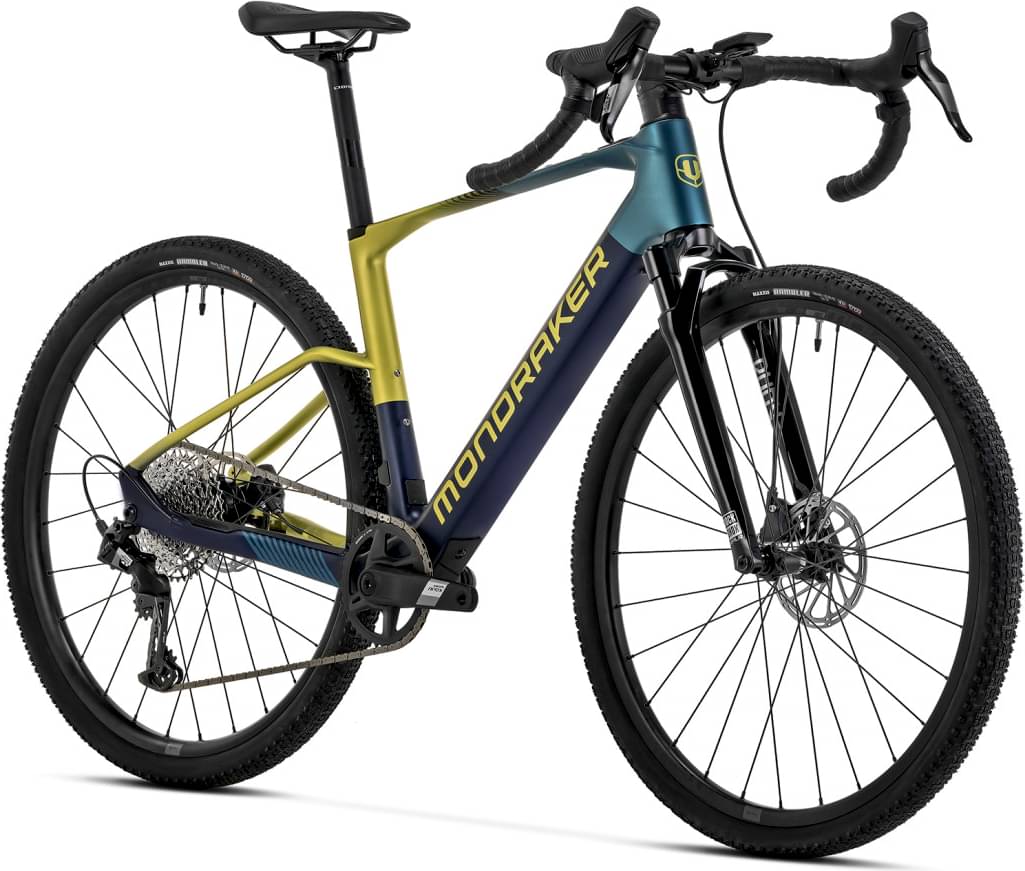

Mondraker DUSTY R 2024
2024 E-bike
Estimate price |
6,231$
Weight | 14.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 40mm -
Fork RockShox Rudy XPLR
-
Groupset Apex XPLR -
Suspension Hardtail -
Motor MAHLE 55Nm hub-drive -
Battery Mahle X20 IX350Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
e-Gravel Stealth Air Carbon, pressfit 386 EVO bottom bracket, tapered head tube, HHG internal cable routing, integrated internal non-removable battery, 12x142mm rear axle, 1X or 2X drivetrain design, Flatmount brake compatible, integrated dropout speed sensor.
Suspension Fork
RockShox Rudy Base, 40mm travel, 12x100mm maxle stealth, 45mm offset
Drivetrain
Rear Derailleur
SRAM Apex XPLR 12s
Shift Levers
SRAM Apex D1 12s, X-Actuation 1:1, single click
Crank
SRAM Apex 1 Wide, S: 170mm, M: 172,5mm, L: 172,5mm, XL: 175mm., Rings: SRAM X-Sync Eagle 40T direct mount, alloy, narrow-wide,
Bottom Bracket
Mahle DUB pressfit, sealed bearings, w/ torque sensor
Chain
SRAM Apex, 12s, Powerlock
Wheels
Front Hub
Novatec D041, Boost 12x100mm, sealed bearings, IS 6 bolts
Rear Hub
Mahle X20 Drive Unit, HG freehub
Rims
MDK-XG1, 23mm internal width, tubeless ready, 28 spokes
Spokes
CN round stainless steel
Tires
Front: Maxxis Rambler 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead, Rear: Maxxis Rambler 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead
Brakes
Brakes
Front: SRAM Apex 1, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad, Rear: SRAM Apex, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake Levers
SRAM Apex, contact point adjustment, tooled reach adjust, aluminum levers
Cockpit
Stem
OnOff e-gravel 6061 T6 Alloy, 31.8mm barbore, rise: -7º, length: S size: 60mm, M size: 70mm L size: 80mm, XL size: 90mm
Handlebar
OnOff gravel 16º bar flare. Width sizes S size: 440mm M size: 440mm L size: 460mm XL size: 460mm
Grips
Barium gravel dark grey
Headset
OnOff e-gravel tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Seat
Saddle
FIZIK Terra Argo X7 150mm
Seatpost
OnOff Barium gravel microadjust diameter 27.2mm, length 400mm
Motor & Battery
Motor
Mahle X20 Drive Unit
Battery
Mahle X20 IX350Wh
Fit data

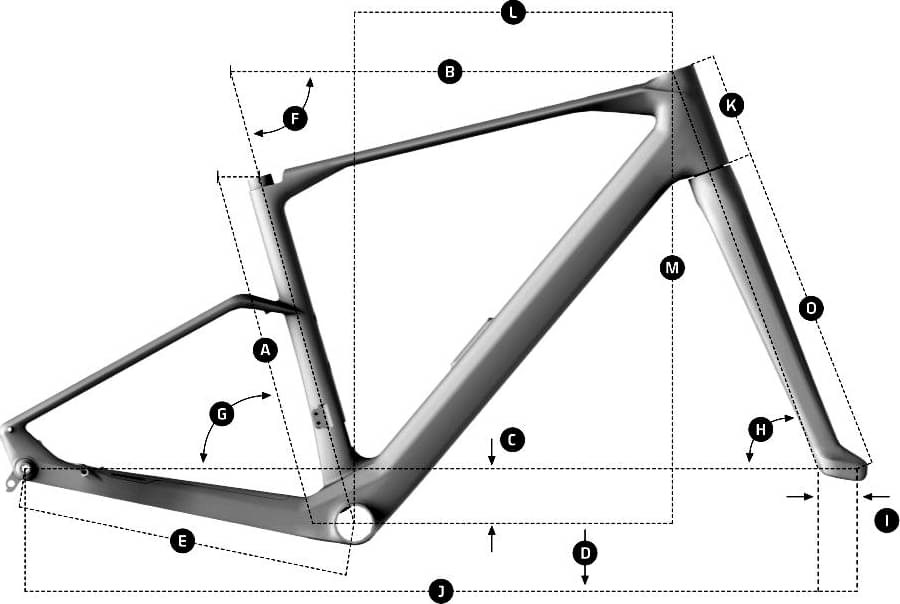

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.394 mm | 1.422 mm | 1.403 mm | 1.427 mm |
| Bottom Bracket Height | 286 mm | 286 mm | 286 mm | 286 mm |
| Front Center | 619 mm | 641 mm | 666 mm | 694 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 79 mm | 79 mm | 79 mm | 79 mm |
| Stack | 548 mm | 576 mm | 595 mm | 628 mm |
| Reach | 393 mm | 405 mm | 424 mm | 440 mm |
| Top Tube Length | 550 mm | 570 mm | 595 mm | 620 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 440 mm | 460 mm | 500 mm | 530 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 125 mm | 150 mm | 175 mm | 210 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1034 mm | 1056 mm | 1082 mm | 1110 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
