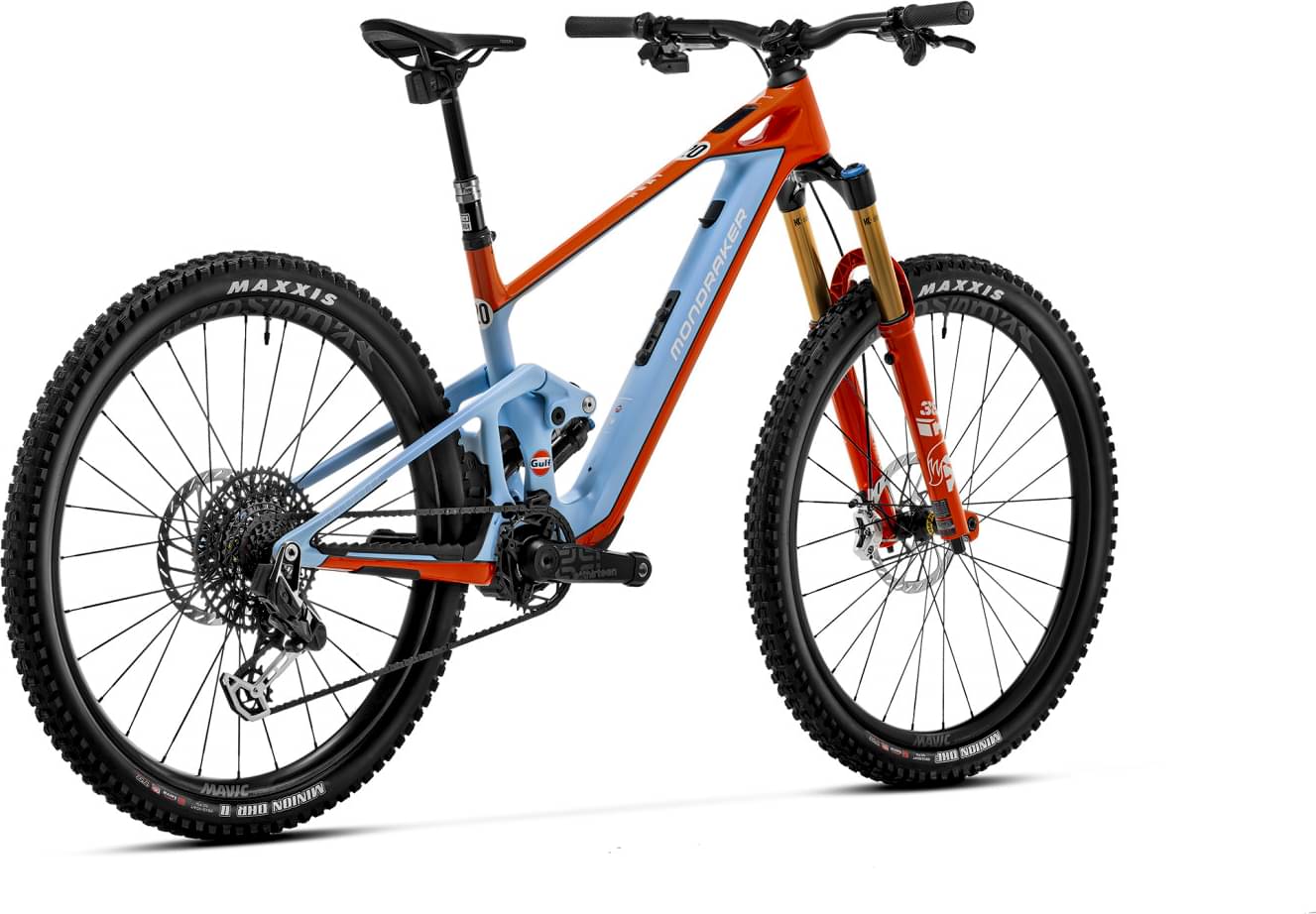

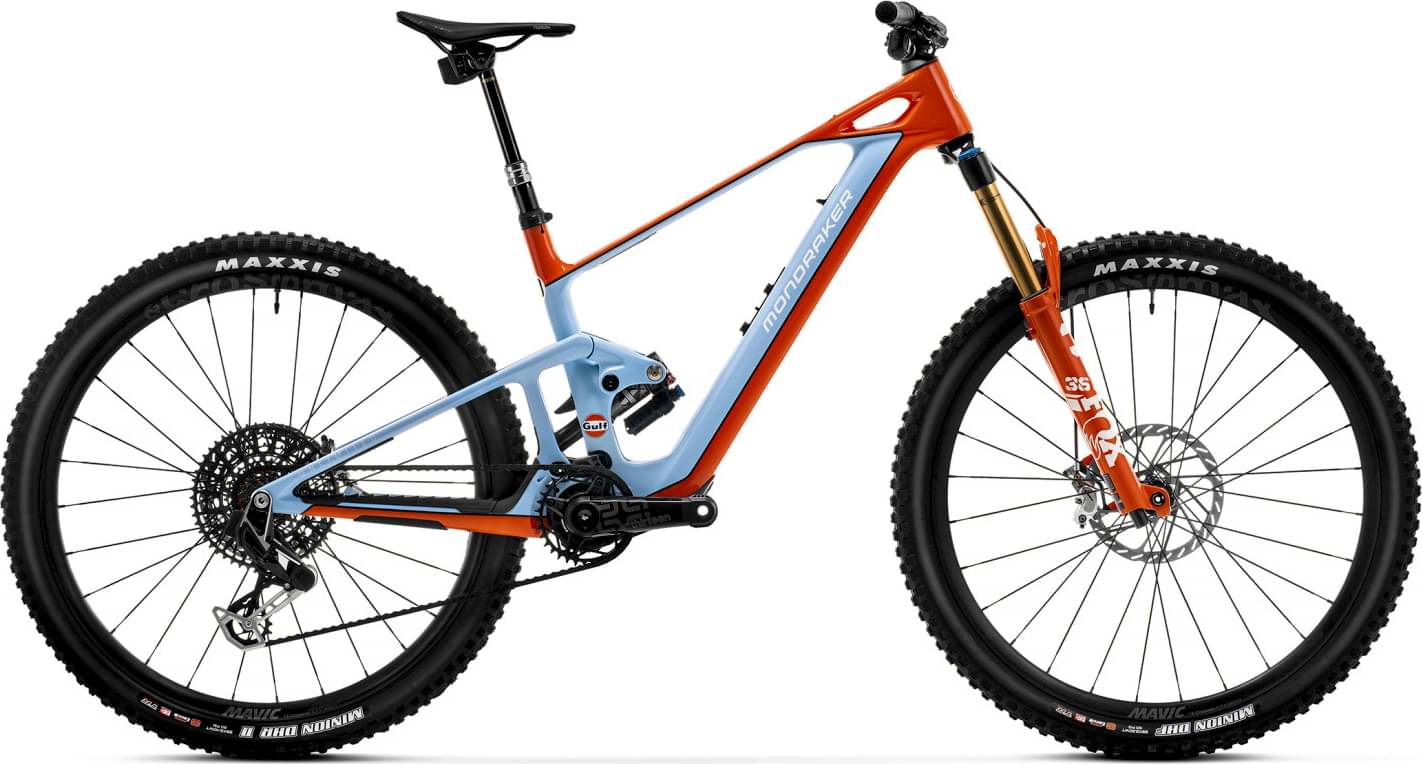

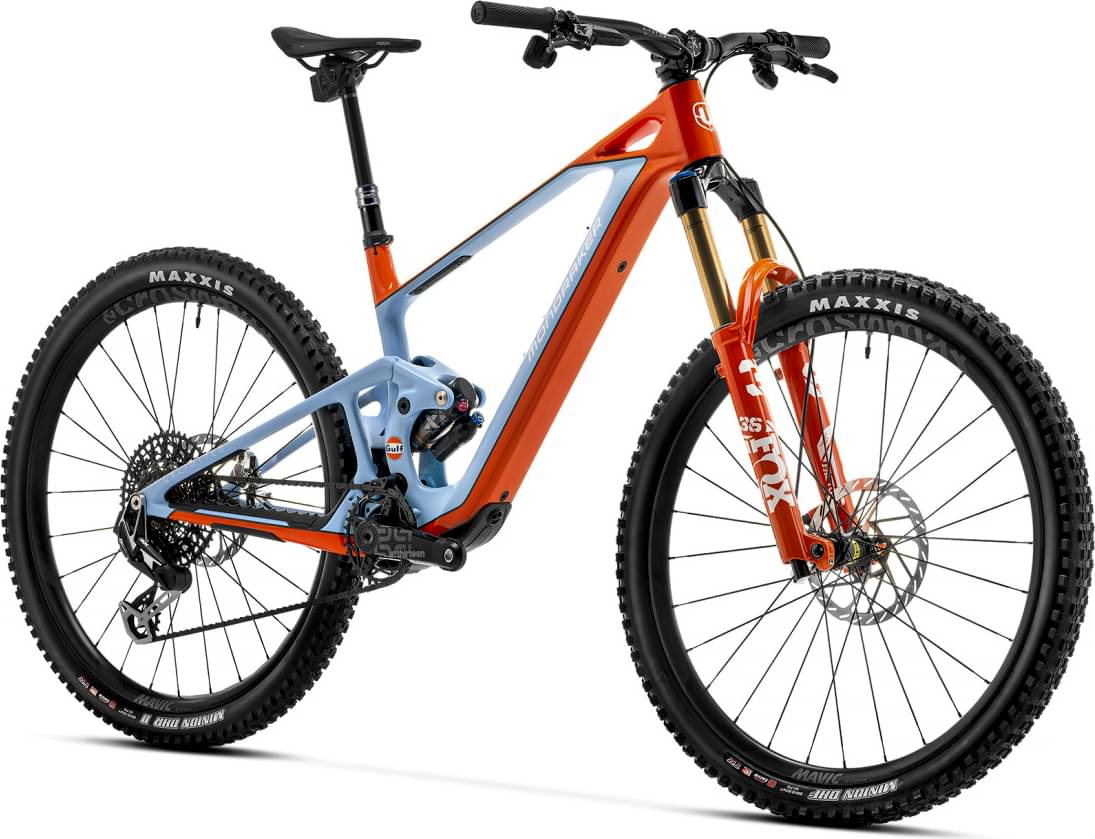

Mondraker NEAT UNLIMITED GULF 2024
2024 E-bike
Estimate price |
15,924$
Weight | 17.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Factory Float 36
-
Groupset XX Eagle Transmission, e*thirteen TRS Race -
Suspension Full -
Motor TQ mid-drive -
Battery TQ HPR-50 360Wh integrated and removable -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
Suspension Fork
Fox 36 29 Float GRIP X2 Factory Kashima, Gloss Orange, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
Rear Shock
Fox Float X Factory Kashima EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Drivetrain
Rear Derailleur
SRAM XX Eagle AXS, T-Type roller bearing clutch, cage lock, long carbon cage, 1x12s
Shift Levers
SRAM Eagle AXS Pod MMX, 12s
Crank
E.13 TRS Race carbon ebike, S size: 165mm M size: 165mm L size: 170mm XL size: 170mm, Rings: SRAM X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD
Chain
SRAM X0 Eagle T-Type, 12s, Powerlock
Wheels
Front Hub
Mavic Infinity hub, Boost 15x110mm, IS 6 bolts
Rear Hub
Mavic Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts XD freehub
Rims
Mavic E-CrossMax Carbon XL R, 29 Boost 30mm internal width, hookless, tubeless ready, 28 spokes
Spokes
Mavic 28 straight-pull double butted spokes
Tires
Front: Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead, Rear: Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Brakes
Brakes
Front: SRAM Code Ultimate Stealth, oversized 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed organic pads, Rear: SRAM Code Ultimate Stealth, oversized 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake Levers
SRAM Code Ultimate, SwingLink and lever pivot bearings, tools-free reach adjust
Cockpit
Stem
Onoff Krypton FG 30mm, CNC, 31.8mm barbore
Handlebar
Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips
Onoff Desert, 1lock-on, 135mm
Headset
Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
Seat
Saddle
Fizik Terra Aidon Slim X5
Seatpost
RockShox Reverb Stealth AXS, diameter 31.6mm S size: 340x125mm M size: 390x150mm L size: 440x170mm XL size: 440x170mm
Motor & Battery
Motor
TQ HPR-50
Battery
TQ HPR-50 360Wh integrated and removable
Fit data

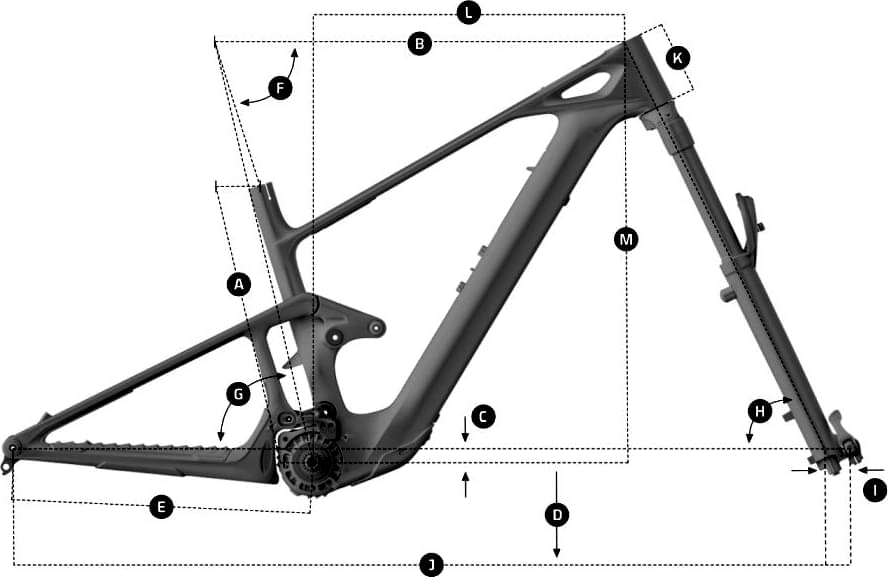

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.391 mm | 1.332 mm | 1.297 mm | 1.262 mm |
| Bottom Bracket Height | 348 mm | 348 mm | 348 mm | 348 mm |
| Front Center | 786 mm | 806 mm | 826 mm | 846 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 130 mm | 130 mm | 142 mm | 146 mm |
| Stack | 626 mm | 626 mm | 642 mm | 650 |
| Reach | 450 mm | 470 mm | 495 mm | 515 mm |
| Top Tube Length | 595 mm | 615 mm | 640 mm | 660 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 380 mm | 420 mm | 450 mm | 490 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 110 mm | 110 mm | 130 mm | 140 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1235 mm | 1255 mm | 1275 mm | 1295 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
