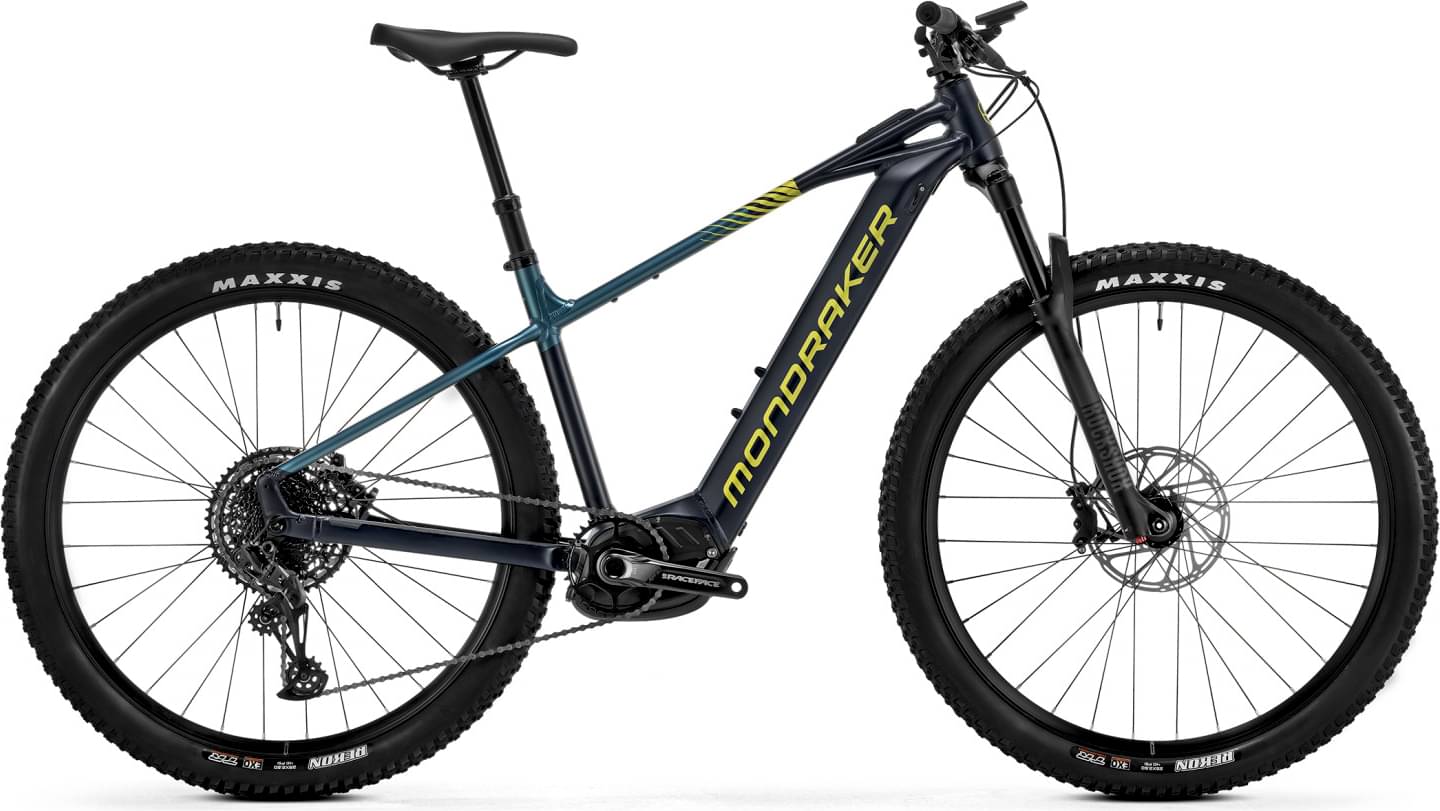

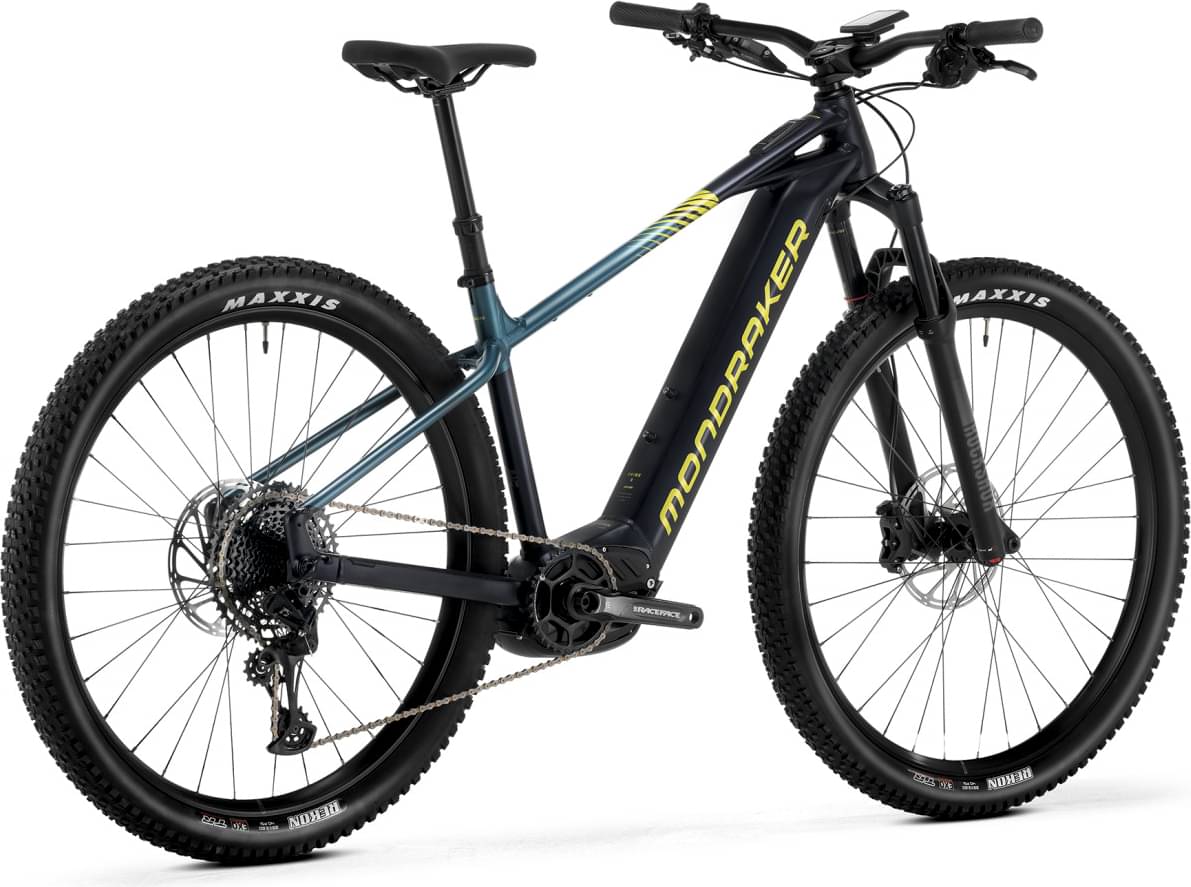

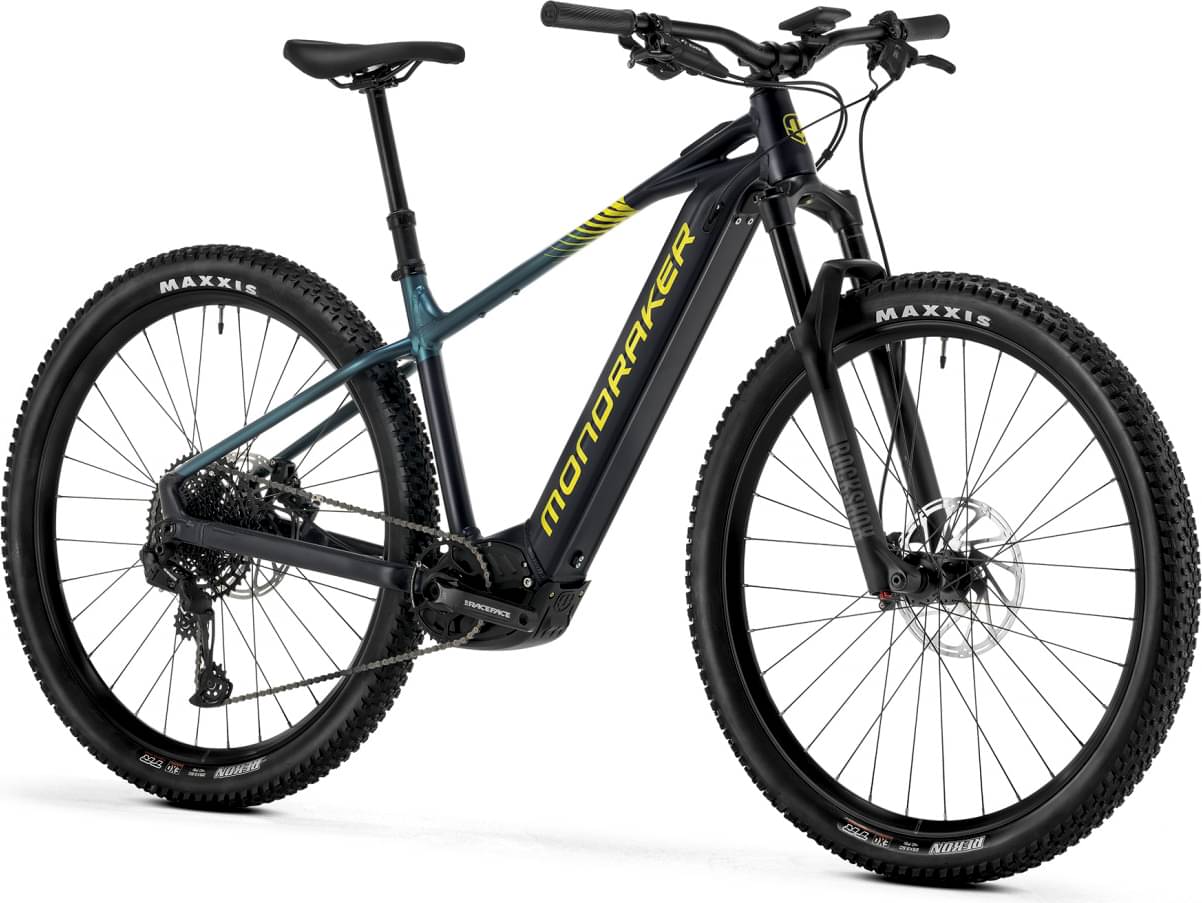

Mondraker PRIME R 2024
2024 E-bike
Estimate price |
5,554$
Weight | 22.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork RockShox Recon Gold RL
-
Groupset SX Eagle -
Suspension Hardtail -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch Powertube 750Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Prime Xtralite 6061 Full Butted Alloy, Forward Geometry, intenal non-removable battery, tapered head tube, Boost 12x148mm rear axle, integrated dropout speed sensor
Suspension Fork
RockShox Recon Gold RL Remote 29, 120mm, Motion control, Solo Air, tapered steerer tube, Boost 15x110mm axle, 30mm aluminum stanchions, offset 42mm. Settings: Onelock 2 pos remote compression (open/lock), rebound, air preload
Drivetrain
Rear Derailleur
SRAM SX Eagle,12s
Shift Levers
SRAM Trigger SX Eagle, 12s, X-Actuation 1:1, single click
Crank
Race Face Aeffect-R ebike, 160mm, Rings: SRAM X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Chain
SRAM SX Eagle, 12s, Powerlock
Wheels
Front Hub
Mavic, Boost 15x110mm, IS 6 bolts
Rear Hub
Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, HG freehub
Rims
Mavic E-CrossRide 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
Spokes
Mavic J-bend double butted, contactless lacing
Tires
Front: Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead, Rear: Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead
Brakes
Brakes
Front: SRAM DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads, Rear: SRAM DB8, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake Levers
SRAM DB8, tool reach adjust, lever pivot bushings
Cockpit
Stem
Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar
Onoff S3 1.0 6061 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.
Grips
Onoff Beehive, 1lock-on, 135mm
Headset
Onoff ZS44/ZS56, 1-1/8", 1.5" head tube, ACB sealed bearings, top 42x30x7x45ºx45º, bottom 52x40x8x45ºx45º
Seat
Saddle
MDK ebike black
Seatpost
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), L size: 180-155mm (468-275mm), XL size: 210-185mm (528-305mm)
Motor & Battery
Motor
New Bosch Performance Line CX Cruise (25Km/h) SMART SYSTEM (BDU384Y)
Battery
Bosch Powertube 750Wh
Fit data

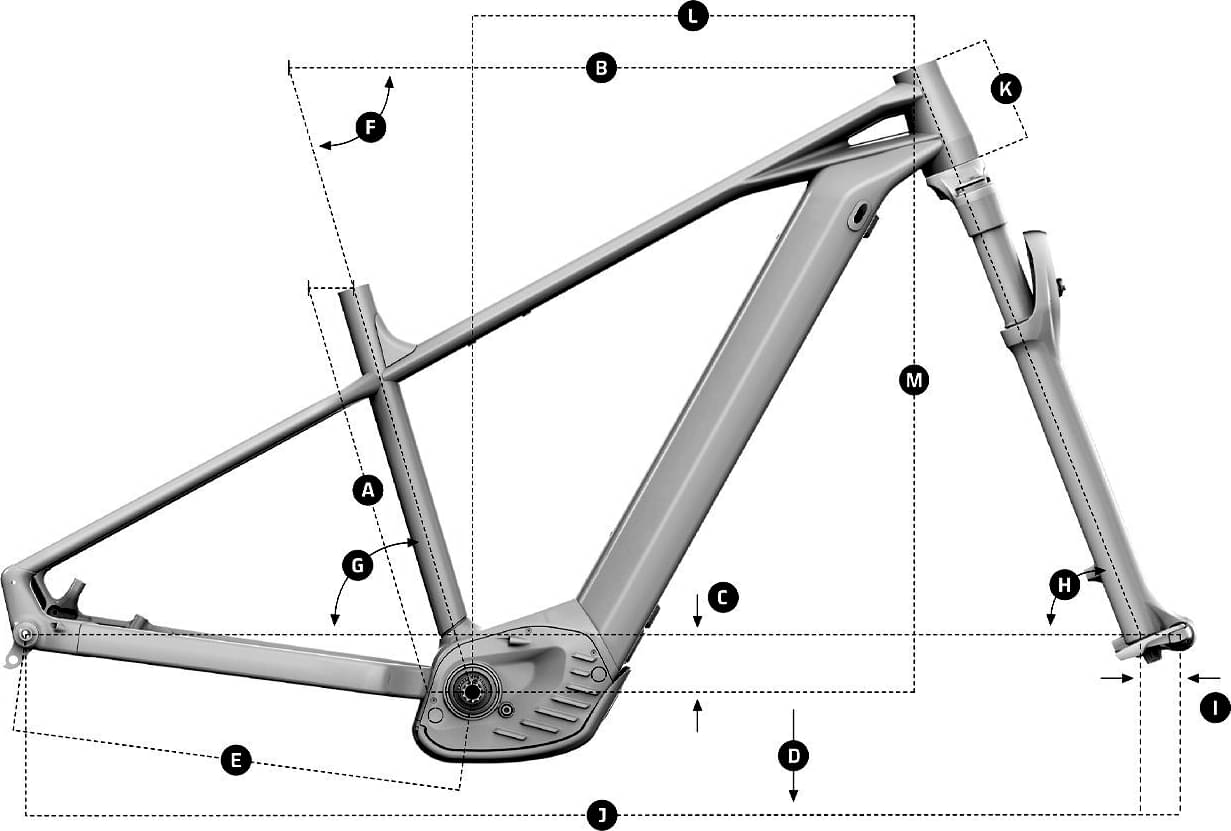

Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.561 mm | 1.506 mm | 1.407 mm | 1.371 mm | 1.303 mm |
| Bottom Bracket Height | 318 mm | 318 mm | 318 mm | 318 mm | 318 mm |
| Front Center | 690 mm | 705 mm | 734 mm | 761 mm | 791 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 89 mm | 89 mm | 89 mm | 94 mm | 89 mm |
| Stack | 640 mm | 640 mm | 640 mm | 658 mm | 658 mm |
| Reach | 410 mm | 425 mm | 455 mm | 480 mm | 505 mm |
| Top Tube Length | 600 mm | 615 mm | 645 mm | 670 mm | 700 |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 380 mm | 390 mm | 430 mm | 470 mm | 510 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 110 mm | 110 mm | 110 mm | 130 mm | 130 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1138 mm | 1153 mm | 1183 mm | 1210 mm | 1240 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
