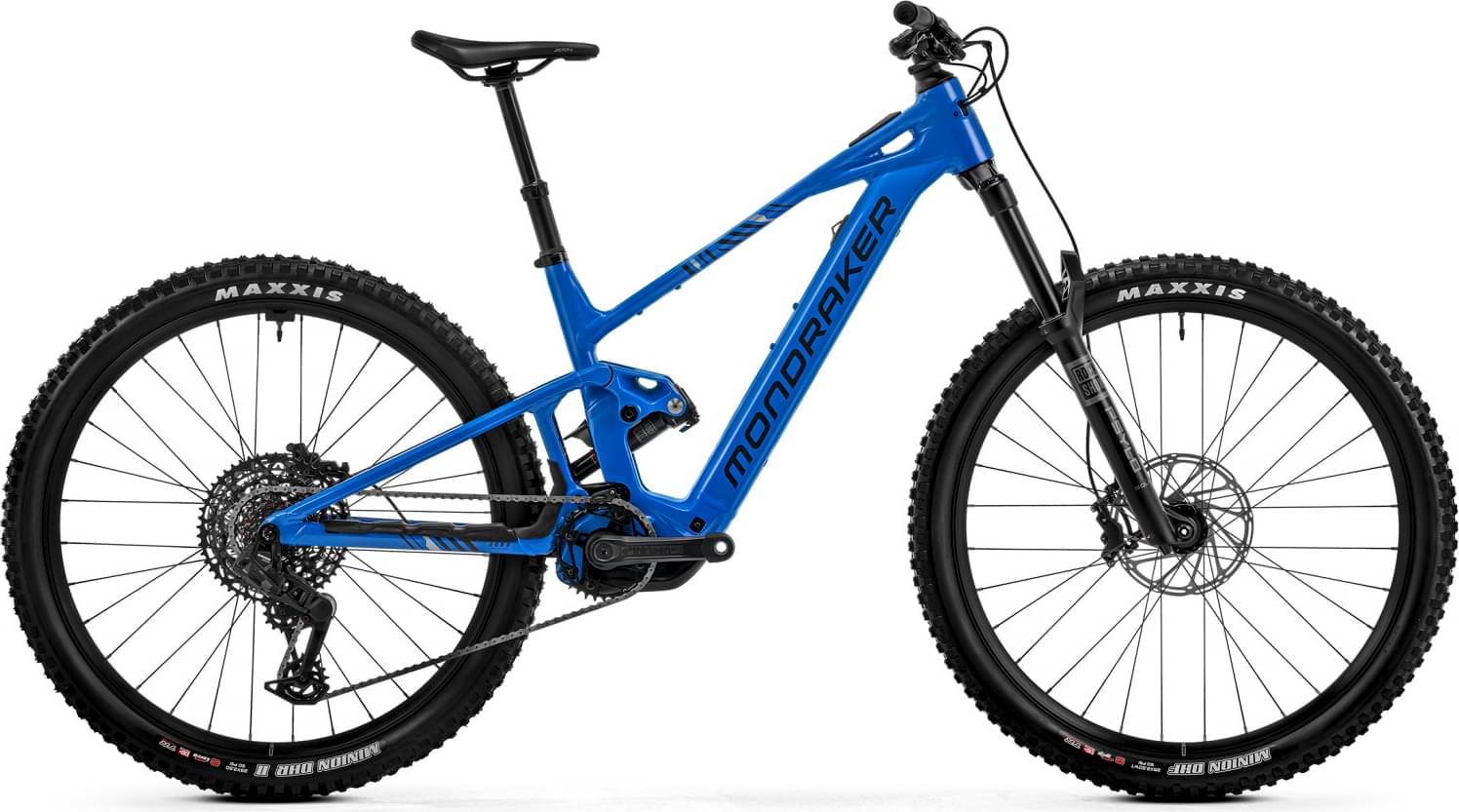

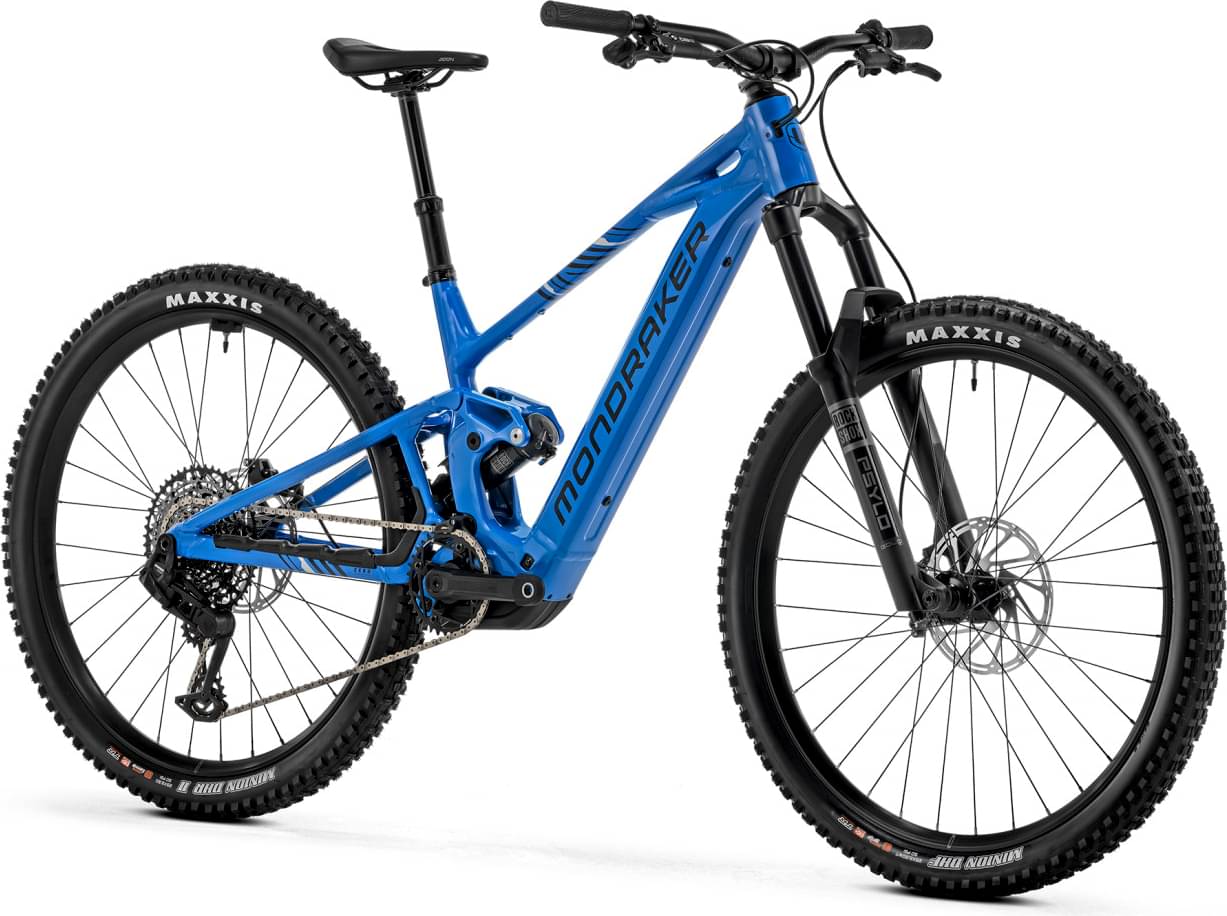

Mondraker SLY R 2025
2025 E-bike
Estimate price |
7,180$
Weight | 20.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 160mm -
Travel Rear 150mm -
Fork RockShox Psylo
-
Groupset X01 Eagle AXS -
Suspension Full -
Motor Bosch 600W 55Nm mid-drive -
Battery Bosch Compact Powertube 400Wh -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 173cm
MD
169cm - 180cm
MD/LG
175cm - 186cm
LG
180cm - 192cm
XL
188cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Alloy Stealth Evo, hydroformed tubing, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Suspension Fork
Rockshox Psylo Gold RC, 160mm, 3 Position, Debon Air, tapered steerer tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload
Rear Shock
Rockshox Deluxe Select+, 185x55mm, Trunnion top mount, 30x8mm bottom bushings
Drivetrain
Rear Derailleur
SRAM S1000 Eagle AXS T-Type, 12s
Shift Levers
SRAM Eagle AXS Pod MMX, 12s
Crank
e*Thirteen Helix Core E*Spec Plus, All sizes: 160mm, Rings: SRAM X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Chain
SRAM GX Eagle T-Type, 12s, Powerlock
Wheels
Front Hub
Mavic, Boost 15x110mm, IS 6 bolts
Rear Hub
Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, HG freehub
Rims
Mavic E-CrossRide 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
Spokes
Mavic J-bend double butted, contactless lacing
Tires
Front: Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX GRIP compound, EXO+ protection, 60TPI, folding bead, Rear: Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 60TPI, folding bead
Brakes
Brakes
Front: SRAM DB8 stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads, Rear: SRAM DB8 stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake Levers
SRAM DB8, SwingLink and lever pivot bearings, tools-free reach and contact point adjust
Cockpit
Stem
Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar
Onoff S3 1.0 6061 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.
Grips
Onoff Forest, CNC lock-on, 135mm
Headset
Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Seat
Saddle
Fizik Terra Aidon X5 145mm
Seatpost
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)
Motor & Battery
Motor
Bosch Performance Line SX (25Km/h) GEN4 SMART SYSTEM Diagonal, Wide
Battery
Bosch Compact Powertube 400Wh
Fit data

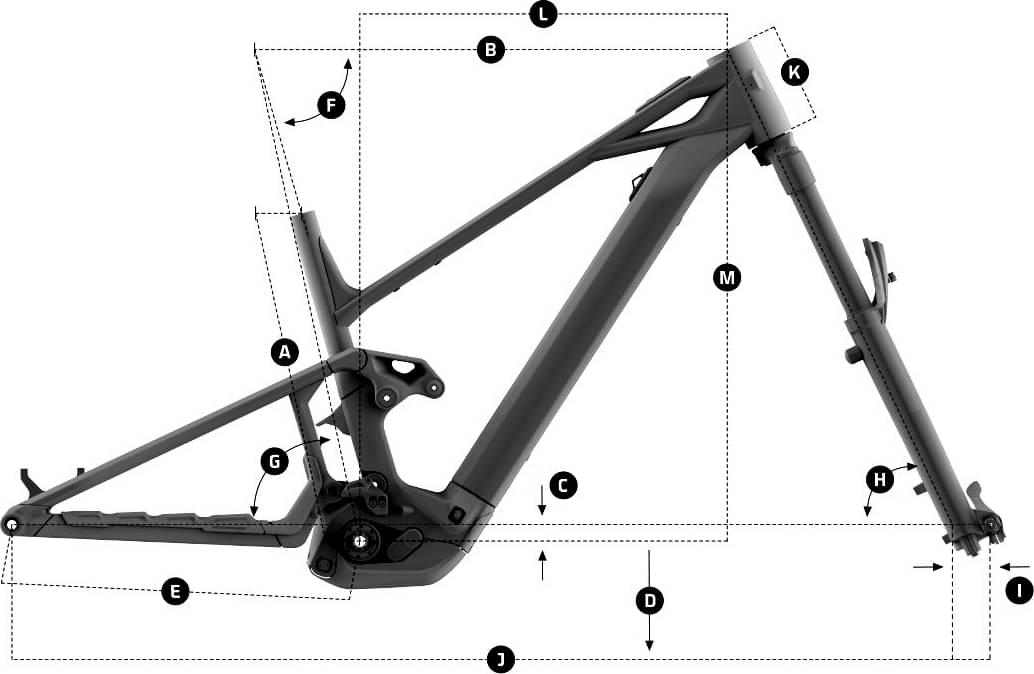

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.439 mm | 1.376 mm | 1.338 mm | 1.302 mm | 1.269 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Center | 771 mm | 796 mm | 811 mm | 836 mm | 861 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 140 mm | 134 mm | 144 mm | 143 mm | 142 mm |
| Stack | 633 mm | 633 mm | 642 mm | 651 mm | 660 mm |
| Reach | 440 mm | 460 mm | 480 mm | 500 mm | 520 mm |
| Top Tube Length | 595 mm | 615 mm | 635 mm | 660 mm | 685 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 380 mm | 410 mm | 435 mm | 460 mm | 490 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 120 mm | 120 mm | 130 mm | 140 mm | 150 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1225 mm | 1250 mm | 1265 mm | 1290 mm | 1315 mm |
| Bottom Bracket Drop | 22 mm | 22 mm | 22 mm | 22 mm | 22 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 162 cm | 169 cm | 175 cm | 180 cm | 188 cm |
| Rider Max Height | 173 cm | 180 cm | 186 cm | 192 cm | 199 cm |
