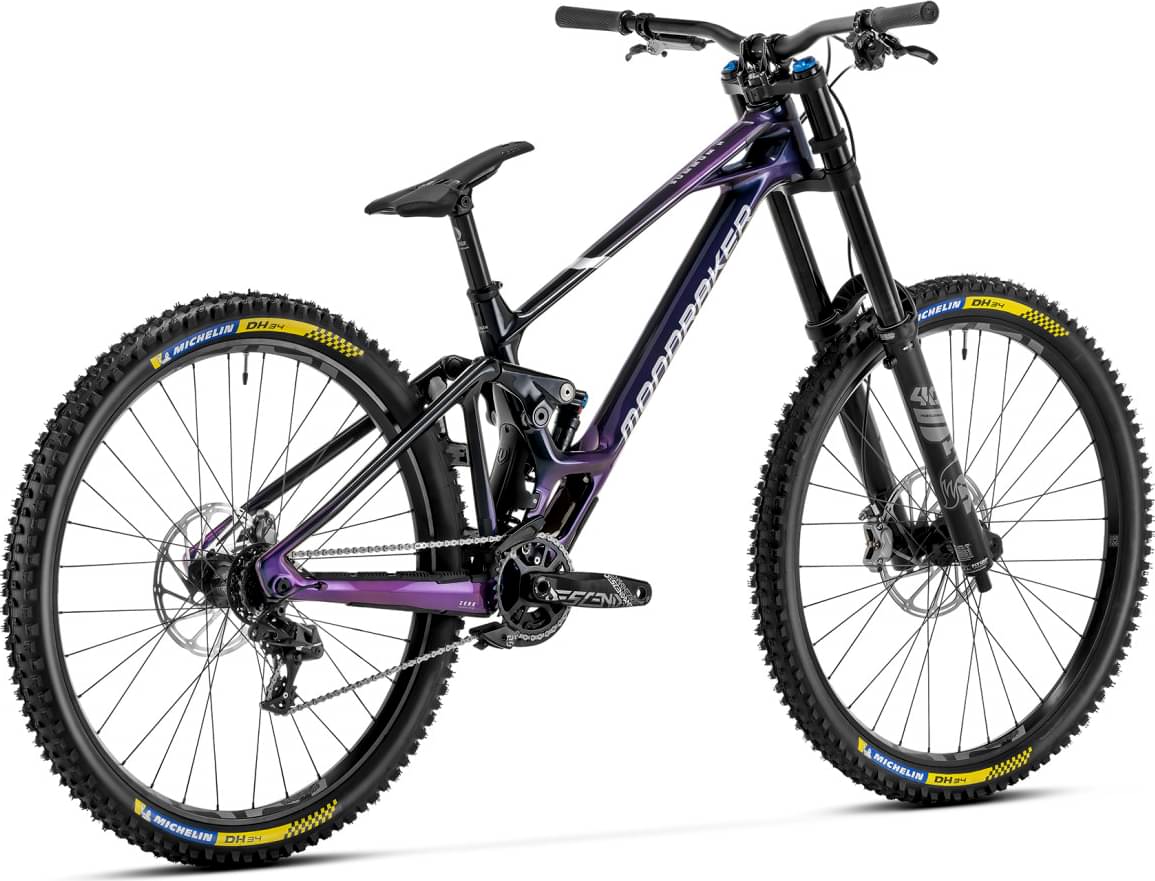

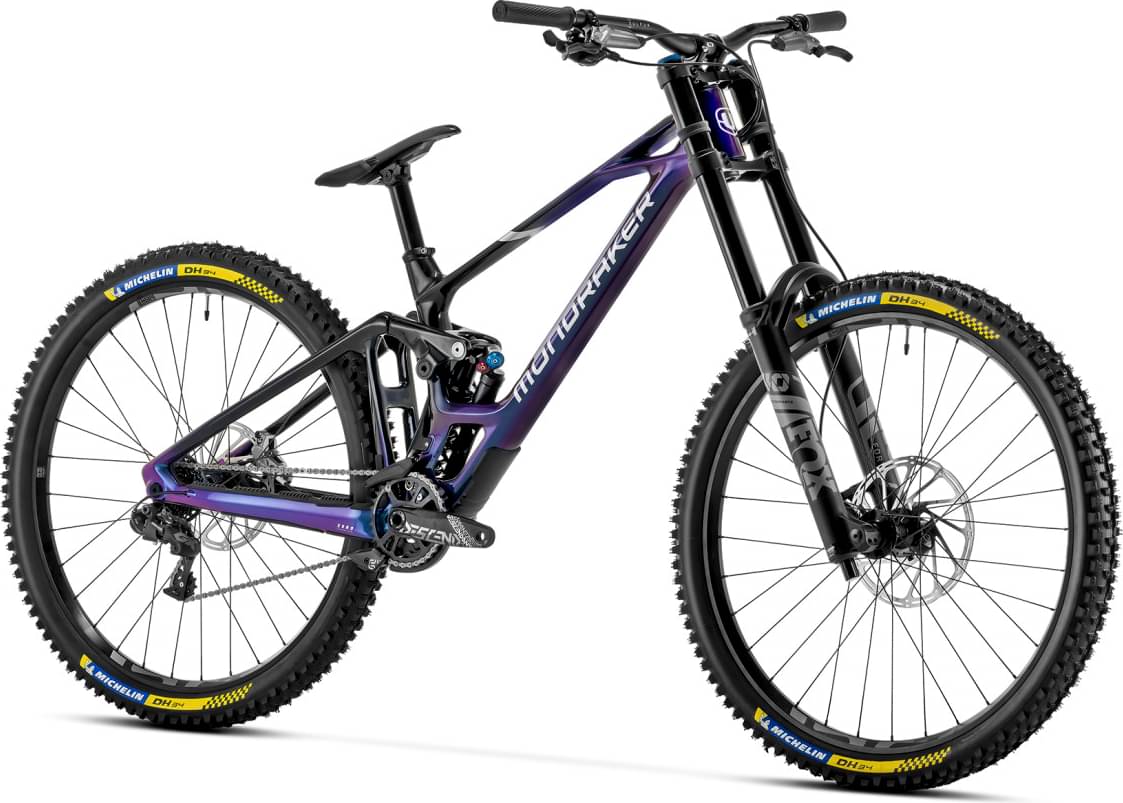

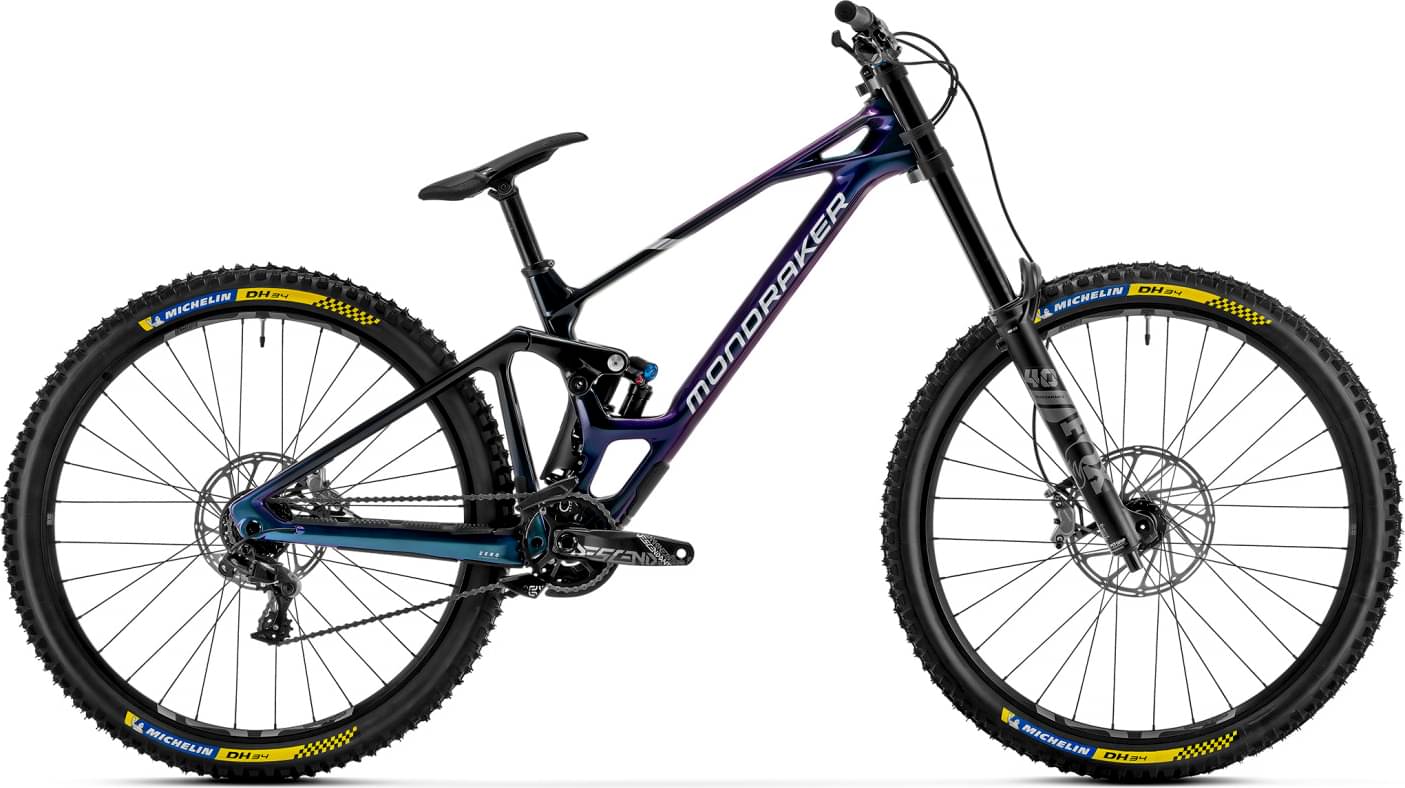

Mondraker SUMMUM CARBON R Mullet 2024
2024 Mountain
Estimate price |
10,431$
Weight | 16.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 203mm -
Travel Rear 200mm -
Fork Fox Performance Float 40
-
Groupset Truvativ Descendant, GX -
Suspension Full -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Summum Carbon Stealth Air full Carbon, Zero Suspension System, 200mm travel, Forward Geometry, Carbon Monoblock upper link, SuperBoost 12x157mm rear axle, 83mm BSA bottom bracket, HHG internal cable routing, MAX. capacity dual row Enduro bearings, shock mudguard, ISCG 05, custom frame protectors. *Optional Geometry kit.
Suspension Fork
Fox 40 29 Float FIT GRIP EVOL Performance, 203mm, air spring, 1-1/8” steerer tube, 20x110mm axle, offset 56mm. Settings: low-speed compression, low-speed rebound, air preload
Rear Shock
Fox DHX2 Performance Elite, 225x70mm. Settings: low-speed compression, low-speed rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings
Drivetrain
Rear Derailleur
SRAM GX DH, 7s, medium cage, X-actuation 1:1
Front Derailleur
E.13 Vario Compact Upper Slider,Alloy backplate,DMB (Direct mount Bashguard) Lower Slider 34-36t, ISCG 05 adjustable upper slider
Shift Levers
SRAM trigger GX DH 7s, X-actuation 1:1
Crank
SRAM Truvativ Descendant DH, DUB axle, Direct mount chain ring, 165mm CL 56´5, Rings: 34T, steel, X-SYNC
Bottom Bracket
SRAM DUB BSA, sealed bearings, 83mm
Chain
SRAM PC1110 11s, Powerlock
Wheels
Front Hub
e*thirteen Boost 20x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
Rear Hub
e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG freehub
Rims
e*thirteen LG1 Plus DH, IW29 MX Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 32 spokes
Spokes
e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
Tires
Front: Michelin DH34 29x2.4, tubeless ready, Magi-X DH compound, double-reinforced DH shield casing, wire bead, Rear: Michelin DH34 27,5x2.4, tubeless ready, Magi-X DH compound, double-reinforced DH shield casing, wire bead
Brakes
Brakes
Front: SRAM Code Bronze Stealth, oversized 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads, Rear: SRAM Code Bronze Stealth, oversized 4-piston caliper, Centerline 203mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake Levers
SRAM Code Bronze Stealth, SwingLink and lever pivot bushings, tool-free reach adjust
Cockpit
Stem
Onoff Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy, 2x6mm spacer
Handlebar
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips
Onoff Desert, 1lock-on, 135mm
Headset
Onoff Mercurium 1.5 ZS for 1-1/8” steerer tube, 41x30.15x7x45ºx45º ACB sealed bearings, geometry kit cups, external diameter 56mm
Seat
Saddle
SDG I-Fly 2.0 I-Beam, high-density PU foam, Cordura sides
Seatpost
SDG Micro I-Beam SP-751 Alloy, diameter 31.6mm, length 300mm, micro-adjustment
Fit data

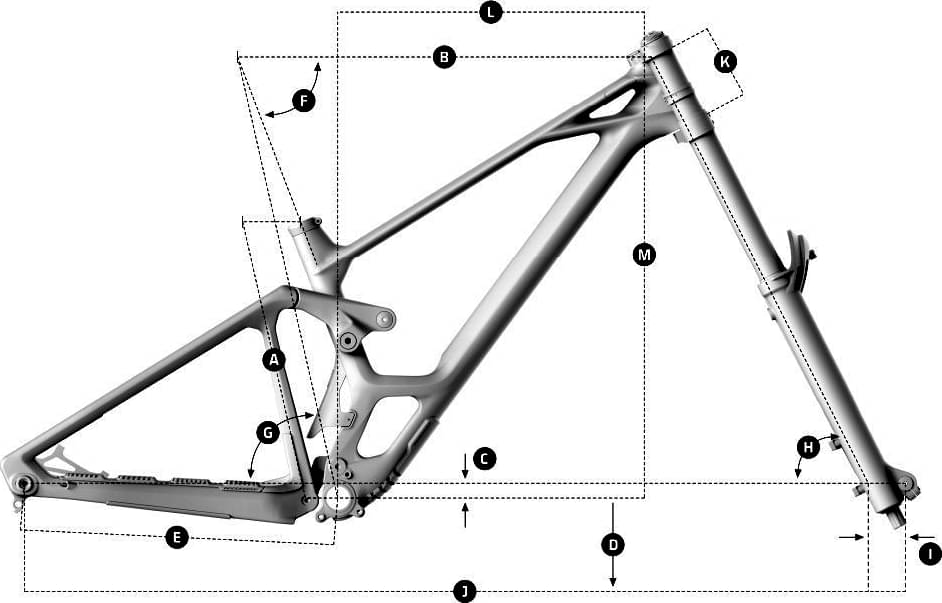

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.482 mm | 1.407 mm | 1.331 mm | 1.264 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm |
| Rake | 56 mm | 56 mm | 56 mm | 56 mm |
| Stack | 633 mm | 633 mm | 632 mm | 632 mm |
| Reach | 427 mm | 450 mm | 475 mm | 500 mm |
| Top Tube Length | 575 mm | 595 mm | 620 mm | 645 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 400 mm | 400 mm | 400 mm | 400 mm |
| Head Tube Angle | 62.5 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 110 mm | 110 mm | 112 mm | 112 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1260 mm | 1270 mm | 1295 mm | 1320 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
