Mondraker SUMMUM CARBON RR Mullet 2024
2024 Mountain
Estimate price |
5,418$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame

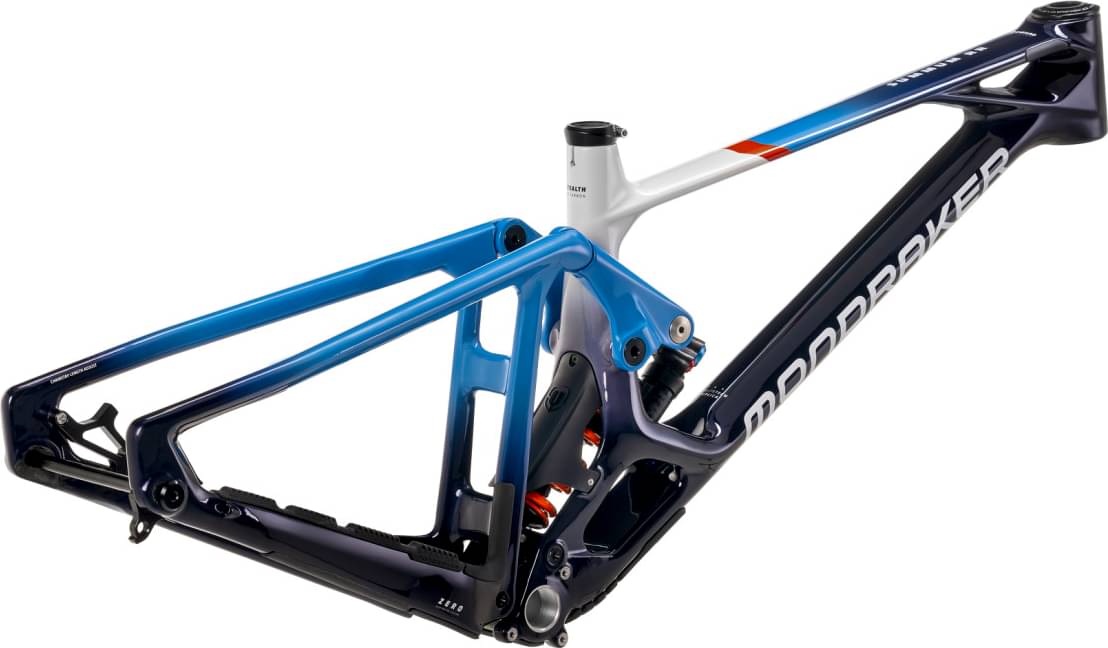

Frame
Summum Carbon Stealth Air full Carbon, Zero Suspension System, 200mm travel, Forward Geometry, Carbon Monoblock upper link, SuperBoost 12x157mm rear axle, 83mm BSA bottom bracket, HHG internal cable routing, MAX. capacity dual row Enduro bearings, shock mudguard, ISCG 05, custom frame protectors. *Geometry kit included.
Rear Shock
Fox DHX2 Factory Kashima, 225x70mm. Settings: high and low-speed compression, high and low-speed rebound, spring preload. Super light steel (SLS) spring. Trunnion top mount, 30x8mm bottom bushings
Drivetrain
Bottom Bracket
BSA, 83mm, threaded
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
Onoff Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy, 2x6mm spacer
Headset
Onoff Mercurium 1.5 ZS for 1-1/8” steerer tube, 41x30.15x7x45ºx45º ACB sealed bearings, geometry kit cups, external diameter 56mm
Fit data

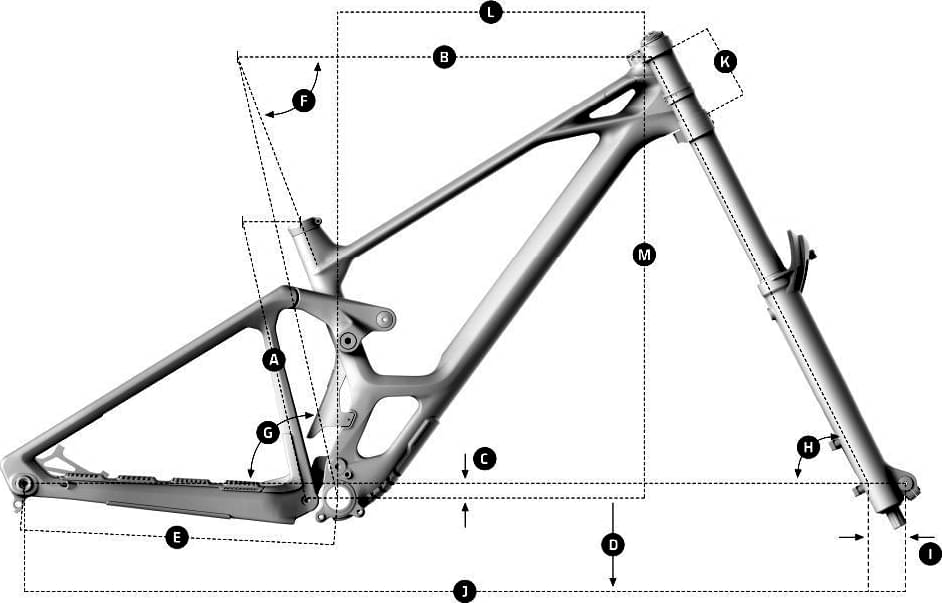

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.482 mm | 1.407 mm | 1.331 mm | 1.264 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm |
| Rake | 56 mm | 56 mm | 56 mm | 56 mm |
| Stack | 633 mm | 633 mm | 632 mm | 632 mm |
| Reach | 427 mm | 450 mm | 475 mm | 500 mm |
| Top Tube Length | 575 mm | 595 mm | 620 mm | 645 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 400 mm | 400 mm | 400 mm | 400 mm |
| Head Tube Angle | 62.5 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 110 mm | 110 mm | 112 mm | 112 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1260 mm | 1270 mm | 1295 mm | 1320 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
