Bike details
Overview
Key information split into simple groups.

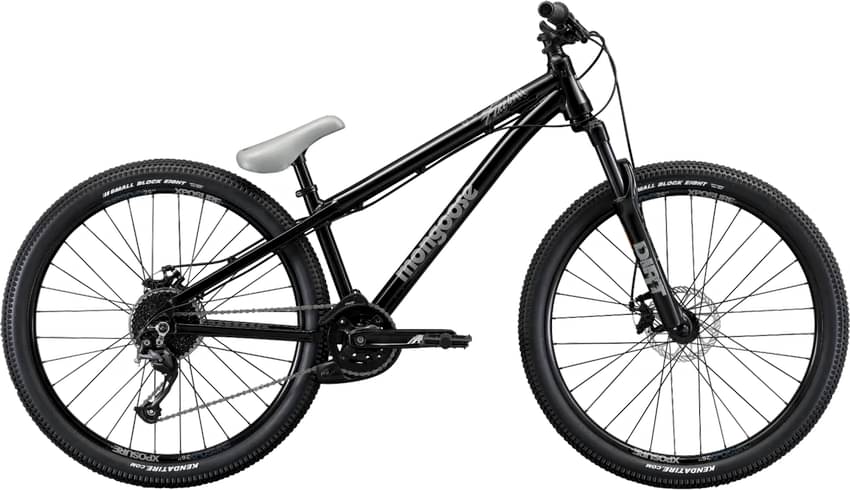

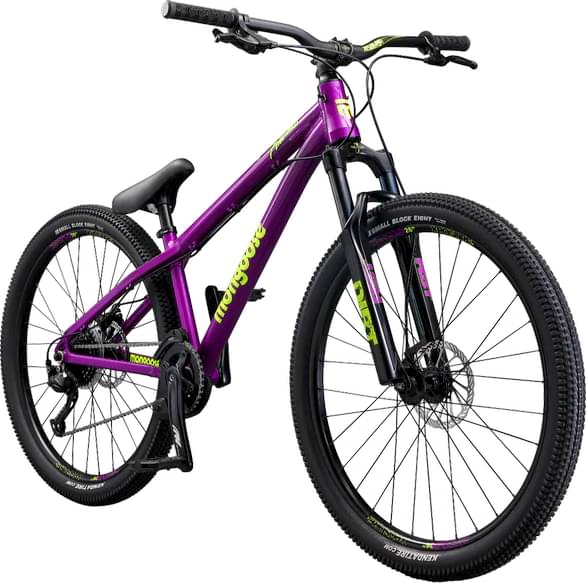

Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 100mm -
Fork RST DIRT
-
Groupset Altus -
Suspension Hardtail -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Tectonic T1, aluminum, 26" dirt jump geometry, 9 mm x 135 mm dropout, replaceable hanger

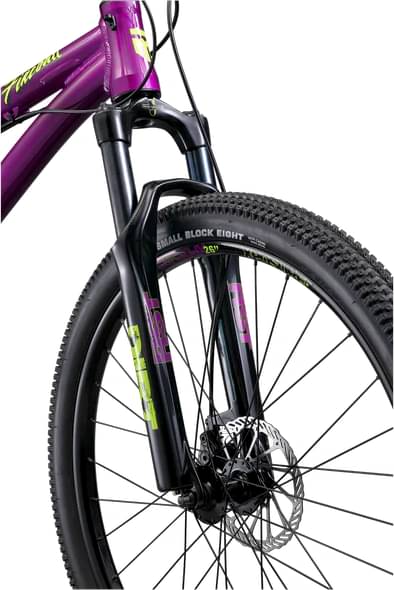

Suspension Fork
RST DIRT-T, 26", aluminum steerer, 9 mm x 100 mm, thru axle, 100 mm travel

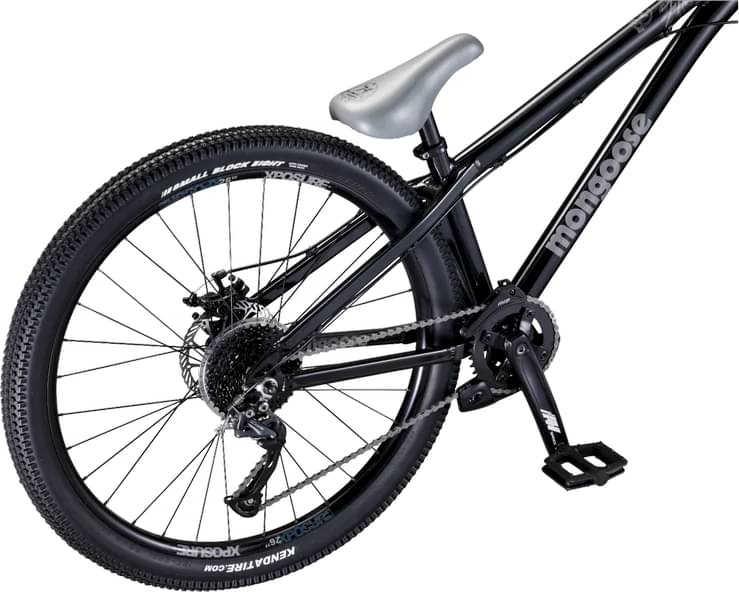

Drivetrain
Rear Derailleur
Shimano Altus RD-M2000
Shift Levers
Shimano Altus SL-2000, 9
Crank
Samox CW-1448M, aluminum, 36T
Bottom Bracket
Samox, cartridge, 3-piece, threaded 68 mm shell
Chain
KMC Z99
Pedals
Mongoose, nylon
Wheels
Rear Hub
Xposure, aluminum, ball bearing, 9 mm x 135 mm, 32H, 6-bolt
Rims
Xposure, aluminum double wall, 26 mm ID, 32H
Spokes
14G, steel
Tires
Kenda Small Block, 26 in x 2.35 in, wire bead
Brakes
Brakes
Mongoose, mechanical, aluminum, 160 mm rotor

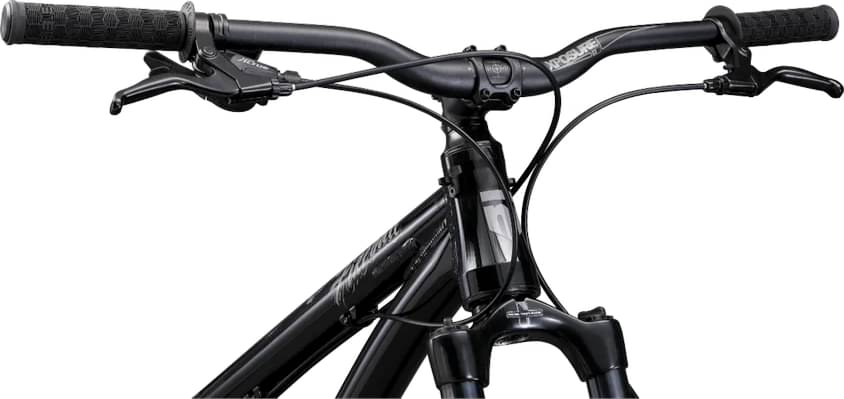

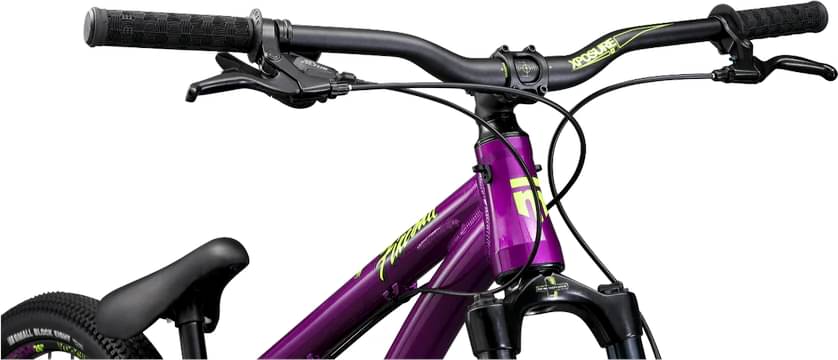

Cockpit
Stem
Xposure melt forged aluminum, threadless, 40 mm, 7°, 31.8 mm clamp
Handlebar
Xposure double-butted, aluminum, 751 mm width, 31 mm rise, 31.8 mm clamp
Grips
Mongoose Hive, single density
Headset
Threadless, ZS44/ZS44, retainer bearing
Seat

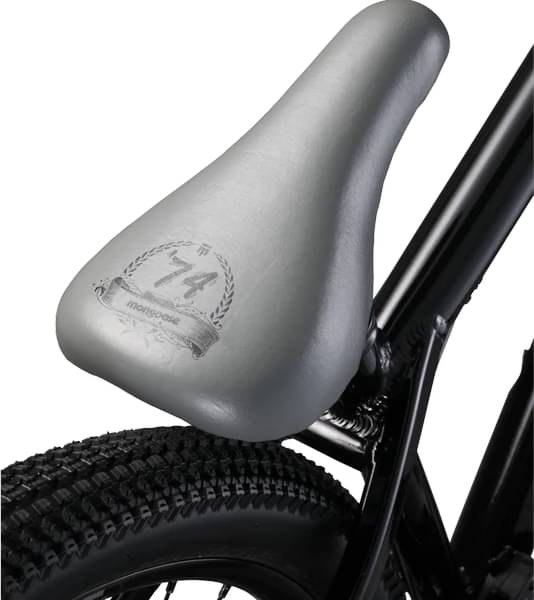

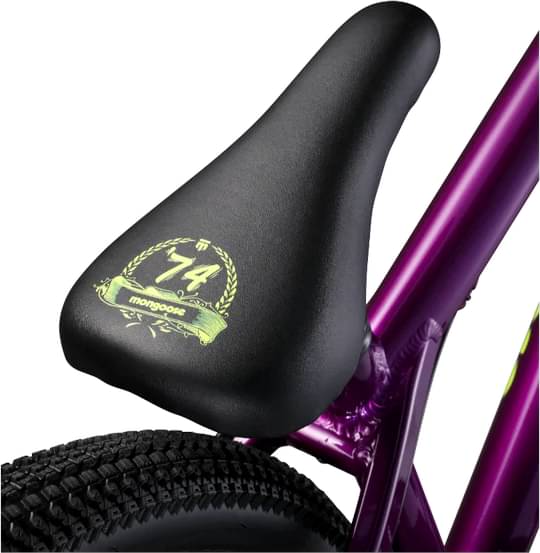

Saddle
Mongoose Dirt jump, integrated rails
Seatpost
Xposure, aluminum, 201 mm, integrated saddle, 27.2 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | Fireball SS | Fireball 9-Speed | Fireball Moto |
|---|---|---|---|
| Bottom Bracket Height | 323 mm | 323 mm | 323 mm |
| Front Center | 641 mm | 641 mm | 657 mm |
| Rake | 41 mm | 35 mm | 38 mm |
| Top Tube Length | 585 mm | 585 mm | 612 mm |
| Seat Tube Angle | 70 ° | 70 ° | 70 ° |
| Seat Tube Length | 292 mm | 292 mm | 324 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 115 mm | 115 mm | 115 mm |
| Chainstay Length | 415 mm | 415 mm | 424 mm |
| Wheelbase | 1055 mm | 1055 mm | 1080 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 20 mm |
| Standover Height | 680 mm | 680 mm | 697 mm |
| Wheels | 26" | 26" | 26" |
