Bike details
Overview
Key information split into simple groups.

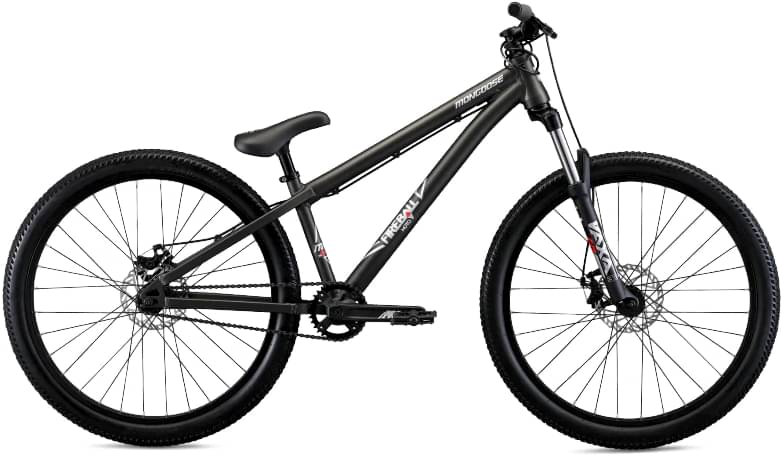

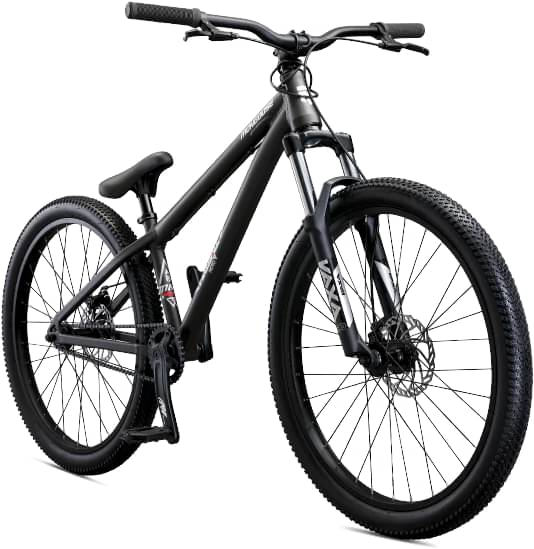

Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 100mm -
Suspension Hardtail -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Tectonic T1, aluminum, Dirt Jump geometry, horizontal dropout, tapered headtube

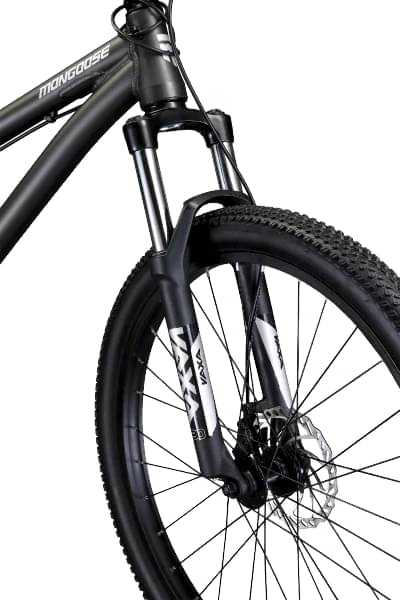

Suspension Fork
HL VAXA 30, 26", steel steerer, 3/8" x 100 mm, nutted, 100 mm travel
Drivetrain
Crank
Samox, ISIS Interface, 32T steel chainring
Bottom Bracket
Cartridge, cartridge, ISIS axle, 68mm
Chain
KMC S1
Pedals
Mongoose, nylon
Wheels
Front Hub
Aluminum, ball bearing, 3/8 in axle, 32H

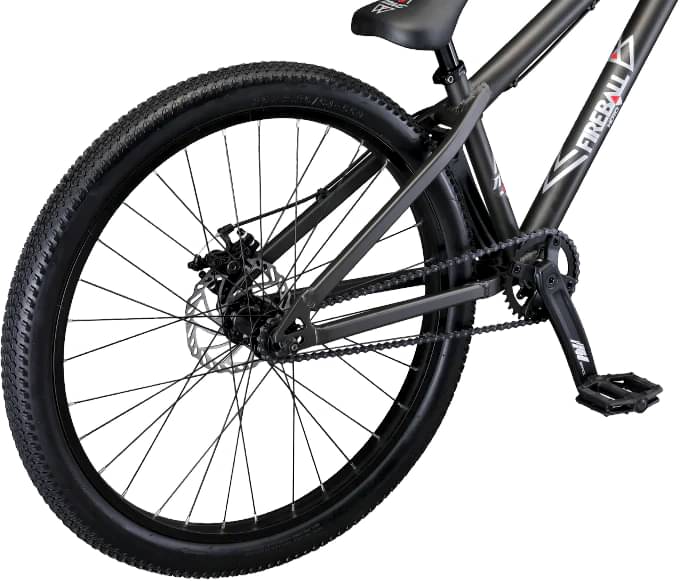

Rear Hub
Aluminum, ball bearing, 3/8 in, 32H, 135mm, disc mount
Rims
Aluminum single wall, 29mm ID, 32H
Spokes
14G, steel, chrome
Tires
26 in x 2.25 in, wire bead
Brakes
Brakes
Mechanical disc, 160mm rotor

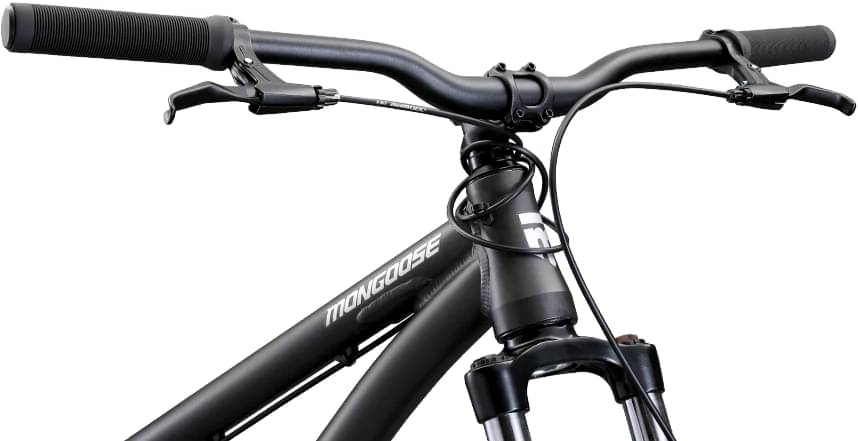

Cockpit
Stem
Mongoose, threadless, 45 mm
Handlebar
Mongoose, aluminum, 750 mm width, 30 mm rise, 31.8 mm clamp
Grips
Xposure Kraton, single density
Headset
Threadless, ZS44/ZS56, retainer bearing
Seat

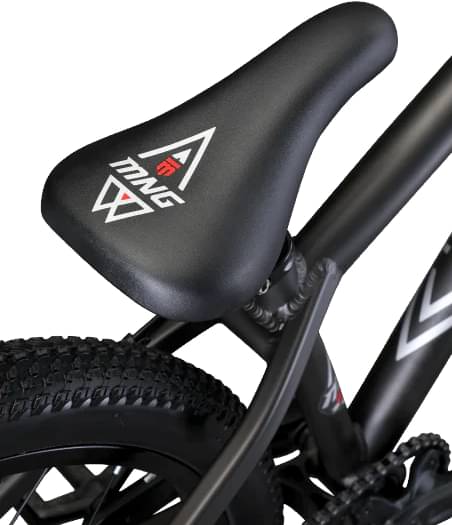

Saddle
Mongoose, steel rails
Seatpost
Aluminum, 200 mm, 27.2 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | Fireball SS | Fireball 9-Speed | Fireball Moto |
|---|---|---|---|
| Bottom Bracket Height | 323 mm | 323 mm | 323 mm |
| Front Center | 641 mm | 641 mm | 657 mm |
| Rake | 41 mm | 35 mm | 38 mm |
| Top Tube Length | 585 mm | 585 mm | 612 mm |
| Seat Tube Angle | 70 ° | 70 ° | 70 ° |
| Seat Tube Length | 292 mm | 292 mm | 324 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 115 mm | 115 mm | 115 mm |
| Chainstay Length | 415 mm | 415 mm | 424 mm |
| Wheelbase | 1055 mm | 1055 mm | 1080 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 20 mm |
| Standover Height | 680 mm | 680 mm | 697 mm |
| Wheels | 26" | 26" | 26" |
