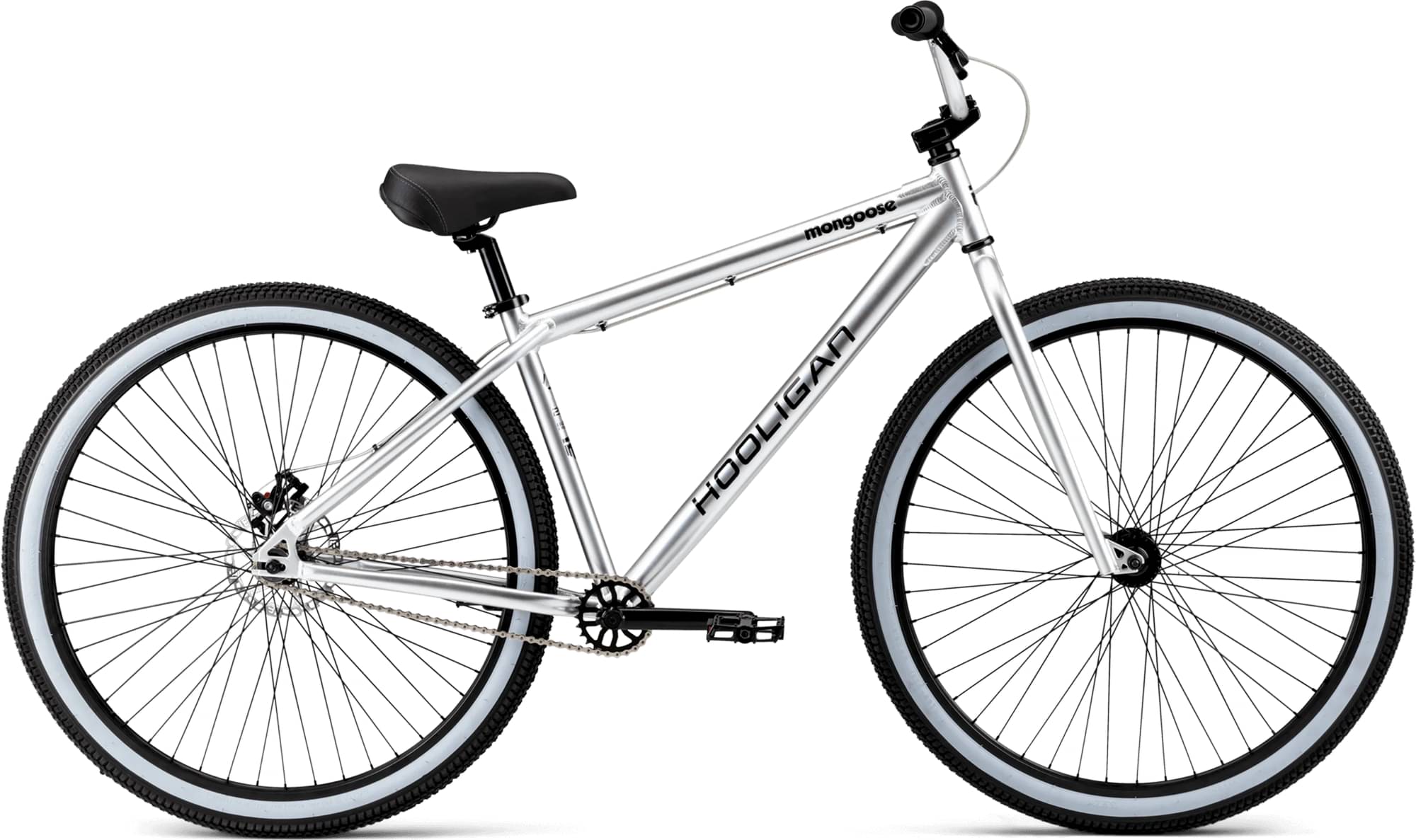

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Suspension Hardtail -
Brakes JAK Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 aluminum, horizontal dropout, 1 1/8 in headtube
Suspension Fork
Mongoose, 29", Hi-Ten steel, 100 mm bolt-on
Drivetrain
Crank
3-piece, tubular chromoly 175 mm, 25T
Bottom Bracket
Euro cartridge bearing, 8-spline axle, American, 68 mm shell
Chain
KMC S1
Pedals
Mongoose, aluminum
Wheels
Front Hub
Aluminum, ball bearing, 3/8 in axle, 48H
Rear Hub
Aluminum, ball bearing, 3/8 in axle, 48H
Rims
Mongoose, aluminum single wall, 35 mm ID, 48H, non tubeless
Spokes
14G, steel, chrome
Tires
29 in x 2.3 in, wire bead
Brakes
Brakes
JAK, mechanical disc, aluminum, 160 mm rotor
Cockpit
Stem
Mongoose, threadless top load, 48 mm
Handlebar
Mongoose, Hi-Ten steel, 29 in width, 5 in rise
Grips
Mongoose Mush, 130 mm
Headset
Threadless, 1-1/8" external, loose ball bearing
Seat
Saddle
Mongoose Dirt jump, steel rails
Seatpost
Aluminum, 250 mm, 20 mm offset, 27.2 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 29" |
|---|---|
| Stack Reach Ratio | 1.361 mm |
| Bottom Bracket Height | 309 mm |
| Front Center | 664 mm |
| Rake | 35 mm |
| Trail | 102 mm |
| Stack | 592 mm |
| Reach | 435 mm |
| Top Tube Length | 604 mm |
| Seat Tube Angle | 71 ° |
| Seat Tube Length | 432 mm |
| Head Tube Angle | 70 ° |
| Head Tube Length | 110 mm |
| Chainstay Length | 454 mm |
| Wheelbase | 1110 mm |
| Bottom Bracket Drop | 65 mm |
| Standover Height | 765 mm |
| Wheels | 29" |
