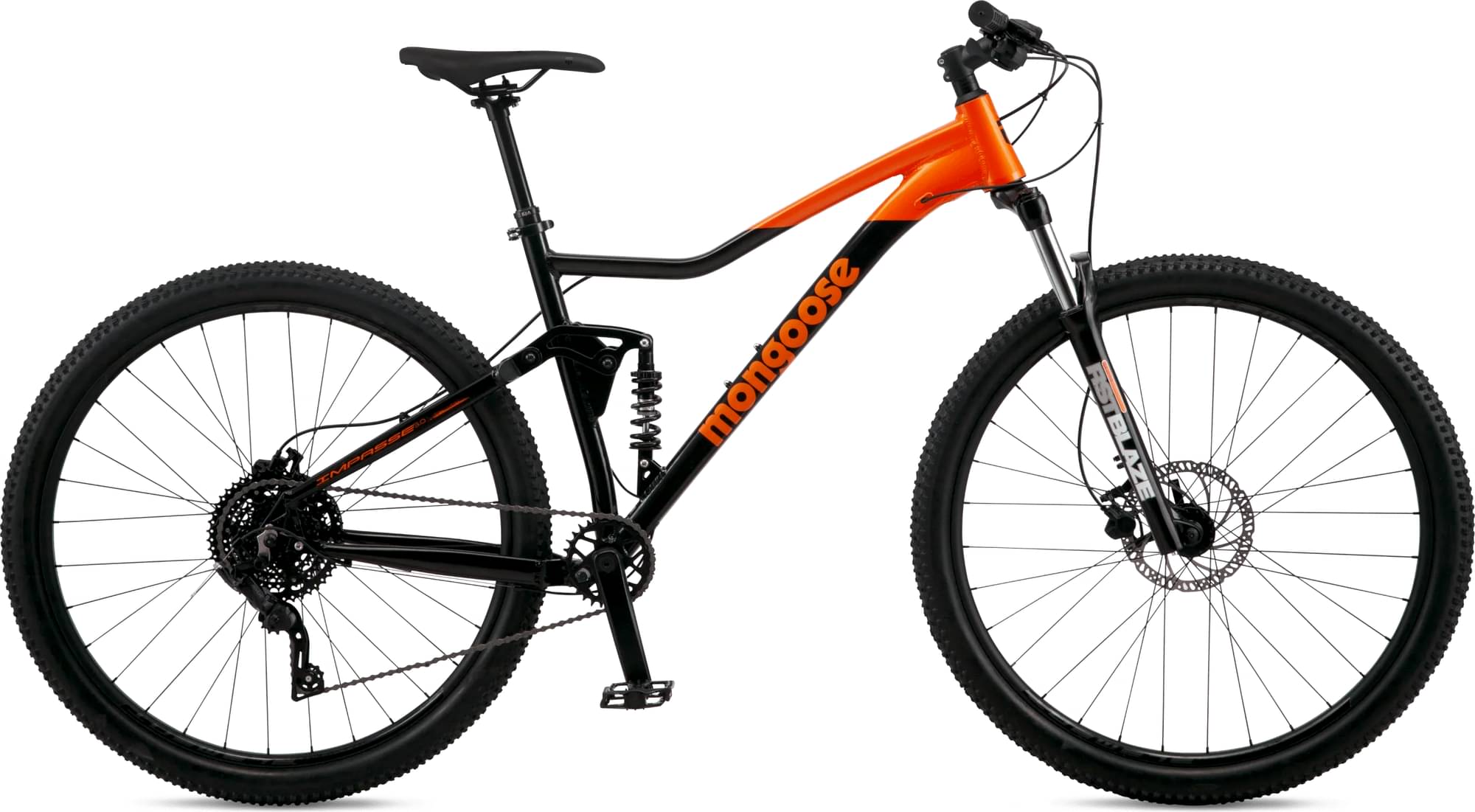

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork RST BLAZE
-
Groupset microSHIFT Advent -
Suspension Hardtail -
Drivetrain 1 × 9 -
Brakes Tektro Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum, 29" trail geometry, internal cable routing, 10 mm x 135 mm dropout, replaceable hanger, tapered headtube
Suspension Fork
RST Blaze, mechanical lockout, 100 mm travel
Drivetrain
Rear Derailleur
Microshift Advent
Shift Levers
Microshift Advent, 9
Crank
Prowheel C10Y-NW, aluminum, 30T
Bottom Bracket
Sealed cartridge, square taper, 68 mm
Chain
KMC Z9
Pedals
Mongoose, aluminum
Wheels
Front Hub
KT, aluminum, 9 mm x 100 mm QR, 32H, 6-bolt
Rear Hub
KT, aluminum, 10 mm x 135 mm QR, 32H, 6-bolt
Rims
Mongoose, aluminum, double wall, 26 mm ID, 32H
Spokes
14G, steel, black
Tires
WTB Ranger Comp, 29 in x 2.25 in, wire bead
Brakes
Brakes
Tektro HD-M275, hydraulic disc, aluminum, 180 mm front, 160 mm rear rotor
Cockpit
Stem
Aluminum, threadless, 70 mm, 7° rise, 31.8 mm clamp
Handlebar
Mongoose, aluminum, 760 mm width, 15 mm rise, 31.8 mm clamp
Grips
Mongoose, lock-on
Headset
Threadless, ZS44 / ZS56 w/reducer, loose ball bearing
Seat
Saddle
Mongoose MTB, steel rails
Seatpost
KS Exaform KSP900-I, aluminum, 400 mm, 125 mm travel, internal with remote, 30.9 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Stack Reach Ratio | 1.304 mm | 1.261 mm |
| Bottom Bracket Height | 339 mm | 339 mm |
| Front Center | 752 mm | 776 mm |
| Rake | 46 mm | 46 mm |
| Trail | 98 mm | 102 mm |
| Stack | 609 mm | 618 mm |
| Reach | 467 mm | 490 mm |
| Top Tube Length | 610 mm | 635 mm |
| Seat Tube Angle | 76.8 ° | 76.8 ° |
| Seat Tube Length | 430 mm | 460 mm |
| Head Tube Angle | 68 ° | 68 ° |
| Head Tube Length | 110 mm | 120 mm |
| Chainstay Length | 450 mm | 450 mm |
| Wheelbase | 1200 mm | 1224 mm |
| Bottom Bracket Drop | 35 mm | 35 mm |
| Standover Height | 727 mm | 751 mm |
| Wheels | 29" | 29" |
